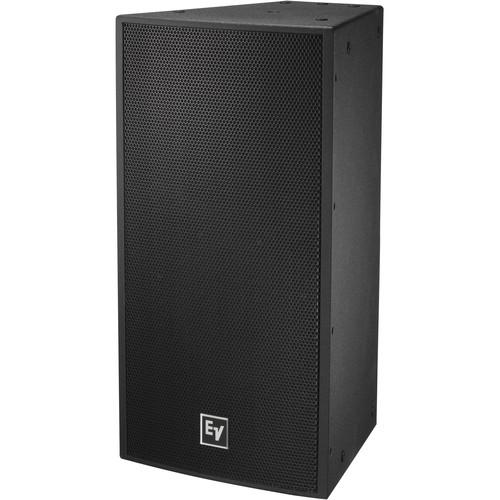

User Manual for Electro-Voice EVF-1122D Single 12" 2-Way Full-Range Indoor Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1122D Single 12" 2-Way Full-Range
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EVF-1122D Single 12" 2-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

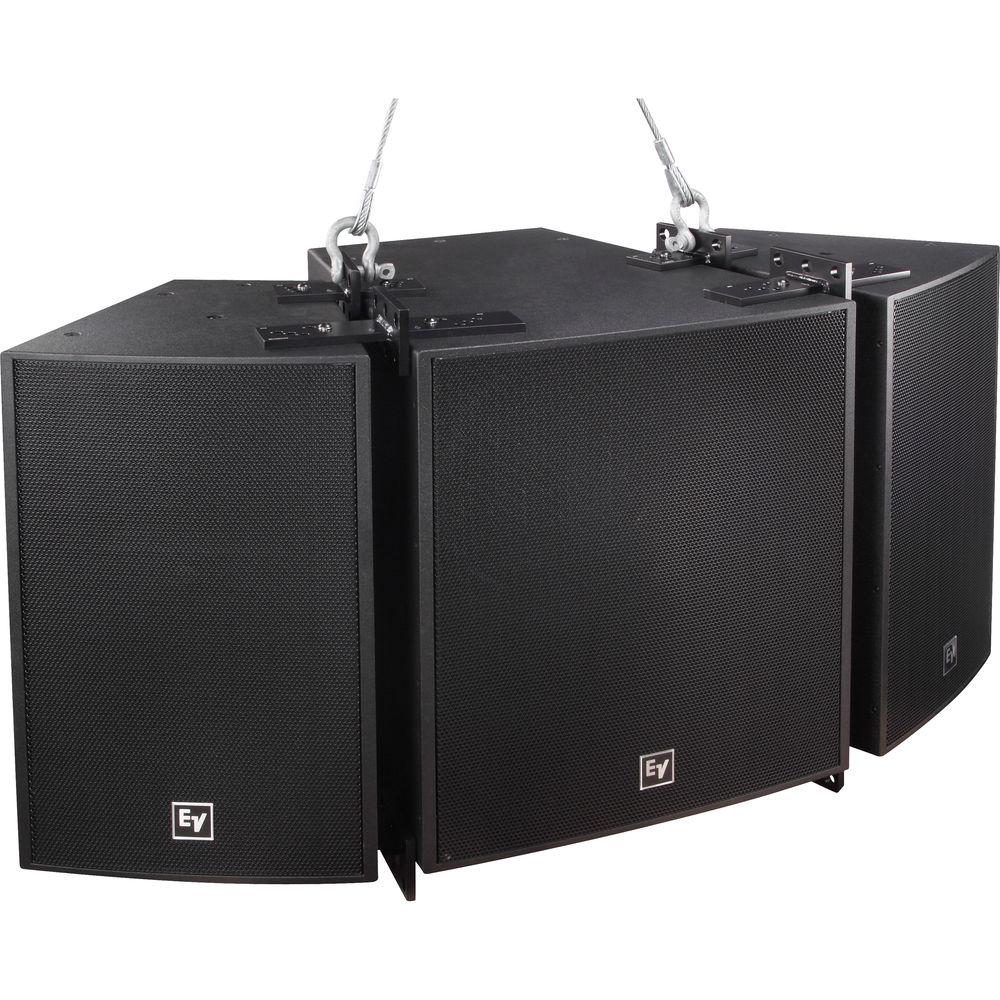

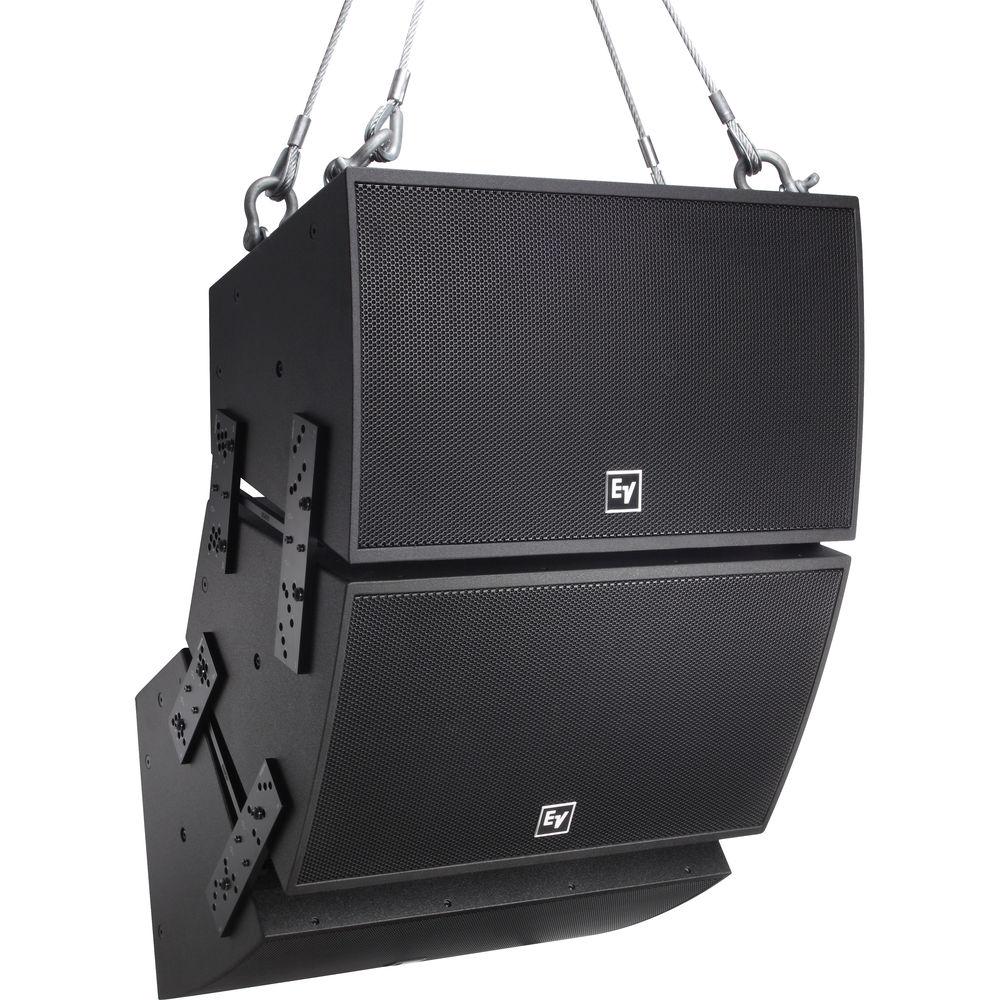

Product description The black EVF-1122D Single 12” 2-Way Full-Range Indoor Loudspeaker System from Electro-Voice is can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the high-output DH7N 3” titanium compression driver, coupled with a constant directivity 60° x 40° waveguide. The DVX3121A 12” woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The loudspeaker system is enclosed in a 13-ply birch with EVCoat for protection from elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. The input panel includes dual 4-pin 10 AWG Phoenix connectors. An externally accessible jumper selects passive or active operation. -
- DH7N 3” diaphragm, 1.4” exit pure titanium compression driver
- DVX3121A 12” LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern of 60° x 40° constant directivity 12” rotatable waveguide
- 97 dB sensitivity, 131 dB maximum SPL
- 22 x M10 threaded suspension points
UPC: 701001113699 In the Box Electro-Voice EVF-1122D Single 12" 2-Way Full-Range Indoor Loudspeaker System (EVCoat-Finish, Black) Limited 3-Year Warranty User Manual PDF 5.3mbdbqqcxafwxvsvvdzbw Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122D Single 12" 2-Way Full-Range Indoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122D Specs | Frequency Response | -3 dB: 57 Hz to 18 kHz | | Frequency Range | -10 dB: 49 Hz to 21 kHz | | Coverage | Rotatable: 60° x 40° | | Frequency | Receiver High Pass: 65 Hz | | Passive Crossover Frequency | 1300 Hz | | Axial Sensitivity | 97 dB (1 W @ 3.28' / 1 m)
LF Transducer - DVX3121A: 98 dB (1 W @ 3.28' / 1 m)
HF Transducer - DH7N: 112 dB (1 W @ 3.28' / 1 m) | | SPL | Maximum Calculated: 131 dB
LF Transducer - DVX3121A: 131 dB
HF Transducer - DH7N: 137 dB | | Power Handling | Passive: 600 W continuous, 2400 W peak
LF Transducer - DVX3151A: 500 W continuous, 2000 W peak
HF Transducer - DH7N: 75 W continuous, 300 W peak | | Impedance | 8 Ohms (nominal), 6 Ohms (minimum)
LF Transducer - DVX3151A: 8 Ohms (nominal), 7.2 Ohms (minimal)
HF Transducer - DH7N: 8 Ohms (nominal), 6 Ohms (minimal) | | Connectors | Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals | | Enclosure | 13-ply birch fiberglass-finished | | Grille | 16 GA powder-coated galvanneal with rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 16.0 x 16.3" (76.8 x 40.6 x 41.3 cm) | | Weight | 65.5 lb (29.7 kg) |
