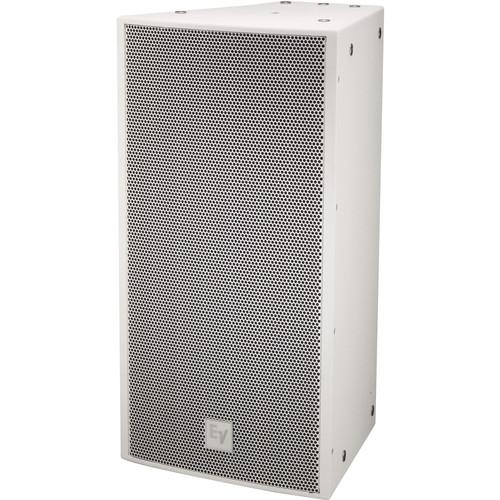

Product description The white EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System from Electro-Voice features a 2” ND2B titanium HF compression driver and uses the rotatable Constant-directivity waveguide. It offers a coverage pattern of 60 to 120° and peak power output of 2000W. The trapezoidal enclosure is constructed out of weather-resistant birch and coated with EVCoat for protection from the elements.
The loudspeaker system’s acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF and EVH series. It comes with Phoenix-type connectors. An externally accessible jumper also selects passive or active operation and an optional 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. - 4th-order passive crossover with HF protection
- Trapezoidal 13-ply birch enclosure in EVCoat finish
UPC: 800549301596 In the Box Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System (EVCoat, White) Limited 5-Year Warranty User Manual PDF 5.3mbxxetrdrrvuezbrbyaerctuutry Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122S/126 Specs | Active or Passive | Passive | | Frequency Response | -3 dB: 58 Hz to 16 kHz
-10 dB: 49 Hz to 19 kHz | | Frequency | Recommended High-Pass Frequency: 65 Hz | | Power Capacity | Continuous / Program / Peak: 500 W / 1000 W / 2000 W | | Maximum Sound Pressure Level (SPL) | @3.28' / 1 m: 131 dB | | Nominal Sensitivity | 1 W / 3.28' (1 m): 98 dB | | Coverage | Nominal (-6 dB)
Horizontal: 120°
Vertical: 60° | | Impedance | Nominal (Passive): 8 Ohms
Minimum: 6 Ohms | | Crossover | 1450 Hz | | Low Frequency Driver | SMX2121, 12" (305 mm) | | High Frequency Driver | ND2B, 2" (51 mm) Diaphragm compression driver | | Enclosure Material | 13 Ply weather-resistant birch | | Grille | 16 GA Galvanneal, powdercoat, with screen behind | | Input Connections | Phoenix / Euroblock style screw terminals | | Suspension | 22 x M10 threaded points | | Dimensions (H x W x D) | 30.26 x 16 x 16.27" (768.6 x 406.3 x 413.3 mm) | | Weight | 63.05 lb (28.6 kg) |
