User Manual for Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1122S 126 12" 2-Way Full-Range
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EVF-1122S 126 12" 2-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

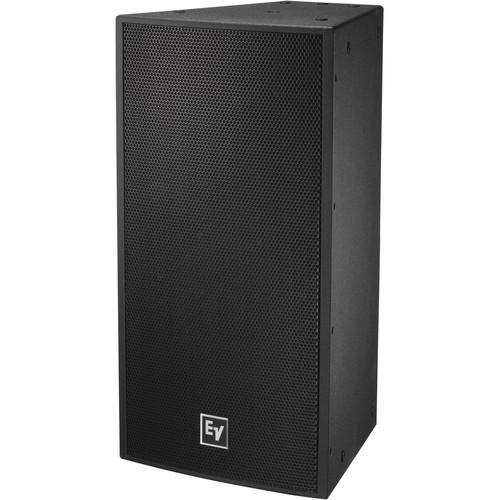

Product description The black EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System from Electro-Voice features a 2” ND2B titanium HF compression driver and uses the rotatable Constant-directivity waveguide. It offers a coverage pattern of 60 to 120° and peak power output of 2000W. The trapezoidal enclosure is constructed out of weather-resistant birch and coated with EVCoat for protection from the elements.
The loudspeaker system’s acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF and EVH series. It comes with Phoenix-type connectors. An externally accessible jumper also selects passive or active operation and an optional 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. - 4th-order passive crossover with HF protection
- Trapezoidal 13-ply birch enclosure in EVCoat finish
UPC: 800549301589 In the Box Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System (EVCoat, Black) Limited 5-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122S 126 12" 2-Way Full-Range Passive Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122S/126 Specs | Active or Passive | Passive | | Frequency Response | -3 dB: 58 Hz to 16 kHz
-10 dB: 49 Hz to 19 kHz | | Frequency | Recommended High-Pass Frequency: 65 Hz | | Power Capacity | Continuous / Program / Peak: 500 W / 1000 W / 2000 W | | Maximum Sound Pressure Level (SPL) | @3.28' / 1 m: 131 dB | | Nominal Sensitivity | 1 W / 3.28' (1 m): 98 dB | | Coverage | Nominal (-6 dB)
Horizontal: 120°
Vertical: 60° | | Impedance | Nominal (Passive): 8 Ohms
Minimum: 6 Ohms | | Crossover | 1450 Hz | | Low Frequency Driver | SMX2121, 12" (305 mm) | | High Frequency Driver | ND2B, 2" (51 mm) Diaphragm compression driver | | Enclosure Material | 13 Ply weather-resistant birch | | Grille | 16 GA Galvanneal, powdercoat, with screen behind | | Input Connections | Phoenix / Euroblock style screw terminals | | Suspension | 22 x M10 threaded points | | Dimensions (H x W x D) | 30.26 x 16 x 16.27" (768.6 x 406.3 x 413.3 mm) | | Weight | 63.05 lb (28.6 kg) | | | | Package Weight | 71.0 lb | | Box Dimensions (LxWxH) | 31.5 x 22.5 x 21.0" |
