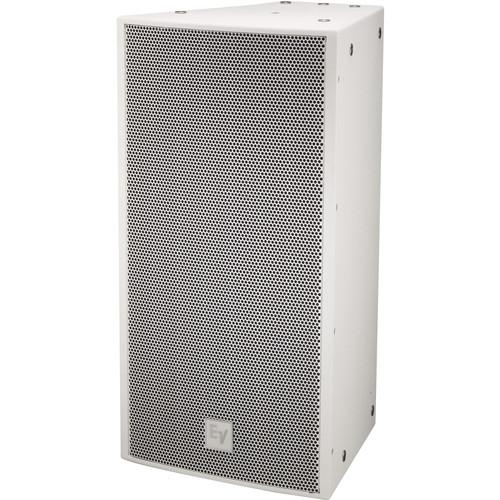

Product description The white EVF-1122S Single 12” 2-Way Full-Range Indoor Loudspeaker System from Electro-Voice can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the high-output ND2B 2” titanium compression driver, coupled with a constant directivity 90° x 40° waveguide. The SMX2121 12” woofer uses FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The trapezoidal enclosure of the loudspeaker is constructed of 13-ply birch, and coated with EVCoat for maximum protection from external elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. The input panel includes dual 4-pin 10 AWG Phoenix connectors. An externally accessible jumper selects passive or active operation. -
- ND2B 2” diaphragm, 1.4” exit pure titanium compression driver
- SMX2121 12” LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern of 90° x 40° constant directivity 12” rotatable waveguide
- 98 dB sensitivity, 131 dB maximum SPL
- 22 x M10 threaded suspension points
UPC: 800549301411 In the Box Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Indoor Loudspeaker System (EVCoat-Finish, White) Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Indoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122S Specs | Frequency Response | -3 dB: 58 Hz to 16 kHz | | Frequency Range | -10 dB: 49 Hz to 19 kHz | | Coverage | Rotatable: 90° x 40° | | Frequency | Receiver High Pass: 65 Hz | | Passive Crossover Frequency | 1300 Hz | | Axial Sensitivity | 98 dB (1 W / 3.28') | | SPL | 131 dB | | Power Handling | 500 W Continuous, 2000 W Peak | | Transducer | LF: SMX2121, 12" (31 cm) driver
HF: ND2B, 2.0" (5.1 cm) diaphragm compression driver | | Crossover Frequency | 1450 Hz | | Impedance | Nominal: 8 Ohms
Minimum: 6 Ohms | | Connectors | 2 x 4-contact 10 AWG Phoenix / EuroBlock style screw terminal | | Enclosure | 13 Ply Weather Resistant Birch | | Grille | 16 GA Galvanneal, powder coated, with rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 16.0 x 16.3" (76.8 x 40.6 x 41.3 cm) | | Weight | 63.1 lb (28.6 kg) |
