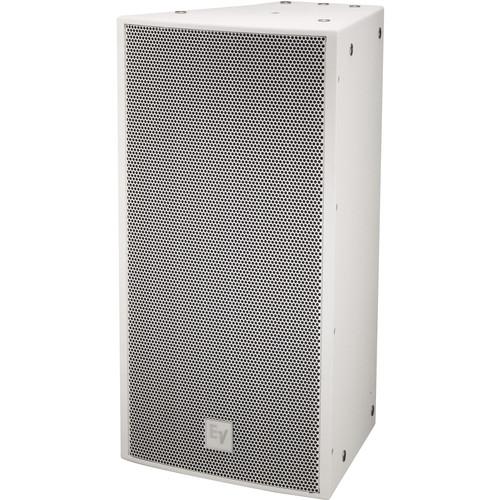

Product description The white EVF-1122S Single 12” 2-Way Full-Range Outdoor Loudspeaker System from Electro-Voice can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the high-output ND2B 2” titanium compression driver, coupled with a constant directivity 120° x 60° waveguide. The SMX2121 12” woofer is developed with FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The trapezoidal enclosure of the loudspeaker is constructed out of weather-resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the EVF and EVH series. The input panel provides two 4-pin 10 AWG Phoenix connectors and a gland nut cover plate for weatherizing. An externally accessible jumper selects passive or active operation. -
- ND2B 2” diaphragm, 1.4” exit pure titanium compression driver
- SMX2121 12” LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern of 120° x 60° constant directivity 12” rotatable waveguide
- 98 dB sensitivity, 131 dB maximum SPL
- 22 x M10 threaded suspension points
- 4-contact 10 AWG Phoenix-style connector
- Includes gland nut with input panel cover plate for weather-resistance
UPC: 800549301633 In the Box Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Outdoor Loudspeaker System (Weather-Resistant Fiberglass-Finish, White) Gland Nut with Input Panel Cover Plate Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Outdoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122S Specs | Frequency Response | -3 dB: 58 Hz to 16 kHz | | Frequency Range | -10 dB: 49 Hz to 19 kHz | | Coverage | Rotatable: 120° x 60° | | Frequency | Receiver High Pass: 65 Hz | | Passive Crossover Frequency | 1300 Hz | | Axial Sensitivity | 98 dB (1 W / 3.28') | | SPL | 131 dB | | Power Handling | 500 W Continuous, 2000 W Peak | | Transducer | LF: SMX2121, 12" (31 cm) driver
HF: ND2B, 2.0" (5.1 cm) diaphragm compression driver | | Crossover Frequency | 1450 Hz | | Impedance | Nominal: 8 Ohms
Minimum: 6 Ohms | | Connectors | 2 x 4-contact 10 AWG Phoenix / EuroBlock style screw terminal | | Enclosure | 13-ply weather resistant birch | | Grille | 18 GA stainless steel with hydrophobic cloth and rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 16.00 x 16.27" (768.6 x 406.3 x 413.3 cm) | | Weight | 63.1 lb (28.6 kg) |
