User Manual for Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Semi-Outdoor Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1122S Single 12" 2-Way Full-Range
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EVF-1122S Single 12" 2-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

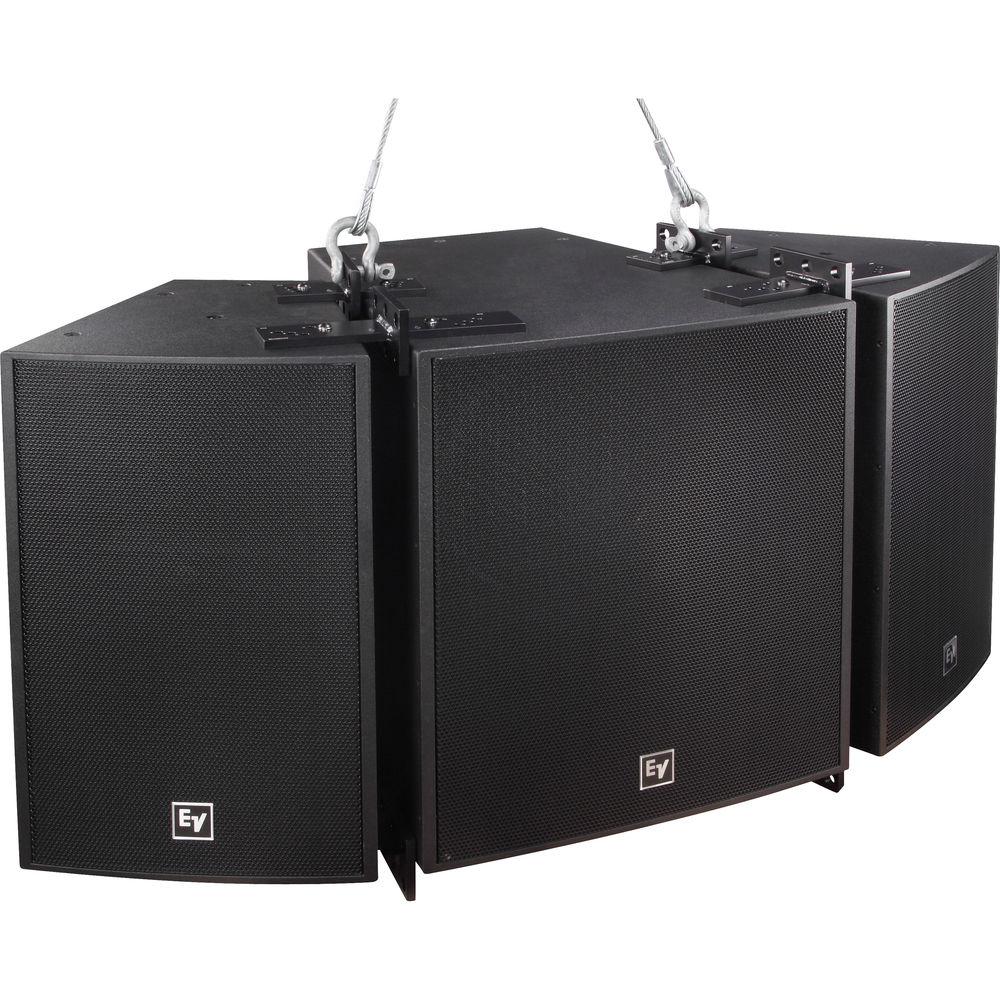

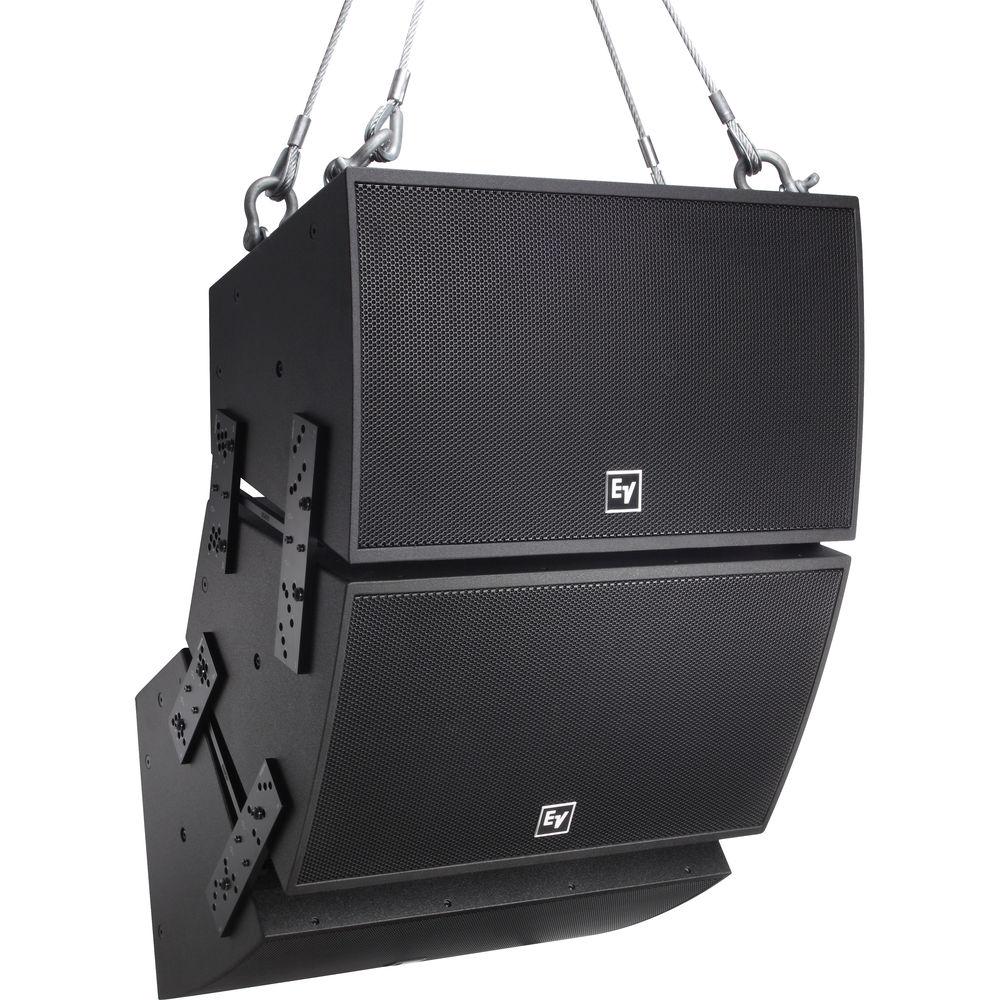

Product description The black EVF-1122S Single 12” 2-Way Full-Range Semi-Outdoor Loudspeaker System from Electro-Voice can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the high-output ND2B 2” titanium compression driver, coupled with a constant directivity 60° x 40° waveguide. The SMX2121 12” woofer uses FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The trapezoidal enclosure of the loudspeaker is constructed of 13-ply birch, and coated with EVCoat for maximum protection from external elements. This PI-weatherized loudspeaker system is rated for outdoor exposure only in protected areas such as under a roof overhang. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. The input panel includes dual 4-pin 10 AWG Phoenix connectors. An externally accessible jumper selects passive or active operation. -
- ND2B 2” diaphragm, 1.4” exit pure titanium compression driver
- SMX2121 12” LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern of 60° x 40° constant directivity 12” rotatable waveguide
- 98 dB sensitivity, 131 dB maximum SPL
- 22 x M10 threaded suspension points
- Includes gland-nut cover plate for weatherizing
- Stainless-steel grille
In the Box Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Semi-Outdoor Loudspeaker System (Weather-Resistant PI-Finish, Black) Gland Nut Input Panel Cover Plate Limited 3-Year Warranty User Manual PDF 5.3mbxwueyfwczqdbwftvedvveewadwyq Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1122S Single 12" 2-Way Full-Range Semi-Outdoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1122S Specs | Frequency Response | -3 dB: 58 Hz to 16 kHz | | Frequency Range | -10 dB: 49 Hz to 19 kHz | | Coverage | Rotatable: 60° x 40° | | Frequency | Receiver High Pass: 65 Hz | | Axial Sensitivity | 98 dB (1 W / 3.28') | | SPL | 131 dB | | Power Handling | 500 W Continuous, 2000 W Peak | | Transducer | LF: SMX2121, 12" (31 cm) driver
HF: ND2B, 2.0" (5.1 cm) diaphragm compression driver | | Crossover Frequency | 1450 Hz | | Impedance | Nominal: 8 Ohms
Minimum: 6 Ohms | | Connectors | 2 x 4-contact 10 AWG Phoenix / EuroBlock style screw terminal | | Enclosure | 13-ply weather resistant birch | | Grille | Stainless Steel with Hydrophobic Cloth | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 16.00 x 16.27" (768.6 x 406.3 x 413.3 mm) | | Weight | 63.1 lb (28.6 kg) |
