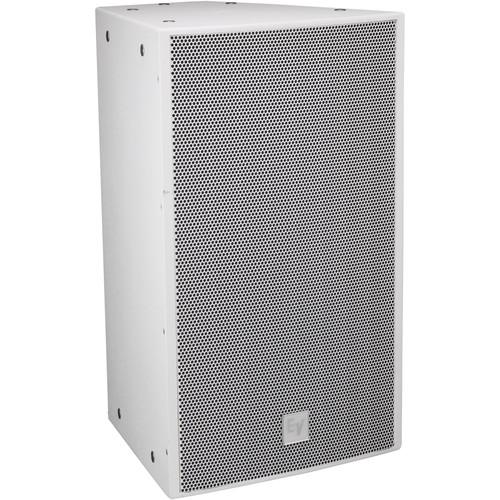

Product description The white EVF-1152D Single 15” 2-Way Full-Range Indoor Loudspeaker System from Electro-Voice is a high-power, 2-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the DH7N 3” titanium compression driver, coupled to a Constant Directivity 90 x 90° waveguide. The system also uses DVX3151A 15” woofer, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24 dB per octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The loudspeaker system is enclosed in a 13-ply birch enclosure and coated with EVCoat for protection from elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. A 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.
The system offers 7 horn patterns with an assortment of low-frequency and subwoofer loudspeakers to maximize flexibility of system design as per your requirements. The input panel features a Phoenix-style connector. In addition, an externally accessible jumper selects passive or active operation. - DH7N 3" diaphragm and 1.4" exit pure titanium compression driver
- DVX3151A 15" LF transducer with a fully symmetric drive
- Includes a Phoenix-style connector
- Fourth-order crossover network with HF protection
- Coverage pattern of 90 x 90° and Constant Directivity 12" rotatable waveguide
- 100 dB sensitivity and 134 dB maximum SPL
- Twenty-two M10 threaded suspension points
UPC: 701001114955 In the Box Electro-Voice EVF-1152D Single 15" 2-Way Full-Range Indoor Loudspeaker System (EVCoat-Finish, White) Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1152D Single 15" 2-Way Full-Range Indoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1152D Specs | Frequency Response | -3 dB: 70 Hz to 18 kHz | | Frequency Range | -10 dB: 40 Hz to 21 kHz | | Coverage | Rotatable: 90 x 90° | | Frequency | Receiver High Pass: 45 Hz | | Passive Crossover Frequency | 1300 Hz | | Axial Sensitivity | 100 dB (1 W @ 3.28' / 1 m)
LF Transducer - DVX3151A: 100 dB (1 W @ 3.28' / 1 m)
HF Transducer - DH7N: 114 dB (1 W @ 3.28' / 1 m) | | SPL | Maximum Calculated: 134 dB
LF Transducer - DVX3151A: 133 dB
HF Transducer - DH7N: 139 dB | | Power Handling | Passive: 600 W continuous, 2400 W peak
LF Transducer - DVX3151A: 500 W continuous, 2000 W peak
HF Transducer - DH7N: 75 W continuous, 300 W peak | | Impedance | 8 Ohms (nominal), 6 Ohms (minimum)
LF Transducer - DVX3151A: 8 Ohms (nominal), 7.2 Ohms (minimal)
HF Transducer - DH7N: 8 Ohms (nominal), 6 Ohms (minimal) | | Connectors | Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals | | Enclosure | 13-ply birch with EVCoat | | Grille | 16 GA powder-coated galvanneal with rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 18.5 x 18.37" (768.6 x 469.8 x 466.6 mm) | | Weight | 75.7 lb (34.4 kg) |
