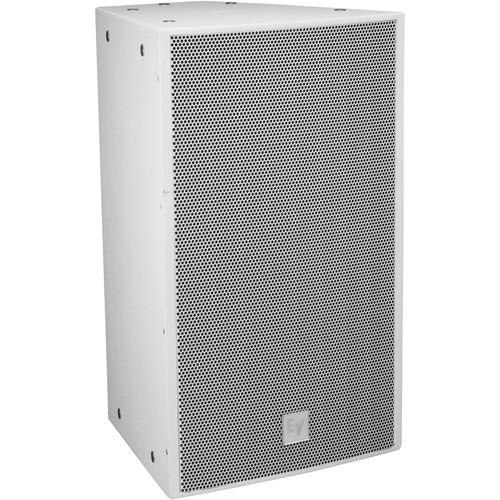

User Manual for Electro-Voice EVF-1152D Single 15" 2-Way Full-Range Outdoor Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1152D Single 15" 2-Way Full-Range
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice EVF-1152D Single 15" 2-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The white EVF-1152D Single 15” 2-Way Full-Range Outdoor Loudspeaker System from Electro-Voice is a high-power, 2-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the DH7N 3” titanium compression driver, coupled to a Constant Directivity 60 x 60° waveguide. The system also uses DVX3151A 15” woofer, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24 dB per octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The trapezoidal enclosure is constructed of weather-resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. Thanks to the fiberglass finish and IP55 rating, this loudspeaker can be used in harsh environments. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. A 70.7/100V transformer kit can be easily mounted to the input panel for use in distributed systems.
The system offers 7 horn patterns with an assortment of low-frequency and subwoofer loudspeakers to maximize flexibility of system design as per your requirements. The input panel features a Phoenix-style connector and CDG dual-gland-nut input panel cover. In addition, an externally accessible jumper selects passive or active operation. - DH7N 3" diaphragm and 1.4" exit pure titanium compression driver
- DVX3151A 15" LF transducer with a fully symmetric drive
- Comes with a Phoenix-style connector and CDG dual-gland-nut input panel cover
- Fourth-order crossover network with HF protection
- Coverage pattern of 60 x 60° and Constant Directivity 12" rotatable waveguide
- 100 dB sensitivity and 134 dB maximum SPL
- Twenty-two M10 threaded suspension points
UPC: 701001114795 In the Box Electro-Voice EVF-1152D Single 15" 2-Way Full-Range Outdoor Loudspeaker System (Weather-Resistant Fiberglass, White) CDG Dual-Gland-Nut Input Panel Cover Limited 3-Year Warranty User Manual PDF 5.3mbdyeawcwxdyewtdy Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1152D Single 15" 2-Way Full-Range Outdoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1152D Specs | Frequency Response | -3 dB: 107 Hz to 18 kHz | | Frequency Range | -10 dB: 58 Hz to 21 kHz | | Coverage | Rotatable: 60 x 60° | | Frequency | Receiver High Pass: 55 Hz | | Passive Crossover Frequency | 1300 Hz | | Axial Sensitivity | 100 dB (1 W @ 3.28' / 1 m)
LF Transducer - DVX3151A: 100 dB (1 W @ 3.28' / 1 m)
HF Transducer - DH7N: 114 dB (1 W @ 3.28' / 1 m) | | SPL | Maximum Calculated: 134 dB
LF Transducer - DVX3151A: 133 dB
HF Transducer - DH7N: 139 dB | | Power Handling | Passive: 600 W continuous, 2400 W peak
LF Transducer - DVX3151A: 500 W continuous, 2000 W peak
HF Transducer - DH7N: 75 W continuous, 300 W peak | | Impedance | 8 Ohms (nominal), 6 Ohms (minimum)
LF Transducer - DVX3151A: 8 Ohms (nominal), 7.2 Ohms (minimal)
HF Transducer - DH7N: 8 Ohms (nominal), 6 Ohms (minimal) | | Connectors | Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals
CDG dual-gland-nut input panel cover | | Enclosure | 13-ply weather-resistant birch with fiberglass finish | | Grille | 18 GA stainless steel with hydrophobic cloth | | Environmental | IEC 60529 IP55 | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 18.5 x 18.37" (768.6 x 469.8 x 466.6 mm) | | Weight | 75.7 lb (34.4 kg) |
