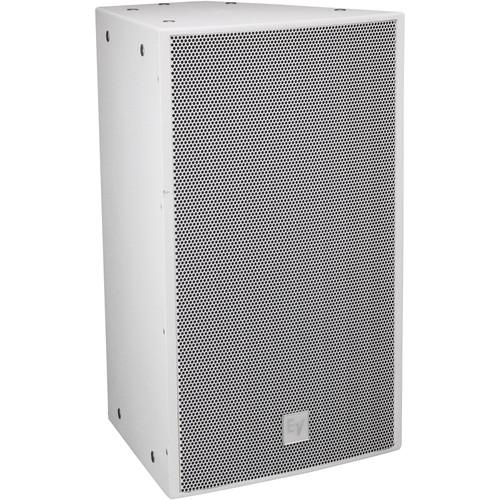

User Manual for Electro-Voice EVF-1152S Single 15" 2-Way Full-Range Indoor Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1152S Single 15" 2-Way Full-Range
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice EVF-1152S Single 15" 2-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The white EVF-1152S Single 15” 2-Way Full-Range Indoor Loudspeaker System from Electro-Voice is a high-power, 2-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required. It utilizes the ND2B 2” titanium compression driver, coupled to a Constant Directivity 90° x 40° waveguide. The system also uses SMX2151 15” woofer, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24 dB per octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The trapezoidal enclosure is coated with EVCoat for maximum protection from the elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. The loudspeaker offers 7 horn patterns with an assortment of low-frequency and subwoofer loudspeakers to maximize flexibility of system design as per your requirements. The input panel features a Phoenix-style connector. In addition, an externally accessible jumper selects passive or active operation. - ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
- SMX2151 15" LF transducer with a fully symmetric drive
- Fourth-order crossover network with HF protection
- Coverage pattern 90° x 40° and constant directivity 12" rotatable waveguide
- 101 dB sensitivity and 134 dB maximum SPL
- Twenty-two M10 threaded suspension points
- Comes with a Phoenix-style connector
UPC: 800549301831 In the Box Electro-Voice EVF-1152S Single 15" 2-Way Full-Range Indoor Loudspeaker System (EVCoat-Finish, White) Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1152S Single 15" 2-Way Full-Range Indoor Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1152S Specs | Frequency Response | -3 dB: 70 Hz to 14 kHz | | Frequency Range | -10 dB: 41 Hz to 18 kHz | | Frequency | Receiver High Pass: 45 Hz | | Axial Sensitivity | 101 dB (1 W / 1 m) | | SPL | Maximum Calculated: 134 dB | | Coverage | Horizontal: 90° (or 40°)
Vertical: 40° (or 90°) | | Power Handling | 500 W continuous, 2000 W peak | | Rating | Active
Continuous: LF 400 W / HF 40 W Peak: 1600 W / 160 W | | Low Frequency Transducer | SMX2151, 15" (381 mm) driver | | High Frequency Transducer | ND2B, 2" (51 mm) diaphragm compression driver | | Crossover Frequency | 1450 Hz | | Nominal Impedance | 8 Ohms | | Minimum Impedance | 6 Ohms | | Connectors | Dual four-pin Contact 10 AWG Phoenix/EuroBlock style screw terminal | | Enclosure | 13-ply birch EVCoat-finished | | Grille | 16 GA Galvanneal, powder-coated, with rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 18.5 x 18.37" (768.6 x 469.8 x 466.6 mm) | | Weight | 70.9 lb (32.2 kg) |
