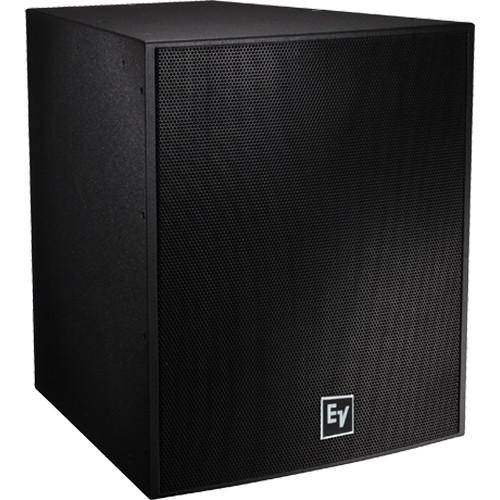

User Manual for Electro-Voice EVF-1181S Single 18" Front-Loaded Semi-Outdoor Subwoofer System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF-1181S Single 18" Front-Loaded Semi-Outdoor
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice EVF-1181S Single 18" Front-Loaded Semi-Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The black EVF-1181S Single 18” Front-Loaded Semi-Outdoor Subwoofer System from Electro-Voice is a high power, front-loaded bass element that can be used in a variety of applications where high quality sound reinforcement is required. It utilizes the EVS18SB 18” woofer developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL levels. Its features make it suitable for many fixed install applications, including applications with exposure to outdoor elements.
The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoat for protection from outdoor elements. This PI-weatherized subwoofer system is rated for outdoor exposure only in protected areas such as under a roof overhang. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH series. The input panel features a Phoenix-style connector and includes a gland-nut cover plate. - EVS18SB 18" LF transducer
- 99 dB sensitivity, 131 dB maximum SPL
- Twenty-eight M10 threaded suspension points
- Comes with a Phoenix-style connector and a gland-nut input panel cover plate (included)
UPC: 800549300803 In the Box Electro-Voice EVF-1181S Single 18" Front-Loaded Semi-Outdoor Subwoofer System (PI-Weatherized, Black) Gland-Nut Input Panel Cover Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF-1181S Single 18" Front-Loaded Semi-Outdoor Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1181S Specs | Frequency Response | -3 dB: 35 Hz to 100 Hz | | Frequency Range | -10 dB: 28 Hz to 650 Hz | | Frequency | Receiver High Pass: 33 Hz | | Axial Sensitivity | 99 dB (1 W / 1 m) | | SPL | Maximum Calculated: 131 dB | | Coverage | Horizontal/Vertical: Omnidirectional | | Power Handling | 400 W continuous, 1600 W peak | | Low Frequency Transducer | EVS18SB, 18" (457 mm) driver | | Nominal Impedance | 8 Ohms | | Minimum Impedance | 6 Ohms | | Connectors | Dual four-pin contact 10 AWG Phoenix/EuroBlock style screw terminal
Gland-nut input panel cover plate (included) | | Enclosure | 13-ply birch PI-finished | | Grille | Stainless steel with hydrophobic cloth | | Suspension | 28 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 26.6 x 28.6" (768.6 x 675.6 x 726.4 mm) | | Weight | 101.2 lb (45.9 kg) |
