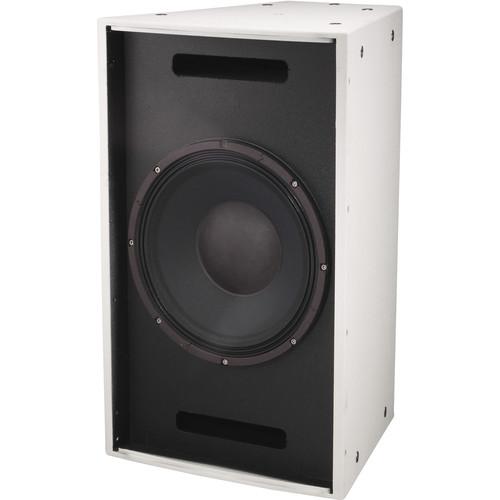

Product description The white EVF1151S Single 15" Front-Loaded Bass Element System from Electro-Voice is a high-power, front-loaded bass element that can be used in a variety of applications where high-quality sound reinforcement is required. The system utilizes the EVS15SB 15” woofer developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The system features a phoenix-style connector on the input panel and an externally accessible jumper that lets you select passive or active operation.The system is enclosed in a trapezoidal enclosure that is constructed of weather-resistant birch, and coated with EVCoat for protection from the elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. -
- EVS15SB 15” LF transducer
- 103 dB sensitivity, 135 dB maximum SPL
- System rating: 400 W continuous, 1600 W peak
- Twenty-two M10 threaded suspension points
UPC: 800549300872 In the Box Electro-Voice EVF1151S Single 15" Front-Loaded Bass Element System (White) Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF1151S Single 15" Front-Loaded Bass Element System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-1151S Specs | Frequency Response | -3 dB: 67 to 95 Hz (half-space measurement) | | Frequency Range | -10 dB: 46 to 124 Hz (half-space measurement) | | Frequency | Rec. High-Pass Frequency: 35 Hz | | Axial Sensitivity | 103 dB (1 W/1 m) (half-space measurement) | | SPL | Maximum: 135 dB | | Coverage | Horizontal & Vertical Coverage: Omnidirectional | | Power Handling | Continuous: 400 W
Peak: 1600 W | | Transducer | LF Transducer: EVS15SB, 15.0" (381 mm) driver | | Nominal Impedance | Passive: 4 Ohms
Biamp: 8 Ohms | | Connectors | 2 x 4-contact 10 AWG Phoenix/EuroBlock screw-terminals | | Enclosure | 13-ply weather-resistant birch with EVCoat | | Grille | 16 GA powder-coated galvanneal with rotatable logo | | Suspension | 22 x M10 threaded suspension points | | Dimensions (H x W x D) | 30.26 x 18.50 x 18.37" (768.6 x 469.8 x 466.6 mm) | | Weight | 62.6 lb (28.4 kg) |
