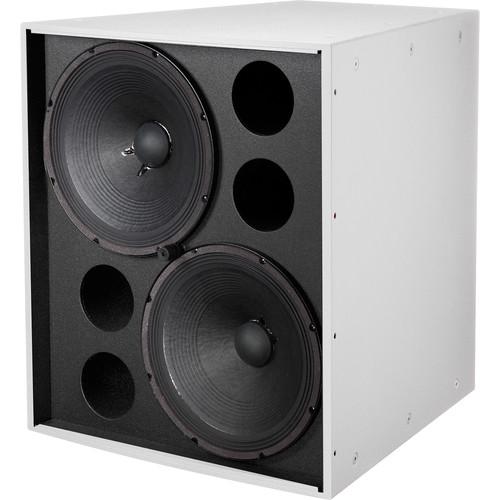

Product description The white EVF2151D Dual 15" Front-Loaded Bass Element System from Electro-Voice is a high-power, front-loaded bass element that can be used in a variety of applications where high-quality sound reinforcement is required. The system utilizes two 15" woofers, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The system features a Phoenix-style connector and CDG gland-nut on the input panel. It also features an externally accessible jumper that lets you select passive or active operation.The system is enclosed in a trapezoidal enclosure that is constructed of weather-resistant birch, and coated with EVCoat for protection from the elements. For further protection against elements, this system comes with a fiberglass finish. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. Unlike the standard version, this system features stainless steel grille with hydrophobic cloth. -
- Dual DVX3159A 15” LF transducers
- 101 dB sensitivity, 137 dB maximum SPL
- System rating: 1000 W continuous, 4000 W peak
- Twenty-eight M10 threaded suspension points
UPC: 701001113958 In the Box Electro-Voice EVF2151D Dual 15" Front-Loaded Bass Element System (White, with Fiberglass) Limited 3-Year Warranty Data Sheet PDF 405.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF2151D Dual 15" Front-Loaded Bass Element System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-2151D Specs | Frequency Response | -3 dB: 40 to 2.6 Hz (half-space measurement) | | Frequency Range | -10 dB: 30 to 3.2 kHz (half-space measurement) | | Frequency | Rec. High-Pass Frequency: 35 Hz | | Axial Sensitivity | 101 dB (1 W/1 m) (half-space measurement) | | SPL | Maximum: 137 dB | | Coverage | Horizontal & Vertical Coverage: Omnidirectional | | Power Handling | Continuous: 1000 W
Peak: 4000 W | | Transducer | LF Transducers: Dual DVX3159A, 15.0" (381 mm) drivers | | Impedance | Nominal: 4 Ohms
Minimum: 2.8 Ohms | | Connectors | Dual 4-pin 10 AWG Phoenix/EuroBlock screw-terminals
CDG gland-nut input panel cover | | Enclosure | 13-ply weather-resistant birch with fiberglass finish | | Grille | Stainless steel with hydrophobic cloth | | Suspension | 28 x M10 threaded suspension points | | Environmental | IEC 60529 IP55 | | Dimensions (H x W x D) | 30.26 x 26.60 x 28.60" (768.6 x 675.6 x 726.4 mm) | | Weight | 117 lb (53.1 kg) |
