User Manual for Electro-Voice EVF2151D Dual 15" Front-Loaded Bass Element System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVF2151D Dual 15" Front-Loaded Bass
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
 |
User manual for the Electro-Voice EVF2151D Dual 15" Front-Loaded Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

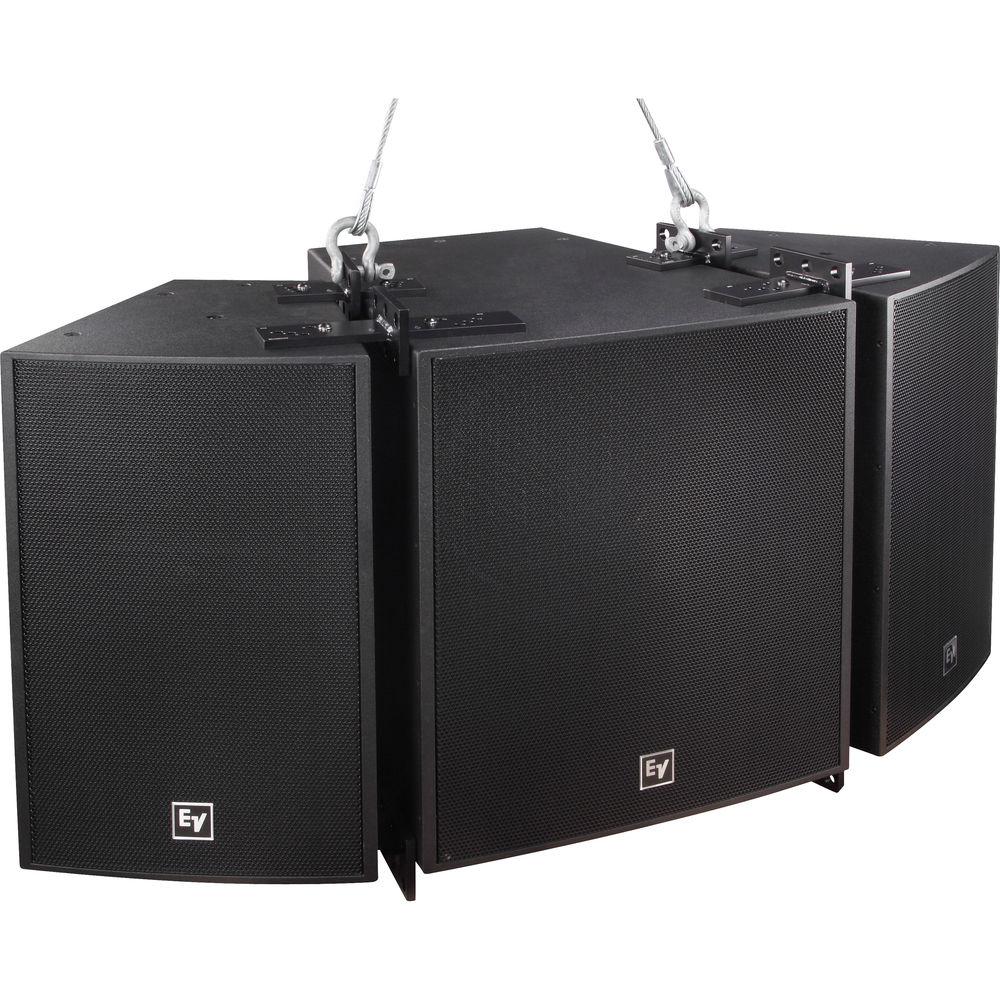

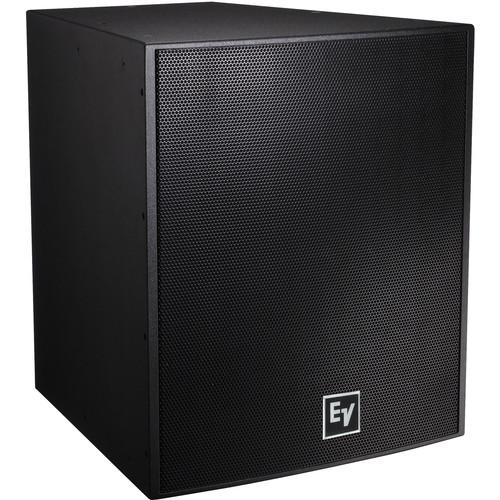

Product description The black EVF2151D Dual 15" Front-Loaded Bass Element System from Electro-Voice is a high-power, front-loaded bass element that can be used in a variety of applications where high-quality sound reinforcement is required. The system utilizes two 15" woofers, developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion and maximum intelligibility at high SPL. The system features a phoenix-style connector and CDG gland-nut on the input panel. It also features an externally accessible jumper that lets you select passive or active operation.The system is enclosed in a trapezoidal enclosure that is constructed of weather-resistant birch, and coated with EVCoat for protection from the elements. The acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. -

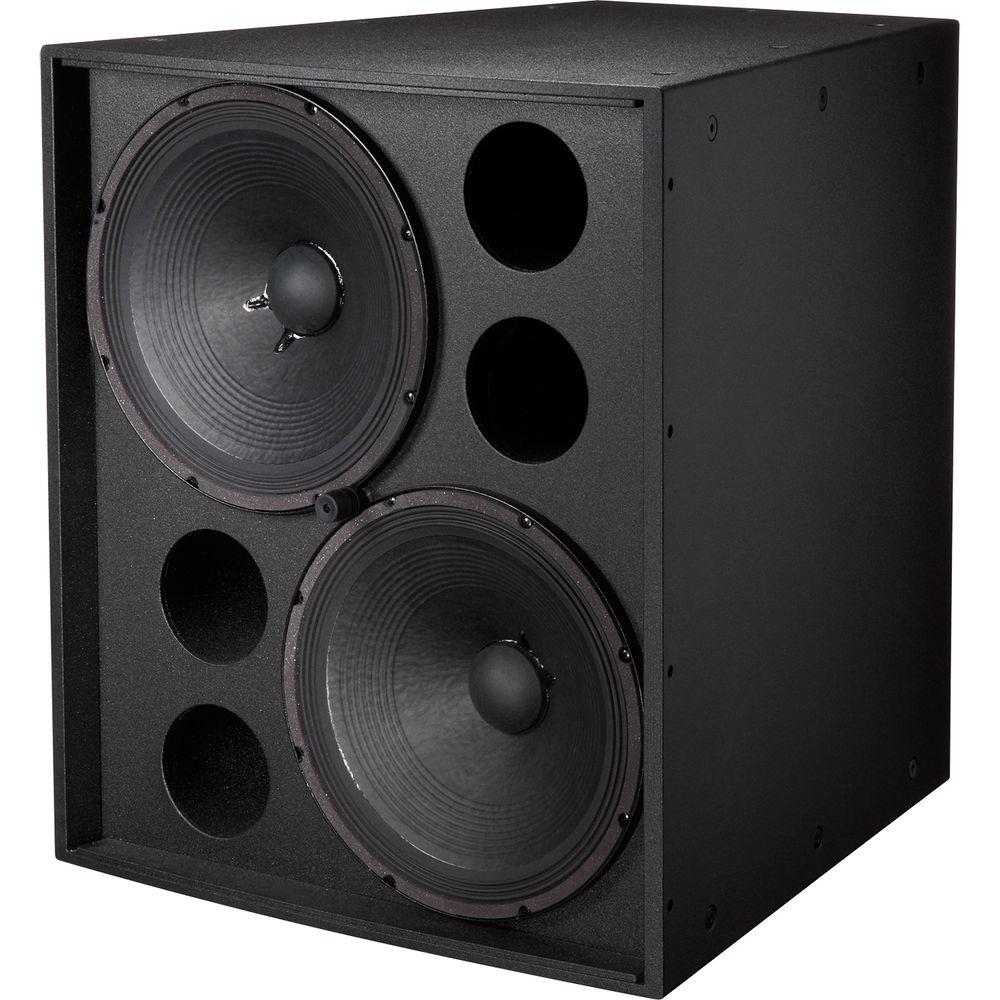

- Dual DVX3159A 15” LF transducers
- 101 dB sensitivity, 137 dB maximum SPL
- System rating: 1000 W continuous, 4000 W peak
- Twenty-eight M10 threaded suspension points
UPC: 701001113927 In the Box Electro-Voice EVF2151D Dual 15" Front-Loaded Bass Element System (Black) Limited 3-Year Warranty Data Sheet PDF 405.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVF2151D Dual 15" Front-Loaded Bass Element System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVF-2151D Specs | | | Configuration | Dual Subwoofer | | Total Power Capacity | 1000 W RMS
4000 W Peak | | System Impedance | 4 Ohms (Nominal)
2.8 Ohms (Minimum) | | | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Range | 30 Hz to 3.2 kHz -10 dB (Half-Space) | | Frequency Response | 40 Hz to 2.6 Hz -3 dB (Half-Space) | | Maximum SPL | 137 dB | | Speaker Sensitivity | 101 dB | | | | Audio I/O | 2 x Euroblock 4-Pin 10 AWG, CDG gland-nut input panel cover included | | | | Mounting | 28 x M10 | | IP Rating | IP55 | | Construction Material | Metal Grille, Plywood | | Dimensions | 30.3 x 26.6 x 28.6" / 768.6 x 675.6 x 726.4 mm | | Weight | 117 lb / 53.1 kg |
