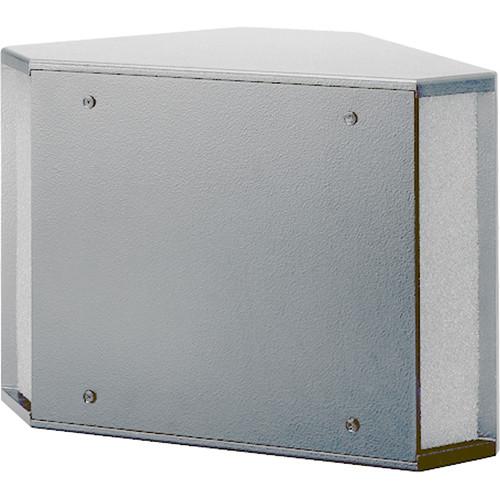

User Manual for Electro-Voice EVID-12.1 - 12" 350 Watt Passive Installation Subwoofer with Dual Voice Coils - White Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID-12.1 - 12" 350 Watt
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice EVID-12.1 - 12" 350 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The ElectroVoice EVID 12.1 is a passive, surface-mount installation subwoofer featuring a 12" driver, dual voice coils that process both channels of stereo low end information, a 175-Watt per coil power reservoir, and a 160Hz passive crossover. In addition, the EVID 12.1 can distribute audio for up to four separate satellites, via the four crossed-over audio outputs on the back panel, and may be wall or ceiling mounted with the supplied custom hardware. This provides extended bass performance for installation applications in bars, restaurants, and meeting or event facilities, as a companion to the Electrovoice EVID series of loudspeakers. - Unique 12" dual voice coil design accepts Left/Right stereo low end program material
- 175-Watt power handling per voice coil
- Built-in passive stereo crossover
- Side/Front angled port system for improved low frequency dispersion
- Wall or ceiling mounted MDF enclosure
- Forged steel eyebolt for attaching safety line if hanging the enclosure
- Four-satellite speaker output connection available as dual pairs or separate daisy-chained single units
UPC: 800549698030 In the Box Electro-Voice EVID-12.1 - 12" 350 Watt Passive Installation Subwoofer with Dual Voice Coils - White Wall/Corner Mounting Bracket 2 x Speaker Mounting Clips 4 x Rubber Mounting Feet Eyebolt Owner's Manual 5 Year Warranty User Manual PDF 887.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-12.1 - 12" 350 Watt Passive Installation Subwoofer with Dual Voice Coils - White in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID 12.1 Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 350 W | | Amplifier Power Rating | 2 x 175 W | | System Impedance | 8 Ohms | | | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | Dual | | | | Frequency Range | 40 Hz to 140 Hz | | Maximum SPL | 122 dB | | Speaker Sensitivity | 100 dB | | | | Audio I/O | 4 x Push Terminal Input
4 x Push Terminal Output | | | | Crossover | 160 Hz (Passive) | | | | Construction Material | MDF | | Dimensions | 16.2 x 23.0 x 12.0" / 412.0 x 584.0 x 305.0 mm | | Weight | 40 lb / 18.1 kg | | | | Package Weight | 52.05 lb | | Box Dimensions (LxWxH) | 25.0 x 18.0 x 14.0" |
