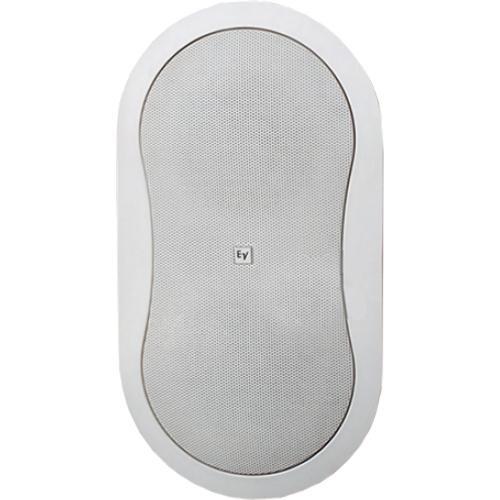

User Manual for Electro-Voice Evid 4.2 Speaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice Evid 4.2 Speaker System
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice Evid 4.2 Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro Voice Evid 4.2 Speaker System features a compact, 2-way, full range loudspeaker pair. These paintable, weatherproof speakers are perfect for use in small indoor or outdoor spaces, such as patios, restaurants, bars and retail locations. The Strong-Arm-Mount system provides for easy horizontal or vertical mounting for a wide range of angles.
Other features of the 4.2 include: line-array enhanced coverage control, full-bandwidth overload protection, dual LF transducers and a Ti direct-radiator HF transducer. The speakers are magnetically shielded with zinc-plated grilles and offer high sensitivity. - Compact full range 2-Way Speaker System
- Line-array enhanced coverage control
- Compact shape great for use in small spaces
- Full-bandwidth overload protection
- Dual LF transducers for extended bass and greater power handling and output
- Ti direct-radiator HF transducer, Neodymium structure
- Strong-Arm-Mount system allows horizontal and vertical mounting
- Weather resistant curved grill
UPC: 701001080557 In the Box Electro-Voice Evid 4.2 Speaker System 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Evid 4.2 Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Evid 4.2 Specs | Frequency Response | 65Hz-20kHz | | Power Capacity | 200W Continuous, 400W Peak | | Maximum Sound Pressure Level (SPL) | 113dB | | Nominal Sensitivity | 89dB, 1W/1m | | Impedance | 8 Ohms | | Crossover | 2.2kHz | | Shielded | Magnetically shielded | | Low Frequency Driver | 2 x 4" (100mm) | | High Frequency Driver | 1" (25mm) | | Enclosure Material | ABS (paintable) | | Input Connections | Spring | | Dimensions | 6.9 x 12.2 x 8.5" each (127 x 234 x 165mm) | | Weight | 8.5 lbs each (3.9kg) | | Specialties | Indoor/outdoor - restaurants, bars, patios, retail | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 16.0 x 14.9 x 9.6" |
