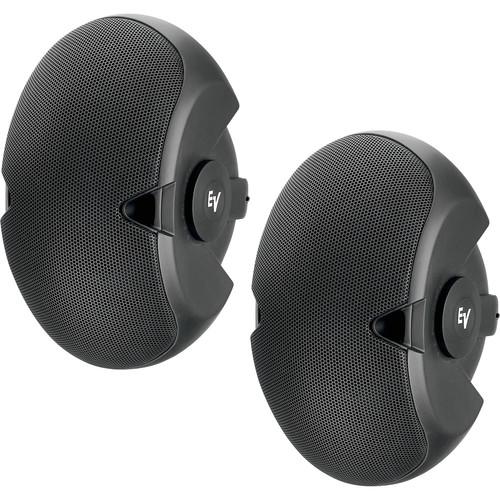

User Manual for Electro-Voice EVID-4.2T Passive 2-Way 400W 70V 100V Installation Speaker with Dual 4" Woofers & 1" Tweeter Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID-4.2T Passive 2-Way 400W 70V
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice EVID-4.2T Passive 2-Way 400W 70V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The black Electro-Voice EVID 4.2T is a full-range installation speaker, sold as a pair, and suitable for use in bars, bistros, retail, and outdoor venues where space is limited. The dual 4" woofers offer the bass response of a much larger speaker, and the 1" waveguide-coupled titanium tweeter delivers controlled mid- and high-frequency reproduction. The speaker offers a 400W peak power handling capacity, and is equipped with a transformer for 70V/100V use. The proprietary cast-aluminum SAM (Strong-Arm Mount) assembly for the EVID 4.2T allows for flexible placement and directivity in surface or ceiling mounting design, and the weather-resistant enclosure and magnetic driver shielding allow for reliable outdoor placement and close proximity use with video or computer monitors. - Rugged surface-mount weather-resistant installation monitor in black finish
- Equipped with 70V/100V transformer
- Dual 4" woofers with magnetic shielding for extended low-end reproduction and close proximity use with video and computer monitors
- 1" Coherent Coverage Waveguide Horn tweeter for even dispersion of mids and highs
- Titanium dome tweeter with neodymium magnets
- Dual bass ports for greater low-end clarity and definition
- Treated woofer cones, durable zinc-plated steel grille
- Cast aluminum Strong-Arm Mount(SAM) with 100° of swing and 90° of rotation positioning options
UPC: 701001012626 In the Box Electro-Voice EVID-4.2T Passive 2-Way 400W 70V/100V Installation Speaker with Dual 4" Woofers & 1" Tweeter (Pair, Black) SAM (Strong-Arm Mount) Assembly Kit 2 x Large Logo Caps 2 x Small Logo Caps Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-4.2T Passive 2-Way 400W 70V 100V Installation Speaker with Dual 4" Woofers & 1" Tweeter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID 4.2 Specs | Active or Passive | Passive | | Frequency Response | 65 Hz to 20 kHz | | Power Capacity | Continuous: 200 W
Peak: 400 W | | Maximum Sound Pressure Level (SPL) | 113 dB | | Nominal Sensitivity | 89 dB (1 W, 1 m) | | Impedance | 8 Ohms | | Power Taps | Watts at 70 V: 3.75
Watts at 70/100 V: 7.5, 15, or 30
8-Ohm bypass | | Coverage | H x V: 120 x 80° | | Crossover | 2.2 kHz | | Shielded | Yes | | Low Frequency Driver | 2 x 4" / 100 mm | | High Frequency Driver | 1" / 25 mm | | Enclosure Material | ABS (paintable) | | Input Connections | Euroblock | | Environmental | Weather-resistant | | Dimensions | 12.2 x 6.9 x 8.5" / 310 x 175 x 216 mm | | Weight | 8.5 lb / 3.9 kg | | Specialties | Weather resistant for indoor/outdoor use
Shielded | | | | Package Weight | 22.15 lb | | Box Dimensions (LxWxH) | 18.0 x 15.0 x 12.0" |
