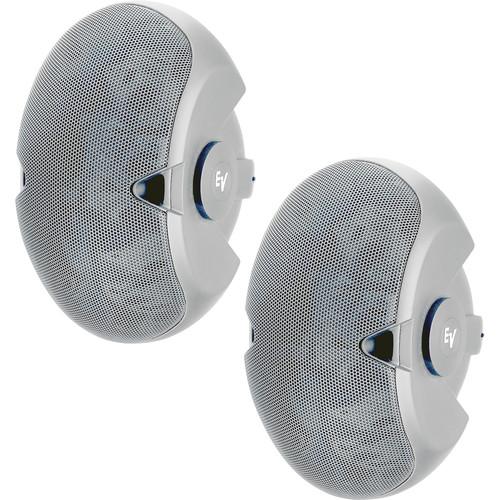

User Manual for Electro-Voice EVID 6.2W Passive 2-Way 300W Installation Speaker with Dual 6" Woofers Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID 6.2W Passive 2-Way 300W
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice EVID 6.2W Passive 2-Way 300W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Sold as a pair, the white Electro-Voice EVID 6.2W is a passive two-way loudspeaker designed for voice amplification and background/foreground music reproduction in clubs, restaurants, and retail stores. Weather resistant and magnetically shielded, it can be used indoors or outside in a variety of positions, even next to video monitors. Each EVID 6.2W is equipped with dual 6" woofers and a 1" titanium tweeter, yielding a frequency range of 62 Hz to 20 kHz, and a continuous program power capacity of 300W when driven by a compatible 8-Ohm power amplifier. Full-bandwidth overload protection ensures reliable operation without additional external circuitry. The standard Euroblock connector enables simple and secure wiring. The EVID 6.2W features a durable, paintable ABS enclosure with a zinc-coated grille to protect all internal components. The included SAM (Strong-Arm-Mount) accommodates multiple mounting positions, and allows for a high degree of horizontal and vertical directivity. - Installation loudspeaker for indoor and outdoor background/foreground music systems in restaurants, bars, patios, retail stores, and more
- Line array–influenced design yields unobtrusive shape and 100° horizontal by 80° vertical coverage
- Elliptic baffle symmetrically locates the tweeter in front of and between the woofers
- Full-bandwidth overload protection
- Conforms to MIL-STD-810 and IP34 for reliable weather resistance
- 300W continuous program power handling
- 62 Hz to 20 kHz frequency range
- Dual 6" woofers for extended bass, greater power handling, and increased output
- Titanium direct-radiator, high-frequency transducer with neodymium magnet
- Magnetically shielded for use near video monitors
- Zinc-plated, powder-coated grille with safety leash
- Over 100° of swing and 90° of rotation for maximum install flexibility
- Strong-Arm-Mount provides excellent strength and reliability
UPC: 701001011346 In the Box Electro-Voice EVID 6.2W Passive 2-Way 300W Installation Speaker with Dual 6" Woofers (Pair, White) 2 x SAM (Strong-Arm-Mount) Mounting Systems 2 x Hex Keys Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID 6.2W Passive 2-Way 300W Installation Speaker with Dual 6" Woofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID 6.2 Specs | Active or Passive | Passive | | Coverage | Horizontal: 100°
Vertical: 80° | | Frequency Range | 62 Hz to 20 kHz (-10 dB) | | Power Capacity | Continuous Program: 300 W
Peak: 600 W | | Maximum Sound Pressure Level (SPL) | 118 dB | | Nominal Sensitivity | 94 dB (1 W at 1 m) | | Nominal Impedance | 8 Ohms | | Crossover | 1.6 kHz | | Shielded | Yes | | Low Frequency Driver | 2 x 6" / 15.2 cm Drivers | | High Frequency Driver | 1" / 2.5 cm Titanium Direct-Radiator Transducer | | Input Connections | Euroblock Connector | | Swing | 100° | | Rotation | 90° | | Environmental Rating | MIL-STD-810
IP34 | | Construction Material | Enclosure: ABS (Paintable)
Grille: Zinc Plated | | Dimensions (H x W x D) | 16.5 x 9.0 x 11.7" / 41.9 x 22.8 x 29.8 cm | | Weight | 12 lb / 5.4 kg | | | | Package Weight | 31.6 lb | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 15.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
