User Manual for Electro-Voice EVID C10.1 Passive 10" 100W Ceiling Subwoofers Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID C10.1 Passive 10" 100W
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice EVID C10.1 Passive 10" 100W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

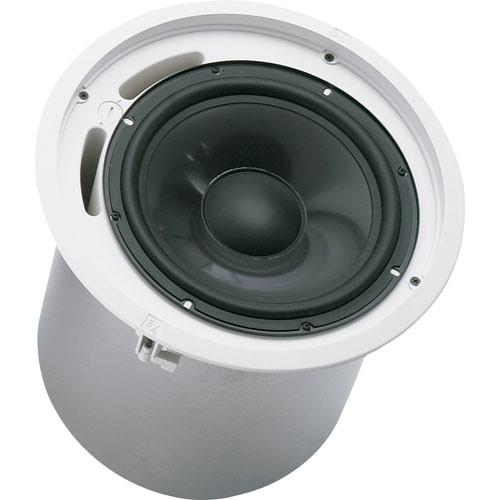

Product description Sold as a pair, the white Electro-Voice EVID C10.1 is a passive 10" in-ceiling installation subwoofer with a multi-tap transformer designed to deliver reliable low-frequency reinforcement for foreground music systems in waiting rooms, offices, retail stores, restaurants, and more. When driven by your 70V, 100V, or 8-Ohm power amplifiers (available separately), these subwoofers provide a continuous power capacity of 100W. Each EVID C10.1 is equipped with a 10" high-excursion woofer capable of covering the low-frequency range from 45 to 150 Hz. An internal 12 dB/octave low-pass network with overload protection ensures proper input bandwidth, and the low-loss transformer accommodates a range of taps, selectable via a convenient switch on the baffle. The low-frequency extension is aided by the ported enclosure, which features a steel backcan and an ABS baffle. The removable Euroblock connector, tile bridge, mounting ring, cutout template, and paint shield contribute to easy installation. - Ceiling subwoofer with 10" high-excursion transducer and ported enclosure for low-end reproduction down to 45 Hz
- 12 dB/octave low-pass crossover network with overload protection
- Integrated low-loss matching transformer allows for 70V, 100V, or 8-Ohm operation
- Front-panel switch for quick selection of transformer tap setting
- 4-pin Euroblock input and loop-thru
- Sturdy construction with zinc-plated steel backcan, ABS baffle, and powder-coated steel grille
- Perforated powder-coated steel grille with safety tether
- Mounting kit supplied for quick, self-contained installation
UPC: 701001015283 In the Box Electro-Voice EVID C10.1 Passive 10" 100W Ceiling Subwoofers (Pair, White) 2 x Tile Bridges 2 x Mounting Rings 2 x Backing Plate Supports 2 x Cutout Templates 2 x Paint Shields Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID C10.1 Passive 10" 100W Ceiling Subwoofers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID C10.1 Specs | Active or Passive | Passive | | Driver | 10" / 25.4 cm High-Excursion Woofer | | Frequency Range | 45 to 150 Hz (-10 dB) | | Coverage | 180° (Conical) | | Power Capacity | Continuous: 100 W
Peak: 400 W | | Maximum Sound Pressure Level (SPL) | Continuous: 114 dB
Peak: 120 dB | | Sensitivity | 94 dB SPL (1 W / 1 m) | | Nominal Impedance | 8 Ohms (Transformer Bypass) | | Transformer Taps | Watts at 70 V: 7.5, 15, 30, or 60
Watts at 100 V: 15, 30, or 60
Bypass: 8 Ohms | | Crossover | 2nd Order (12 dB/Octave) Low-Pass Network | | Construction Material | Baffle: UL 94V-O Rated ABS
Backcan: Zinc-Plated Steel
Grille: Perforated Powder-Coated Steel | | Inputs | Removable 4-Pin Euroblock with Screw Terminals and Loop-Thru | | Maximum Wire Gauge | 12 AWG | | Cutout Diameter | 12.7" / 32.2 cm | | Dimensions (Diam. x H) | 12.6 x 11.9" / 32.0 x 30.3 cm | | Weight | 15.5 lb / 7 kg | | Safety Approvals | UL 1480
UL 2043 | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 17.0" |
