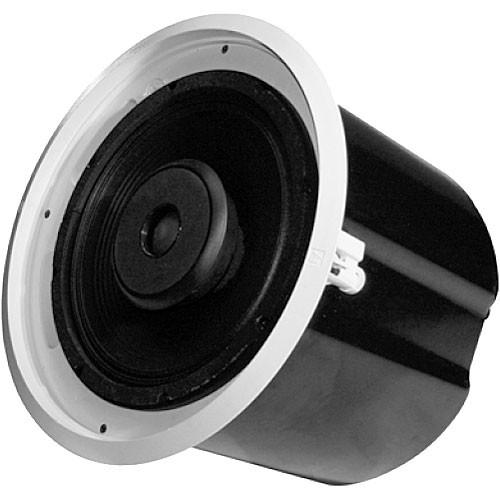

Product description The Electro-Voice EVID C12.2 is a passive 12" in-ceiling loudspeaker system with a multi-tap transformer designed to deliver reliable voice and music reproduction in waiting rooms, offices, retail stores, restaurants, and more. When driven by your 70V, 100V, or 8-Ohm power amplifier (available separately), this two-way speaker provides a power capacity of 100W RMS. The EVID C12.2 is equipped with a 12" coaxial transducer capable of efficiently covering frequencies from 85 Hz to 18 kHz. An internal 2 kHz network ensures bandwidth distribution to the speaker components. The built-in 64W transformer offers automatic saturation compensation, and accommodates a range of taps, selectable via a convenient switch on the ABS baffle. The removable Euroblock connector, tile bridge, mounting ring, cutout template, and paint shield contribute to easy installation. - Mounting Options
- The EVID C12.2 includes an integrated 3/8" threaded rod and pendant mount rigging points if you have an open ceiling. If you're working in a drop ceiling environment, the included tile bridge and mounting ring ensures easy and secure installation.
- Built-In Transformer
- The 64W built-in transformer comes with automatic saturation compensation for 70V/100V operation. The transformer tap switch is conveniently located on the speaker's baffle.
- Optimal Volume
- The rear enclosure is made of heavy-gauge steel and painted black so it disappears into the background. It also provides an optimal internal volume for extended low-frequency performance.
In the Box Electro-Voice EVID C12.2 Passive 12" 2-Way 100W Ceiling Loudspeaker System Tile Bridge Mounting Ring Backing Plate Support Cutout Template Paint Shield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID C12.2 Passive 12" 2-Way 100W Ceiling Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID C12.2 Specs | Active or Passive | Passive | | Driver | 12" / 30.5 cm EVID 920-8B Coaxial Transducer | | Frequency Range | 65 Hz to 20 kHz (-10 dB) | | Frequency Response | 85 Hz to 18 kHz (-3 dB) | | Power Capacity | At 8 Ohms: 100 W RMS
At 70/100 V: Up to 64 W | | Maximum Sound Pressure Level (SPL) | 126 dB | | Axial Sensitivity | 100 dB SPL (1 W / 1 m) | | Nominal Impedance | 8 Ohms (Transformer Bypass) | | Transformer Taps | Watts at 70 V: 4, 8, 16, 32, or 64 with Automatic Saturation Compensation
Watts at 100 V: 8, 16, 32, or 64 with Automatic Saturation Compensation
Bypass: 8 Ohms | | Crossover | Crossover Frequency: 2 kHz
Recommended High-Pass Frequency: 60 Hz | | Construction Material | Baffle/Bezel: UL 94V-O Rated ABS
Backcan: Powder-Coated Steel
Grille: Perforated Powder-Coated Steel | | Inputs | Removable 4-Pin Euroblock with Screw Terminals and Loop-Thru | | Maximum Wire Gauge | 12 AWG | | Mounting System | 4-Point Toggle Anchors
3-Point Pendant Mount
3/8" Threaded Rod
Additional Secondary Mount | | Cutout Diameter | 15.4" / 39 cm | | Dimensions (Diam. x Depth) | 16.3 x 13.1" / 41.4 x 33.3 cm | | Weight | 29.3 lb / 13.3 kg |
