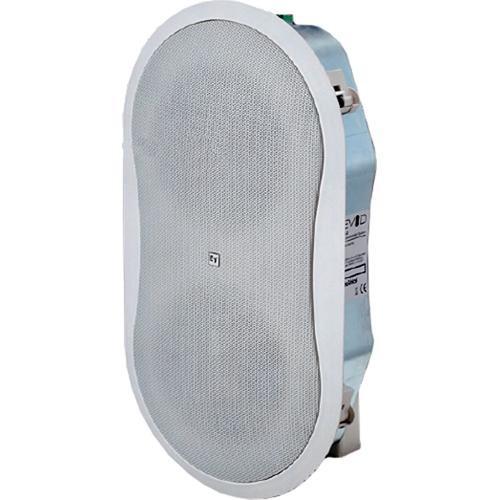

User Manual for Electro-Voice Evid FM 6.2 InWall Speaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice Evid FM 6.2 InWall Speaker
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice Evid FM 6.2 InWall Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro Voice Evid FM 6.2 InWall Speaker System is a 2-way system that's fully sealed in a shallow enclosure, making it ideal for use in larger rooms, providing excellent audio while isolating sound from adjacent rooms. The FM 6.2 features a bezel assembly, grille, rear enclosure and 6.5" two-way loudspeaker and a 6.5" passive radiator, along with an internal line-matching transformer. -
- Ideal for use in larger rooms
- Mounts flush in wall or ceiling
- Shallow, fully sealed enclosure
- Full bandwith overload protection
- 6.5 inch two-way speaker system
- 6.5 inch passive radiator coupled to woofer
- 4 pin phoenix style terminals for fast installation
- titanium coated tweeter for uniform high frequency coverage
- Front baffle wattage tap adjustment allows for easy level matching after install
- Integrated low loss matching transformer allows for either 70/100V or 8 ohm operation
UPC: 701001080564 In the Box Electro-Voice Evid FM 6.2 InWall Speaker System 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Evid FM 6.2 InWall Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Evid FM 6.2 Specs | Frequency Response | 60Hz-20kHz | | Frequency Range | 52Hz-20kHz | | Impedance | 8 Ohms nominal (transformer bypass) | | Sensitivity | 90dB | | Crossover Frequency | 3.3kHz | | Transformer Taps | 70V: 7.5, 15, 30, or 60W
100V: 15, 30, or 60W
Bypass: 8 Ohms nominal | | Connectors | 4 phoenix style terminals | | Enclosure Material | Baffle: UL 94V-O rated ABS
Backcan: Zinc plated steel | | Finish and Grille Color | Perforated powdercoated steel with safety tether | | Mounting | Integrated toggle anchors | | Hardware | Cutout template, paint sheild | | Dimensions | 18.32 x 10.09 x 3.95" (465.4 x 256.4 x 100.3mm) | | Weight | 12.7 lb (5.8kg) | | | | Package Weight | 29.96 lb | | Box Dimensions (LxWxH) | 21.5 x 17.5 x 12.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
