User Manual for Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
 |
User manual for the Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

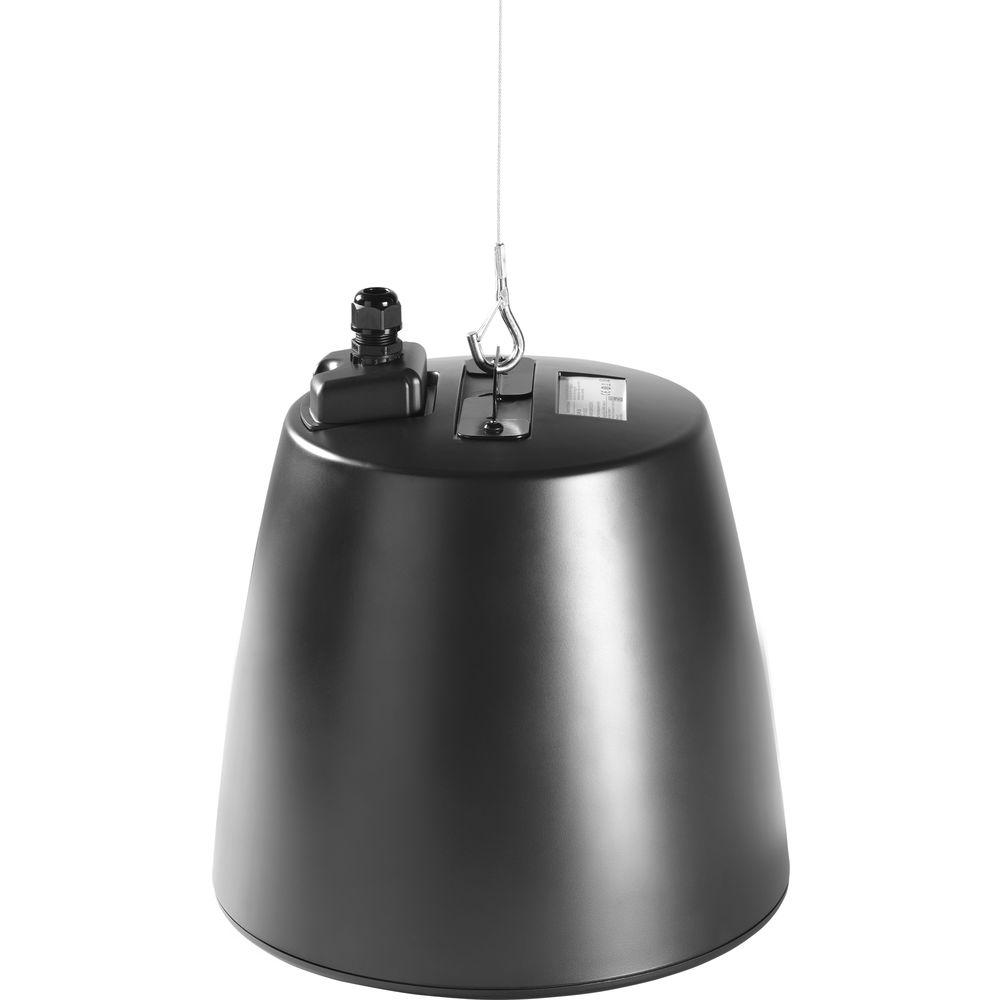

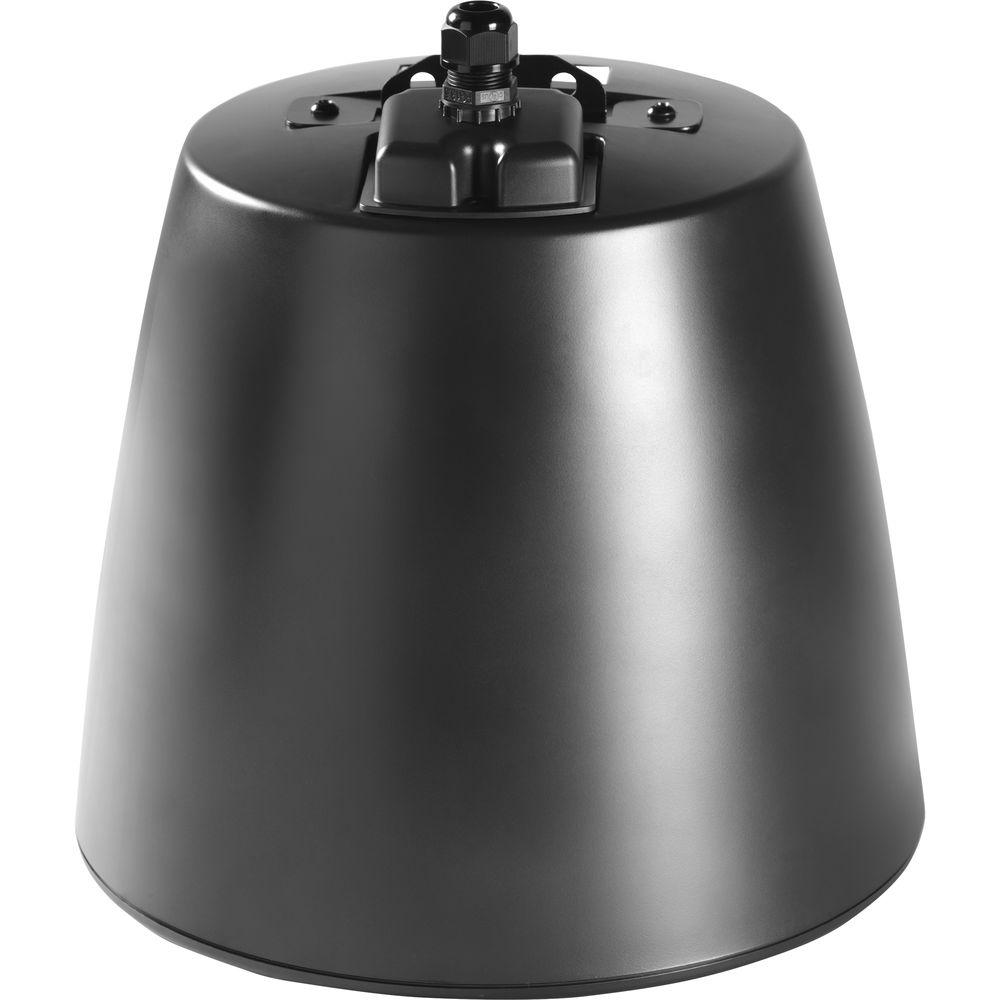

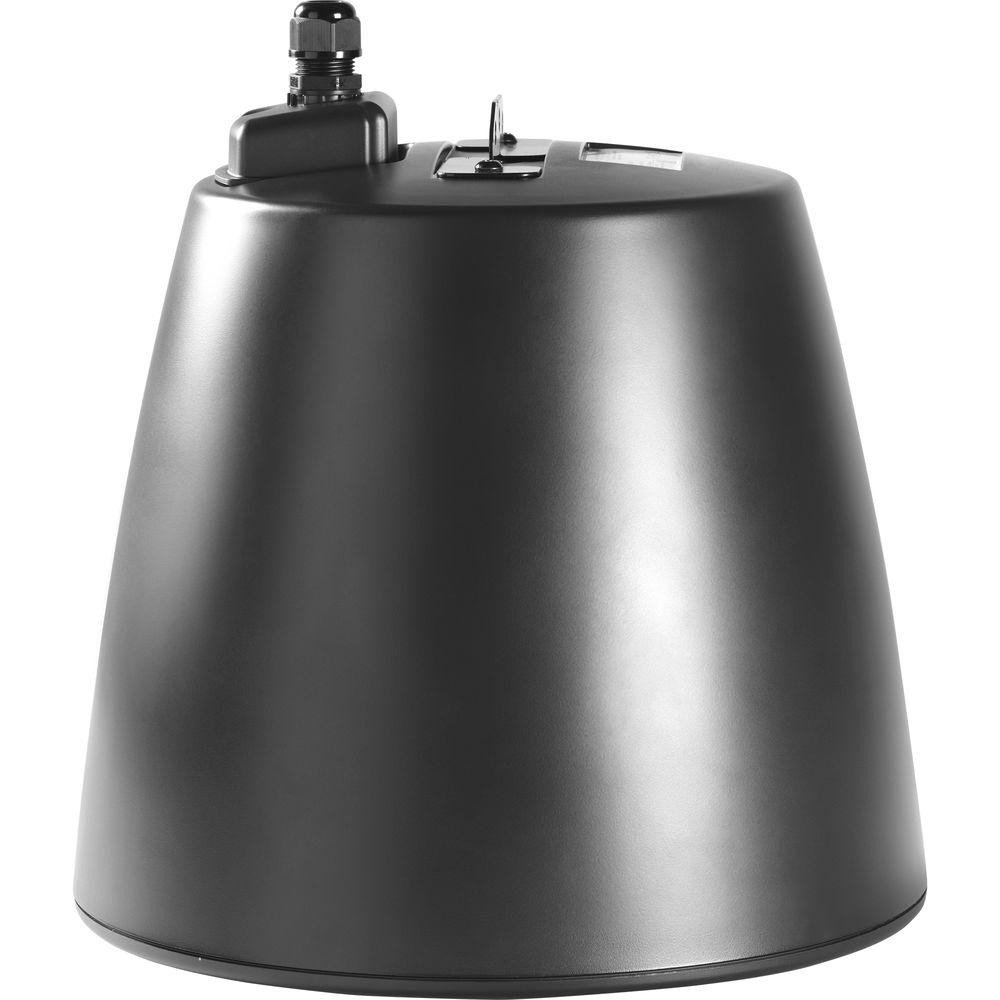

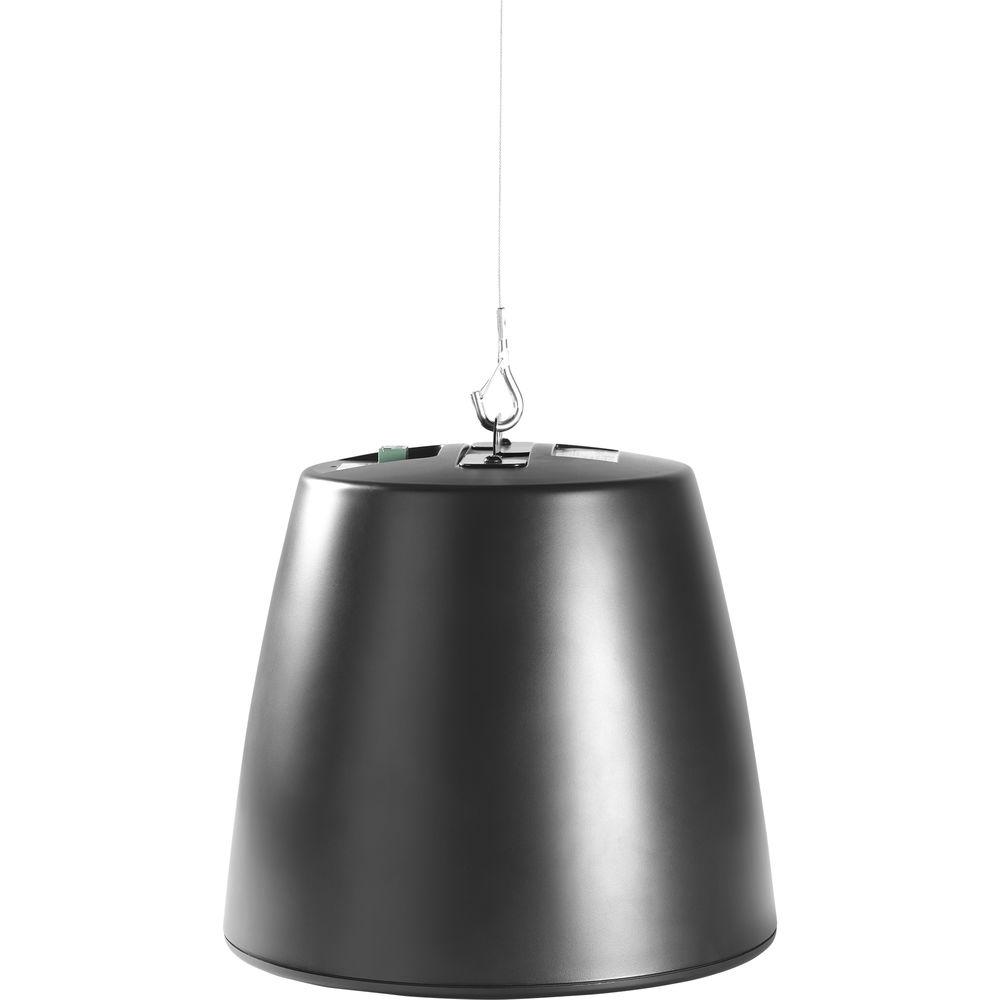

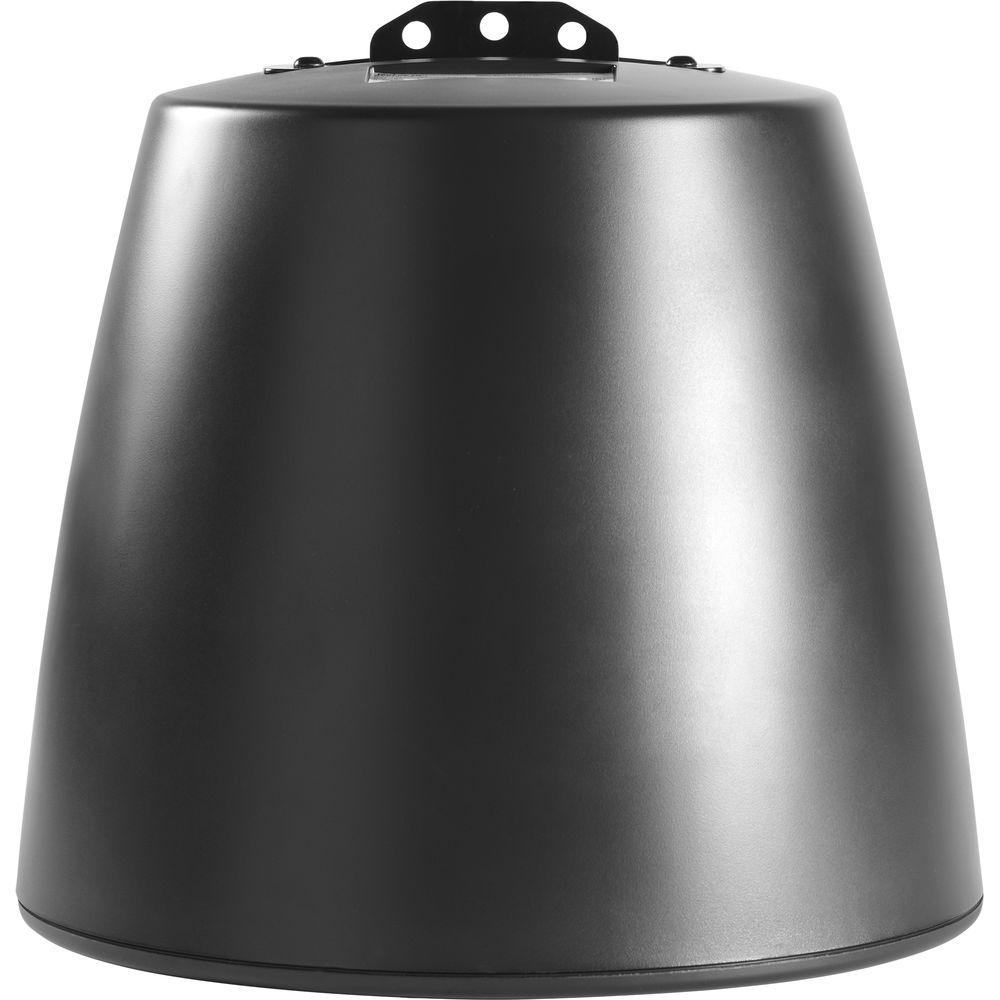

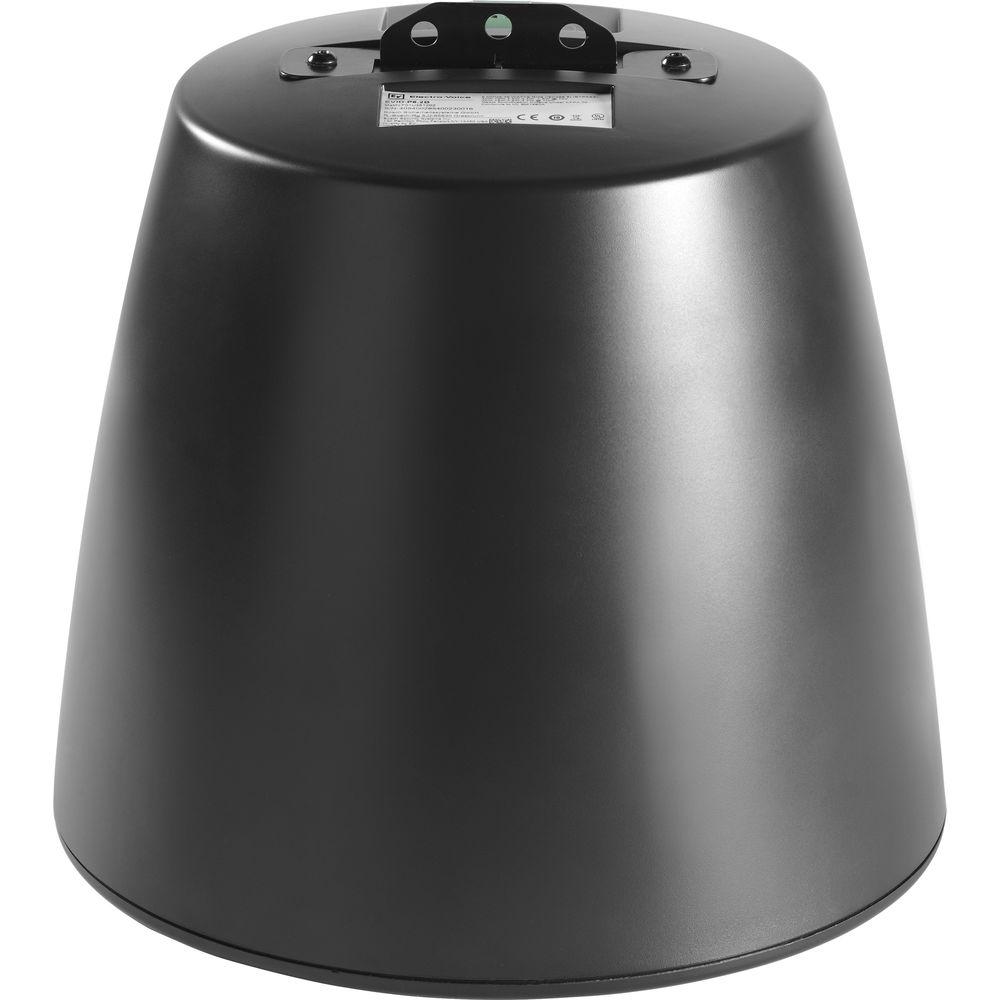

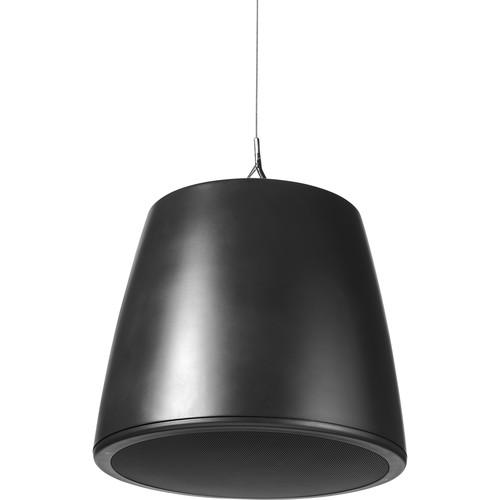

Product description The black Electro-Voice EVID-P6.2 is a 6.5" coaxial pendant speaker that provides a convenient way to equip open ceiling spaces with sound where conventional surface or ceiling mount speakers cannot be used. The pendant speaker is effective as a background music and paging solution for offices, waiting rooms, retail, bars, and other similar spaces.
Each speaker is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap-selector switch that includes 8-Ohm bypass operation, conveniently located on the front of the speaker. The EVID-P6.2 provides wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice. - 6.5" coaxial 2-way pendant speaker for ceiling hangs
- High-output speaker optimized for reproduction of background music or paging/announcement requirements
- Full-bandwidth overload protection circuitry; protects network, woofer and tweeter drivers from excessive power levels
- Waveguide coupled titanium tweeter for smooth high frequency dispersion
- Integrated low-loss, line-matching transformer for 70V/100V or 8-Ohm bypass operation
- Front-baffle wattage selector switch allows for 1.8 (70V only) / 3.75 / 7.5 / 15 / 30W delivery to loudspeaker system when using 70V/100V lines

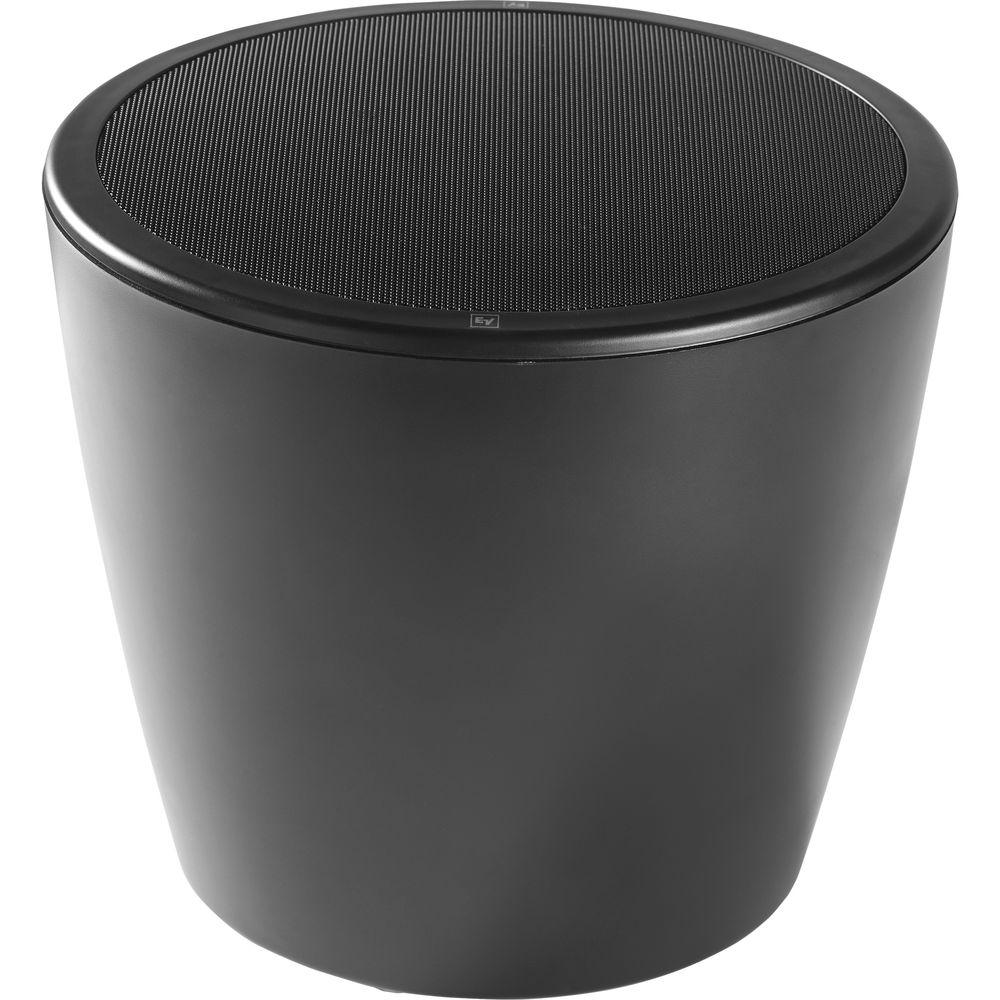

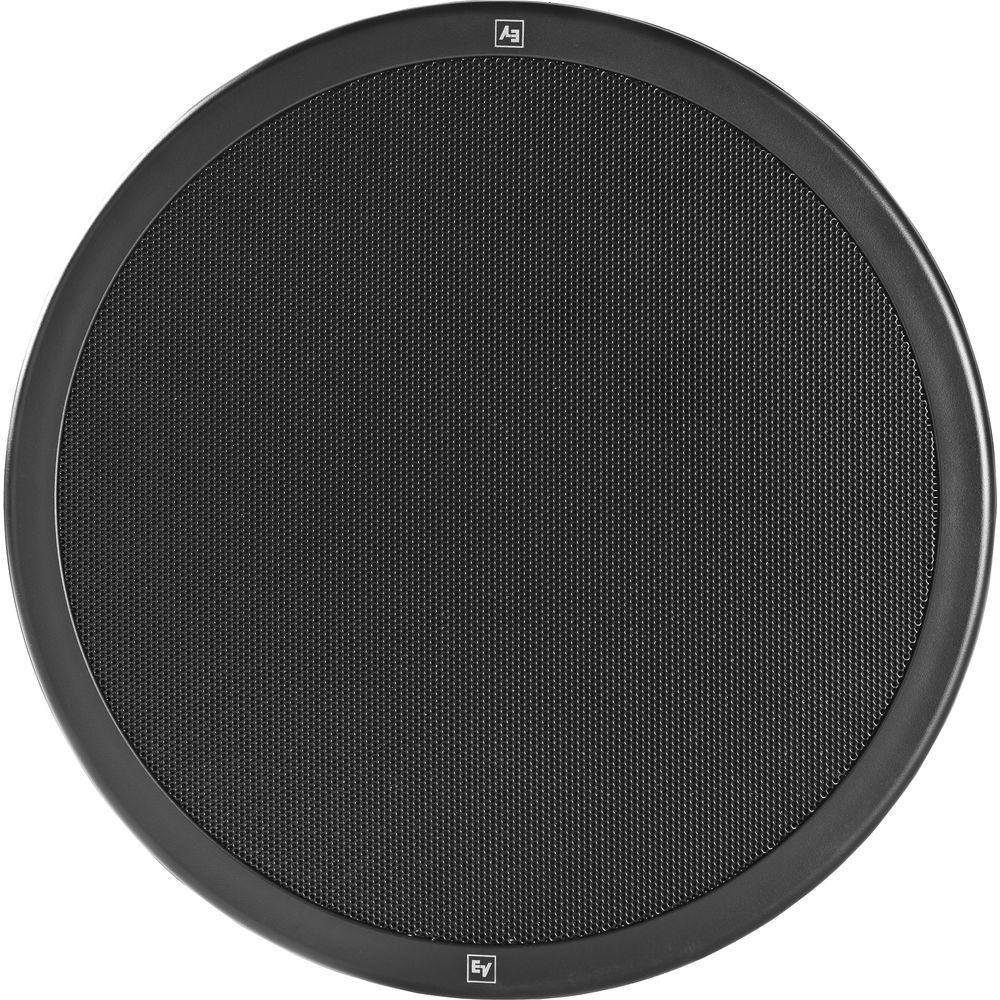

- Perforated magnetic grille speaker covers with powder-coated, semi-gloss black enamel finish

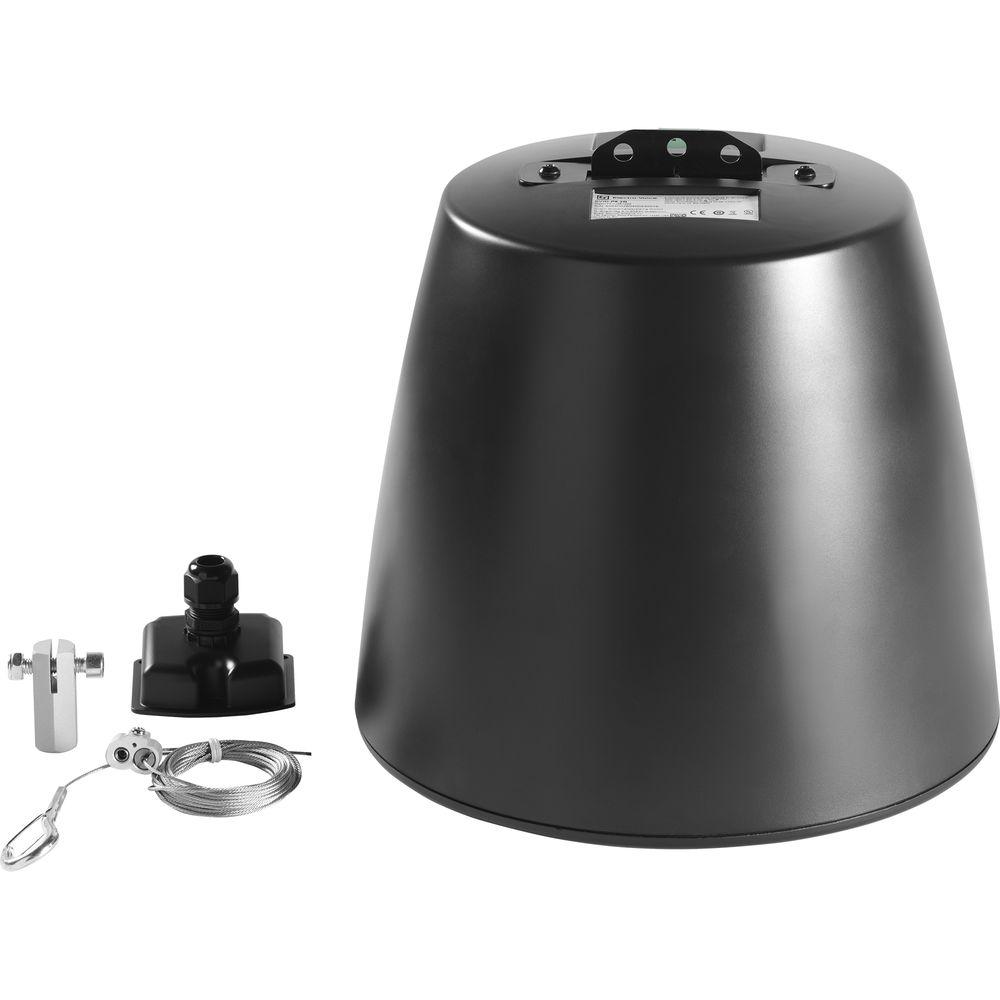

UPC: 800549889551 In the Box Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker (Black) Magnetic Grille (Installed) Grille Removal Tool Pendant Suspension Cable (15') Coupler Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-P6.2 - 6.5" Pendant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.351.202 Specs | Frequency Response | 60 Hz to 20 kHz | | Sensitivity | 87 dB (SPL 1 W/1 m) | | Coverage | 115° Conical | | Power Handling | 75 W at 8 Ohms (with Overload Protection) | | Rated Impedance | 8 Ohms | | High Pass Filter | 60 Hz | | Configuration Options | Input Configuration: 8 Ohms, 70 V/100 V | | Power Taps | 70 V/100 V Power Taps: 1.8 (70 V Only), 3.7, 7.5, 15, 30 W | | Transducers | LF Transducer: 6.5" / 165.1 mm High-Compliance Driver (Weatherized Cone)
HF Transducer: 1.0" / 25.4 mm Ti-Coated Dome | | Mounting System | Rear Mounted Suspension Points | | Design | Acoustic Design: Ported Cabinet, Two-Way Design, Internally Damped, with Passive Crossover | | Approvals | CE, UL 1480A, CSA 22.2 | | Cabinet Construction | UL94V-0 Rated Enclosure and Baffle | | Grille | Powder-Coated Steel | | Color | Black | | Included Accessories | Pendant Suspension Cable: Steel Wire Rope
Working Load Limit: 22.0 lb / 10.0 kg
Length: 15.0' / 4.6 m
Approvals: UL2442 | | Dimensions | Depth and Diameter: 11.9 x 12.2" / 302.3 x 309.9 mm | | Weight | 11.7 lb / 5.3 kg |
