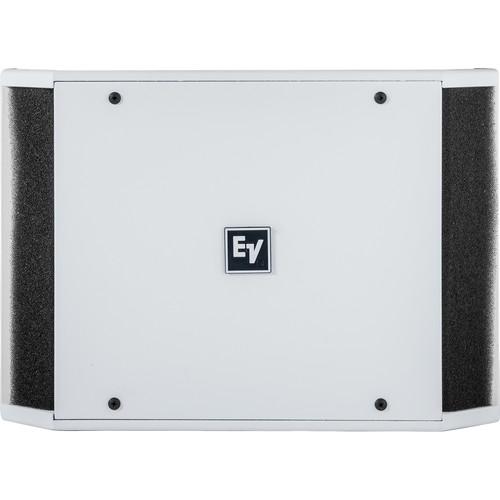

User Manual for Electro-Voice EVID-S12.1 12" Subwoofer Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVID-S12.1 12" Subwoofer
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice EVID-S12.1 12" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The white Electro-Voice EVID-S12.1 is a 12” subwoofer designed to provide low-end reinforcement for system designers, installers, and audio engineers configuring systems for background and foreground music in stores, clubs, eateries, schools, and more. Its acoustic ports and 12” dual voice-coil, high-excursion woofer yield a frequency response of 40 to 140 Hz and a 127 dB maximum SPL.Inputs and outputs utilize spring-loaded speaker terminals. The subwoofer can accept a stereo input and drive up to four satellite speakers (available separately). It includes hardware for mounting to a wall or corner and has an eyebolt for the attachment of a safety line. - 12" dual voice-coil, high-excursion woofer and acoustic ports yield a frequency response of 40 to 140 Hz
- 800W peak (200W continuous) power handling for 127 dB maximum SPL (133 dB peak)
- Spring-loaded speaker terminals for inputs and outputs
- Simultaneously drive up to four satellite speakers (available separately)
- Logo can be replaced to match speaker orientation
- Includes hardware for mounting subwoofer to a wall or corner
UPC: 800549845458 In the Box Electro-Voice EVID-S12.1 12" Subwoofer (White) Wall/Corner Mounting Bracket 4 x Rubber Feet Spare Logo 2 x Speaker Mounting Clips Eyebolt Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-S12.1 12" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID-S12.1 Specs | LF Driver | 1 x 12" / 305 mm | | Input | Spring-loaded speaker terminals | | Output | Spring-loaded speaker terminals | | Frequency Response | 40 to 140 Hz (-10 dB) | | Sensitivity | 104 dB (eighth space on corner averaged 60 to 100 Hz, 1 W) | | Maximum SPL | 127 dB calculated, 133 dB peak | | Power Handling | 800 W peak (200 W with continuous pink noise for 100 hours) | | Low Impedance | Yes | | Nominal Impedance | 8 Ohms | | Dimensions (H x W x D) | 16.3 x 23.0 x 11.9" / 413 x 584 x 303 mm | | Weight | 39.2 lb / 17.8 kg |
