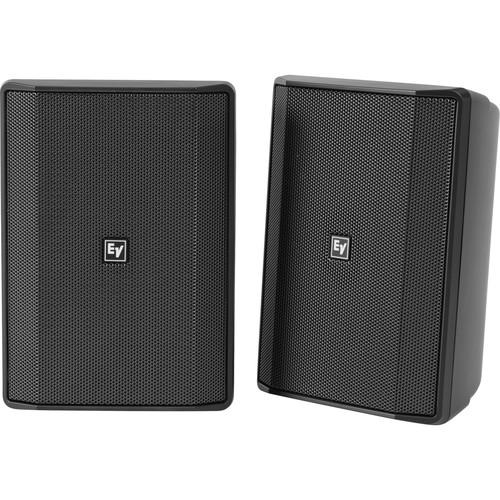

Product description The black Electro-Voice EVID-S5.2X is a pair of 5.25" 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more. Each speaker is IP65-certified for weatherproof use outdoors and features a fire-rated ABS plastic enclosure. A U-bracket mounting system and supplied mounting hardware enable simple and efficient setup.A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. Access to the transformer settings is provided via a rear-panel rotary switch. The 5.25" woofer and 0.75" high-frequency driver yield a frequency response of 55 Hz to 20 kHz. With a 108 dB maximum SPL and a coverage area of 90° by 90°, the EVID-S5.2T speakers deliver consistent audibility and even sound distribution. - U-bracket mounting system allows mounting to a U-bolt, threaded rod, pole, or junction box
- 90° horizontal by 90° vertical coverage
- Fire-rated ABS plastic enclosure
- IP65-certified for weatherproof use in outdoor environments
- 5.25" long-throw woofer and 0.75" high-frequency driver
- 55 Hz to 20 kHz frequency response (-10 dB), 90 Hz to 20 kHz frequency response (-3 dB)
- 300W peak (75W continuous) power handling for 108 dB maximum SPL (114 dB peak)
- Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
- Rotary switch allows easy selection of transformer power tap
- Logo can be replaced to match speaker orientation
UPC: 800549845366 In the Box Electro-Voice EVID-S5.2X 5.25" 2-Way 70/100V IP65-Rated Commercial Loudspeaker (Pair, Black) Allen Wrench 4 x Safety Screws for U-Brackets 2 x U-Brackets 2 x Weather Covers 8 x Weather Cover Screws 2 x Spare Grille Logos Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-S5.2X 5.25" 2-Way 70 100V IP65-Rated Commercial Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID-S5.2T Specs | LF Driver | 5.25" / 133 mm | | HF Driver | 0.75" / 20 mm | | Connector Type | 1 x 4-pin Euroblock connector (removable, locking) | | Maximum Wire Size | 12 AWG (2.5 mm) | | Coverage | Horizontal: 90° (nominal -6 dB)
Vertical: 90° (nominal -6 dB) | | Environmental Specifications | IP65 (per IEC-60529) | | Frequency Response | 55 Hz to 20 kHz (-10 dB)
90 Hz to 20 kHz (-3 dB) | | Sensitivity | 89 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W) | | Maximum SPL | 108 dB calculated, 114 dB peak | | Power Handling | 300 W peak (75 W with continuous pink noise for 100 hours) | | Low Impedance | Yes | | Impedance | Nominal: 8 Ohms
Minimum: 6.5 Ohms | | High-Pass Filter | Recommended: 60 Hz (24 dB/octave) | | Transformer | 60 W | | Transformer Taps | 70 V: 60 W, 30 W, 15 W, 7.5 W, 8 Ohms
100 V: 60 W, 30 W, 15 W, 8 Ohms | | Enclosure Material | Fire-rated ABS plastic | | Dimensions (H x W x D) | 10.0 x 7.1 x 5.8" / 255 x 180 x 148 mm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 17.05 lb | | Box Dimensions (LxWxH) | 16.5 x 13.0 x 10.2" |
