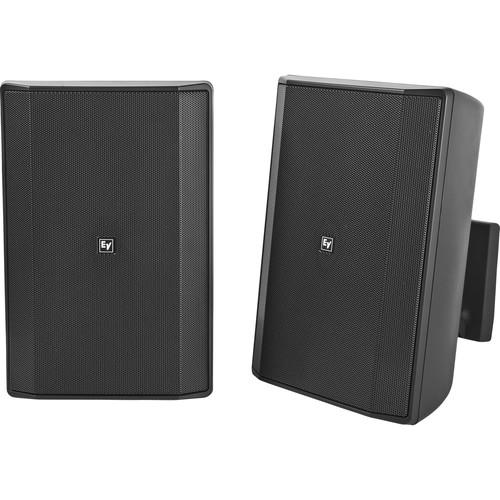

Product description The black Electro-Voice EVID-S8.2T is a pair of 8” 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more. Each speaker is IP54-certified for weather-resistant use outdoors and features a fire-rated ABS plastic enclosure. A pre-assembled mounting system and supplied mounting hardware enable simple and efficient setup.A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. The 8” woofer and 1” high-frequency driver yield a frequency response of 50 Hz to 20 kHz. With a 110 dB maximum SPL and a coverage area of 90° by 90°, the EVID-S8.2T speakers deliver consistent audibility and even sound distribution. - Pre-assembled mounting system allows 90° of horizontal rotation and 45° of vertical rotation
- 90° horizontal by 90° vertical coverage
- Fire-rated ABS plastic enclosure
- IP54-certified for enhanced weather resistance
- 8" long-throw woofer and 1" high-frequency driver
- 50 Hz to 20 kHz frequency response (-10 dB), 70 Hz to 20 kHz frequency response (-3 dB)
- 360W peak (90W continuous) power handling for 110 dB maximum SPL (116 dB peak)
- Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
- Logo can be replaced to match speaker orientation
UPC: 800549845403 In the Box Electro-Voice EVID-S8.2T 8" 2-Way 70/100V Commercial Loudspeaker (Pair, Black) 2 x Wall-Mount Brackets 2 x Dust Covers Allen Wrench 2 x Spare Grille Logos 2 x Safety Screws for Mounting Brackets 2 x Safety Screw Caps for Mounting Brackets 2 x Covers for Locking Bolts 2 x Flush Input Covers 8 x Screws for Flush Input Covers Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVID-S8.2T 8" 2-Way 70 100V Commercial Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVID-S8.2T Specs | LF Driver | 8" / 203 mm | | HF Driver | 1" / 25 mm | | Connector Type | 1 x 4-pin Euroblock connector (removable, locking) | | Maximum Wire Size | 12 AWG (2.5 mm) | | Coverage | Horizontal: 90° (nominal -6 dB)
Vertical: 90° (nominal -6 dB) | | Environmental Specifications | IP54 (per IEC-60529) | | Frequency Response | 50 Hz to 20 kHz (-10 dB)
70 Hz to 20 kHz (-3 dB) | | Sensitivity | 90 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W) | | Maximum SPL | 110 dB calculated, 116 dB peak | | Power Handling | 360 W peak (90 W with continuous pink noise for 100 hours) | | Low Impedance | Yes | | Impedance | Nominal: 8 Ohms
Minimum: 6.4 Ohms | | High-Pass Filter | Recommended: 50 Hz | | Transformer | 60 W | | Transformer Taps | 7.5 W (70 V only), 15 W, 30 W, 60 W | | Enclosure Material | Fire-rated ABS plastic | | Dimensions (H x W x D) | 15.4 x 9.8 x 8.8" / 390 x 250 x 224 mm | | Weight | 12.8 lb / 5.8 kg | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 20.5 x 18.4 x 15.1" |
