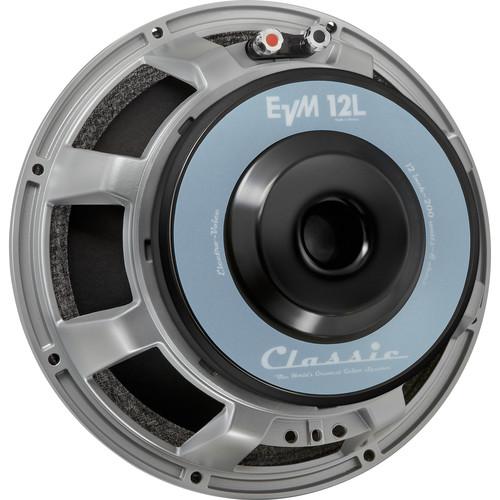

Product description The EVM12L Classic Guitar Loudspeaker from Electo-Voice is a 12" diameter speaker designed for professional, high-quality guitar amplification systems. The high-range frequency response is specifically designed for lead guitar performances and classic guitar tones. Packaged around an eight-spoke, diecast aluminum frame, the speaker features a low-mass edgewound voice coil on a laminated polyimide coil form, driven by a 16 lb magnetic structure. The speaker also features a curvilinear cone and fatigue-resistant cone suspension, and both the coil and magnetic structure are vented. This speaker can be front or rear mounted. - Cast frame creates a reduced low-frequency flex
- Edge-wound flat aluminum wire featured for maximum output and reliability
- 16.0 lb (7.3 kg) magnet assembly
UPC: 800549703956 In the Box Electro-Voice EVM12L Classic 12" Guitar Loudspeaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVM12L Classic 12" Guitar Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVM12L Specs | Power | Continuous: 200 W
RMS: 300 W
Peak: 1000 W | | Sensitivity | 100 dB | | Frequency Response | 80 to 5,000 Hz | | Nominal Impedance | 8 ohms | | Maximum Sound Pressure Level (SPL) | 100 dB (1 W / 39.4" (1.0 m)) | | Parameters | Thiele-Small Driver Parameters:
fs (free-air resonance frequency) 55 Hz
Qes (electromagnetic Q at fs): 0.245
Qms (mechanical Q at fs): 4.37
Qts (total Q at fs): 0.232
Vas (volume of air having same acoustic compliance as driver suspension): 2.9 ft3 (82.9 liters )
n0 (half-space reference efficiency:) 4.3%
Vd (peak displacement volume of diaphragm: 0.0059 ft3 (0.165 liters)
Sd (effective diaphragm area ) : 78 in2 (0.050 m2)
Xmax (peak linear displacement of diaphragm): 0.13" (3.3 mm) | | Mounting | Mounting Hole Diameter (8 evenly spaced holes): 0.28" (7.1 mm) - letter "L" drill
Bolt Circle Diameter: 11.56" (294 mm)
Baffle Opening Diameter (front or rear mounting): 11.0" (279 mm)
Optional Mounting Accessory: SMH-1 mounting hardware kit (sold separately) | | Voice Coil Diameter | 2.5" (6.35 cm) | | Overall Diameter | 12.2" (31.0 cm) | | Overall Depth | 5.5" (13.8 cm) | | Weight | 19.0 lb (8.6 kg) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 15.0 x 14.5 x 8.5" |
