User Manual for Electro-Voice EVU1062 95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Electro-Voice EVU1062 95 Single 6.5" Two-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice EVU1062 95 Single 6.5" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

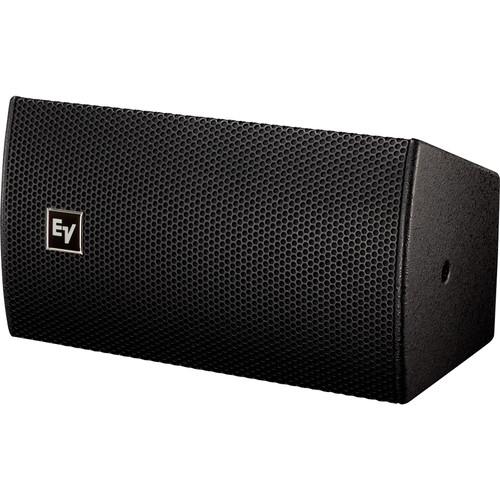

Product description The black EVU1062/95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System from Electro-Voice is a compact loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to walls and ceilings while providing optimal coverage patterns. This design was optimized for wall, stage lip and under balcony applications.The system incorporates the ICT-1-8, a high-output 1.3” diaphragm titanium compression driver coupled to a Constant Directivity 90 x 50° rotatable waveguide. The ICT-6.5-8 woofer is developed using FEA optimization to provide the high sensitivity while achieving the maximum level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint, available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full 330° unobstructed rotation of the loudspeaker if the transformer kit (not included) is installed. -
- 1.3” Diaphragm, 1.4” exit pure titanium compression driver
- 6.5” LF transducer
- Advanced third-order crossover network with HF protection
- Coverage pattern 90 x 50° constant directivity rotatable waveguide
- 92 dB sensitivity, 120 dB maximum SPL
- System rating 160 W continuous, 640 W peak
- Universal U-bracket included
- Six M8 threaded suspension points
UPC: 800549622738 In the Box Electro-Voice EVU1062/95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System (Black) Limited 5-Year Warranty U-Bracket Included Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice EVU1062 95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice EVU-1062/95 Specs | Frequency Response | -3 dB: 110 Hz to 16 kHz (half-space measurement) | | Frequency Range | -10 dB: 65 Hz to 20 kHz (half-space measurement) | | Coverage | Rotatable Coverage: 90 x 50° | | Frequency | Rec. High-Pass Frequency: 90 Hz | | Passive Crossover Frequency | 2600 Hz | | Axial Sensitivity | 92 dB (1 W/1 m) (half-space measurement) | | SPL | Maximum: 120 dB | | Power Handling | Passive
Continuous: 160 W
Peak: 640 W | | Transducer | LF Transducers: ICT-6.5-8, 6.5" (165 mm) driver
HF Transducer: ICT-1-8, 1.3" (33 mm) diaphragm compression driver | | Impedance | Nominal: 8 Ohms
Minimum: 6 Ohms | | Connectors | Single four-pin 12 AWG Phoenix/Euro Block screw-terminals | | Enclosure | 9-ply hardwood plywood with textured paint | | Grille | 18 GA steel with cloth | | Environmental | IEC 60529 | | Suspension | 6 x M8 threaded suspension points | | Dimensions (H x W x D) | 8.21 x 14.6 x 8.14" (208 x 370 x 207 mm) | | Weight | 14 lb (6.5 kg) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 13.0" |
