User Manual for Electro-Voice FRi-2082 - Dual 8" Two-Way Full-Range Loudspeaker Click to enlarge the picture
Contents of the user manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way
- Product category: PA Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice PA Speakers
|
User manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

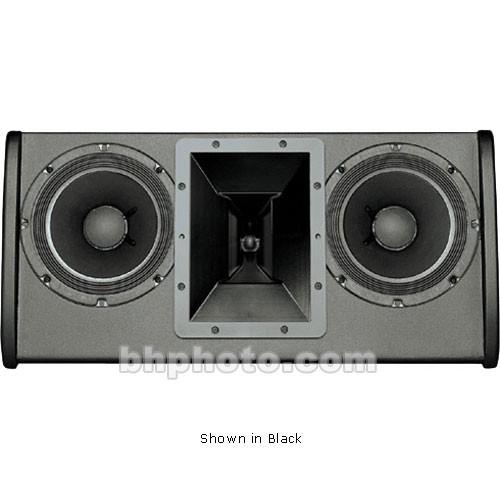

Product description The FRi-2082 from Electro-Voice is a two-way ceiling or wall mount speaker for fixed installations, with a 200-watt power handling capacity that is designed for use in larger club, sports, and recreational venues.
The speaker has a compact, low profile design, and features dual 8" woofers and a 1" horn-loaded titanium compression driver, housed in a reinforced 13-ply plywood cabinet. The speaker comes with a mounting bracket for horizontal or vertical orientation. - Full-range two-way installation P.A. speaker for large sports, recreational and club venues
- 200-watt power handling capacity
- 1" titanium tweeter loaded into constant-directivity horn
- Symmetrical cross section facilitates both ceiling and wall mounting, with horizontal or vertical placement options
- Versatile 45º aiming angle for under-balcony, on-wall, and stage monitoring applications
- LF-optimized vented enclosure
- Low-profile slanted design
- Secure reinforced cabinet construction
- Two 3/8-16 threaded mounting/suspension points
UPC: 800549699914 In the Box Electro-Voice FRi-2082 - Dual 8" Two-Way Full-Range Loudspeaker (White) Mounting Bracket Five (5) Year Limited Warranty User Manual PDF 791.9kbfzdcuzqw Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way Full-Range Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice FRI-2082 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 200 W RMS
800 W Peak | | System Impedance | 8 Ohms (Passive) | | | | HF Driver | 1 x 1" / 25 mm Titanium Compression Driver | | LF Driver | 2 x 8" / 20.3 cm Woofer | | | | Frequency Range | 45 Hz to 20 kHz -10 dB | | Frequency Response | 70 Hz to 20 kHz -3 dB | | Maximum SPL | 116 dB (Continuous)
122 dB (Peak) | | Coverage Angle | 100° H x 100° V | | Speaker Sensitivity | 93 dB SPL | | | | Audio I/O | 1 x Barrier Strip | | | | Construction Material | Plywood | | Dimensions | 24.4 x 14.0 x 8.8" / 222.0 x 620.0 x 356.0 mm | | Weight | 40.1 lb / 18.2 kg | | | | Package Weight | 44.4 lb | | Box Dimensions (LxWxH) | 27.38 x 15.14 x 13.12" |
