Product description

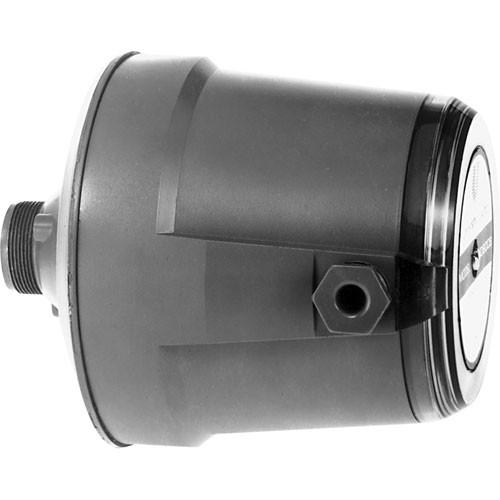

The ID60DT Compression Driver with Transformer is a 60W driver for re-entrant horns which is equipped with a 2" diameter voice-coil, and a 25/70.7V line-matching transformer. It is designed for medium-power and high-level acoustic output P.A. applications. The driver features a weather-resistant phenolic diaphragm, and a 1" screw-on exit. It is enclosed within a hinged cycolac rear housing for easy access and connection to a sound system, via a BX conduit connector, which is provided together with a plug-in, field replaceable diaphragm assembly. The ID60DT features a rim centered ferrite magnet structure, and a screwdriver operated power-tap select switch. It is suitable both for indoor and outdoor applications.
  • 70/25V line-matching transformer
  • Humidity and fungus resistant exterior
In the Box Electro-Voice ID60DT Compression Driver with 25V/70.7V Transformer (60W)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Electro-Voice ID60DT Compression Driver with 25V 70.7V Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Electro-Voice ELID60DT Specs

    Construction Rugged diecast housing with weatherproof finish
    1 x 3/8"-18, 1/2" long thread
    Compatibility Horns: Coberflex IIB, Coberflex III, PH, 2WP, SMH, SH
    Connectors and Control 1 x Power tap, select switch (screw driver operated)
    1 x "com" connector terminal
    1 x Connector for 25 V distributed systems
    1 x Connector for 70 V distributed systems
    Frequency Response 300 Hz - 4 kHz, ±5 dB
    Maximum Power Handling 60 W (8 hours, 500 Hz - 5 kHz pink noise)
    Impedance Nominal: 8 Ω
    Minimum: 7.5 Ω (Cobraflex horns above 500 MHz)
    SPL 107 dB SPL for 1 W @ 1 m
    Voice Coil Diameter 2.0" (5.1 cm)
    Magnet Weight: 1.06 lb (0.48 kg)
    Material: Strontium ferrite
    Flux Density 1.17 Tesla
    Dimensions (Ø x H) 5.6 x 6.4" (14.3 x 16.2 cm)
    Weight 7.4 lb (3.4 kg)

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 92 owners. Add your rating and experience with the product.
