User Manual for Electro-Voice Mb200W Wall Ceiling U-Bracket Kit for Sx200W Speakers Click to enlarge the picture
Contents of the user manual for the Electro-Voice Mb200W Wall Ceiling U-Bracket Kit
- Product category: Speaker Stands & Mounts Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Speaker Stands & Mounts
|
User manual for the Electro-Voice Mb200W Wall Ceiling U-Bracket Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

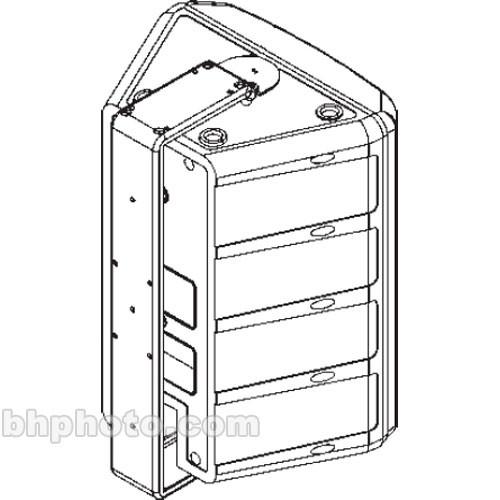

Product description The Electro Voice MB200W is a mounting bracket designed for attaching the EV200 Series Speakers to either a wall or ceiling. This robust bracket connects to structurally sound cabinet points allowing for maximum angle flexibility in either a horizontal or vertical position.The bracket is finished in white for use with the SX200W loudspeaker. - Versatile design allows the speaker to be aimed at any angle from wall or ceiling
- Provides a rigid frame for flying one or two speakers
- Creates arrays of two to six speakers when used with the Mb300 Horizontal Array Kit
- May be used in conjunction with OmniMount Series 100 support system
UPC: 800549363945 In the Box Electro-Voice Mb200W Wall/Ceiling U-Bracket Kit for Sx200W Speakers Bracket M8 x 1.25 hex head bolt 5/16 split ring lock washer 3/8-24 hex head bolt 3/8 split ring lock washer Friction washer Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Mb200W Wall Ceiling U-Bracket Kit for Sx200W Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Mb200W Specs | Wall Mounting Holes | Three 5/16 in. (8-mm) diameter holes spaced 8 in. (20.3cm) apart | | Enclosure Mounting Holes | Two 5/16 in. (8-mm) diameter holes, top and bottom | | Material | 10-guage cold-rolled steel | | Finish | White wrinkle powdered coat | | Weight | 7.5 lbs. (3.4kg) | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 26.5 x 12.2 x 4.9" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
