User Manual for Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone
- Product category: Instrument Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Instrument Microphones
 |
User manual for the Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

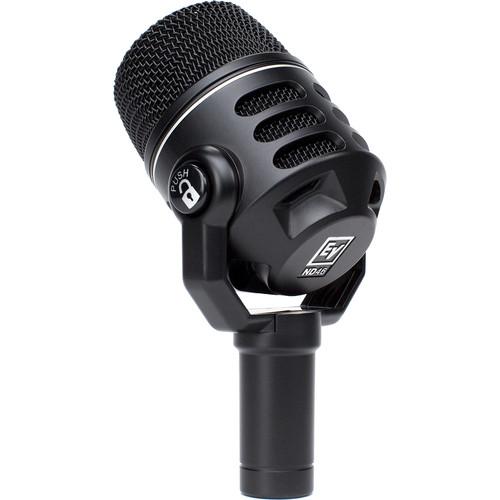

Product description - ND46 DynamicSupercardioid Instrument Microphone
The ND46 Dynamic Supercardioid Instrument Microphone from Electro-Voice is a high-performance, large-diaphragm instrument microphone. It can be used to capture a wide variety of instrument sounds for recording studio, live sound reinforcement, and rehearsal applications. The microphone offers excellent isolation from other nearby instruments and has a 70 Hz to 18 kHz frequency response. The ND46 capsule is tuned to deliver a lively and balanced sound and requires no power to operate. In addition, the microphone features a locking pivoting head that makes mic placement easy and precise. It is built with a 3-pin XLR connector. - Excellent Isolation
- Excellent isolation with a lively and balanced sound
- Large-diaphragm dynamic capsule that creates a rich and detailed frequency response
- Offering easy mic placement with a locking pivoting head, the ND46 can achieve optimum mic placement in any situation by pushing a button, pivoting the head into position, and releasing the button to lock
- A shock-mounted capsule minimizes handling noise and helps eliminate low-frequency bumps and thumps
- Humbucking coil guards against line hum and allows you to use with confidence near speaker cabinets and EMF-generating equipment racks
- Memraflex grille resists denting. A durable and tight-mesh grille is built to withstand extraordinarily rough treatment
UPC: 800549805391 In the Box Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ND46 Dynamic Supercardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ND46 Specs | Frequency Response | 70 Hz to 18 kHz | | Material of Construction | Die-cast zinc
Black polyurethane paint | | Connector Type | 3-pin XLR | | Diameter | 2.2" (56 mm) | | Impedance | 350 Ohms, balanced | | Maximum SPL | > 140 dB | | Type of Microphone | Instrument | | Open Circuit Voltage | 2.4 mV/Pascal | | Polar Pattern | Supercardioid | | Power Requirement | Passive | | Height | 5.67" (144.1 mm) | | Weight | 10.9 oz (309 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.0 x 5.2 x 2.9" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
