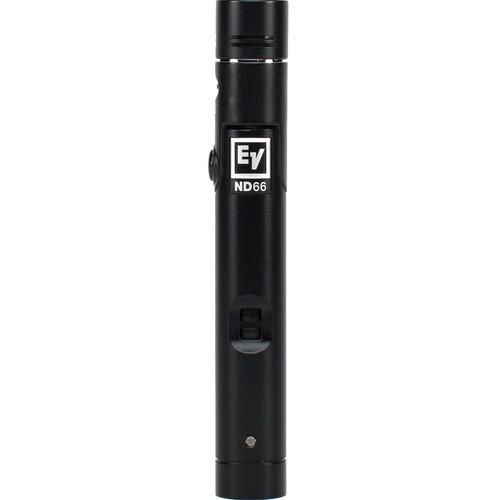

User Manual for Electro-Voice ND66 Condenser Cardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice ND66 Condenser Cardioid Instrument Microphone
- Product category: Small Diaphragm Condenser Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Small Diaphragm Condenser
|
User manual for the Electro-Voice ND66 Condenser Cardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description - ND66 Condenser Cardioid Instrument Microphone
The ND66 Condenser Cardioid Instrument Microphone from Electro-Voice is a versatile small-diaphragm condenser with a locking pivoting head. This condenser microphone is ideal for drum overheads, hi-hats, close-miked drums, acoustic guitar, and piano. -
- Self-biased condenser element is vividly responsive to sound sources that need a mic which translates transient details very well
- Allows for appropriate mic placement in virtually any situation by pushing a button, pivoting the head into position, and releasing the button to lock
- Captures all details of percussive and stringed instruments to give a clean, crisp and detailed condenser sound
- With -10 and -20 dB pads, the mic provides the necessary gain reduction to prevent the mic element from overloading
- Selectable 75 and 150 Hz high-pass filters frequencies are strategically chosen to eliminate bothersome low frequencies from the signal path
UPC: 800549805407 In the Box Electro-Voice ND66 Condenser Cardioid Instrument Microphone Gig Bag Stand Clip Euro Thread Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ND66 Condenser Cardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ND66 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 20 kHz | | Maximum SPL | Cardioid: 146 dB SPL | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: 10 mV/Pa | | Dynamic Range | Cardioid: 126 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 5.63" / 14.30 cm | | Diameter | 0.83" / 21 mm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.0 x 5.2 x 2.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
