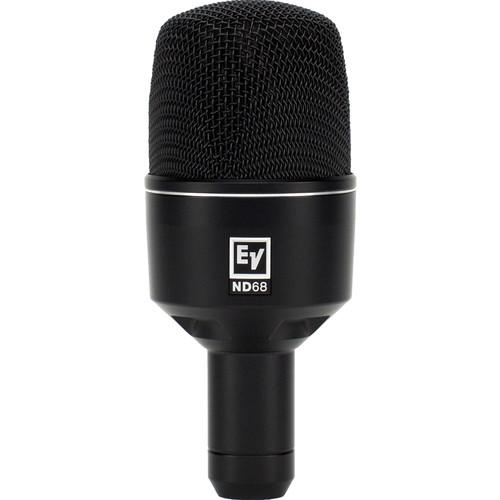

Product description - ND68 Dynamic Supercardioid Bass Drum Microphone

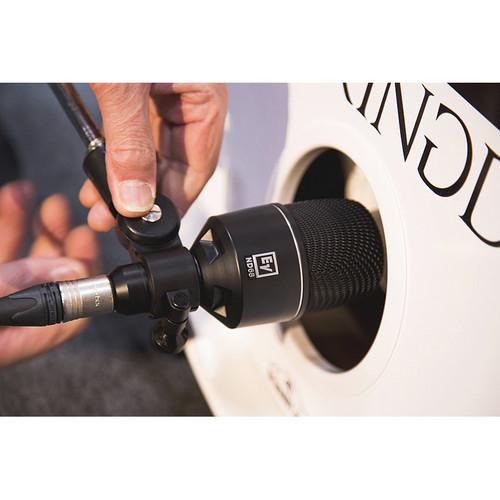

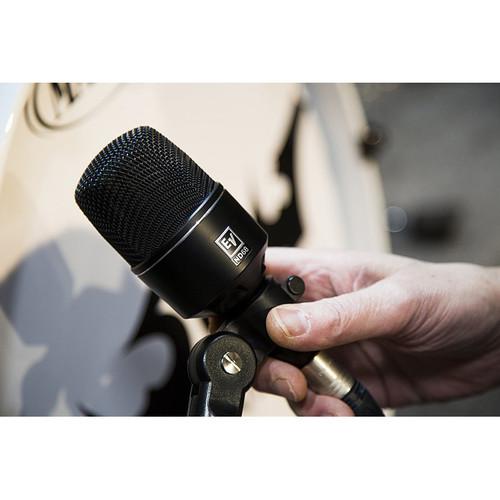

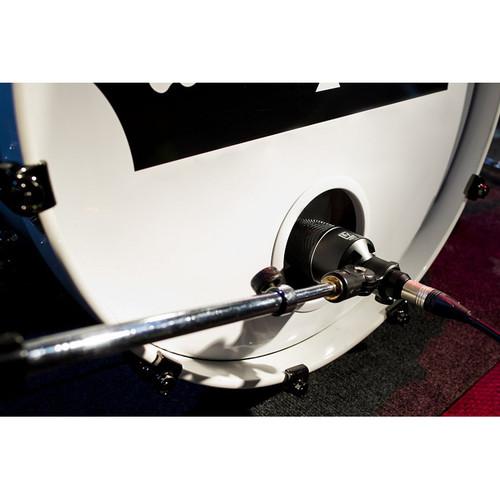

The ND68 Dynamic Supercardioid Bass Drum Microphone from Electro-Voice is a high-performance, large-diaphragm kick drum and low-frequency instrument microphone. It can be used to capture deep low-end audio and deliver a relaxed midrange, as well as high-frequency content in studio, live sound, and rehearsal applications. The microphone offers excellent isolation from other nearby instruments and has a 20 Hz to 11 kHz frequency response. The ND68 capsule contains a large Mylar diaphragm, which delivers a detailed frequency response by combining a large surface area for tonal balance with its low-mass material. It is capable of handling 144 dB SPL and is comfortable managing close applications of high sound sources. In addition, the capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. The Memraflex grille is made of a durable tight-mesh grille wire that withstands rough treatment. A gig bag, a stand clip, and a euro thread adapter are also included. - Acoustic Isolation
- With deep lows and top-end punctuation
- Large-Diaphragm Dynamic Capsule
- Creates a rich and detailed frequency response
- High SPL Handling Capability
- Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL
- Humbucking Coil Guards Against Line Hum
- Use with confidence near speaker cabinets and EMF-generating equipment racks
- Memraflex Grille Resists Denting
- A durable and tight-mesh grille is built to withstand rough treatment
UPC: 800549806299 In the Box Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone Gig Bag 320 Microphone Stand Clamp wwuzaewwsfybyfrzq Euro Thread Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice ND68 Specs | Frequency Response | 20 Hz to 11 kHz | | Material of Construction | Die-cast zinc
Black polyurethane paint | | Connector Type | 3-pin XLR | | Diameter | 2.39" (60.8 mm) | | Element | Dynamic | | Impedance | 150 Ohms, Low-Z balanced | | Maximum SPL | >140 dB | | Type of Microphone | Instrument | | Open Circuit Voltage | 0.8 mV/Pascal | | Polar Pattern | Supercardioid | | Power Requirement | Passive | | Height | 5.63" (143 mm) | | Weight | 13.19 oz (374 g) |
