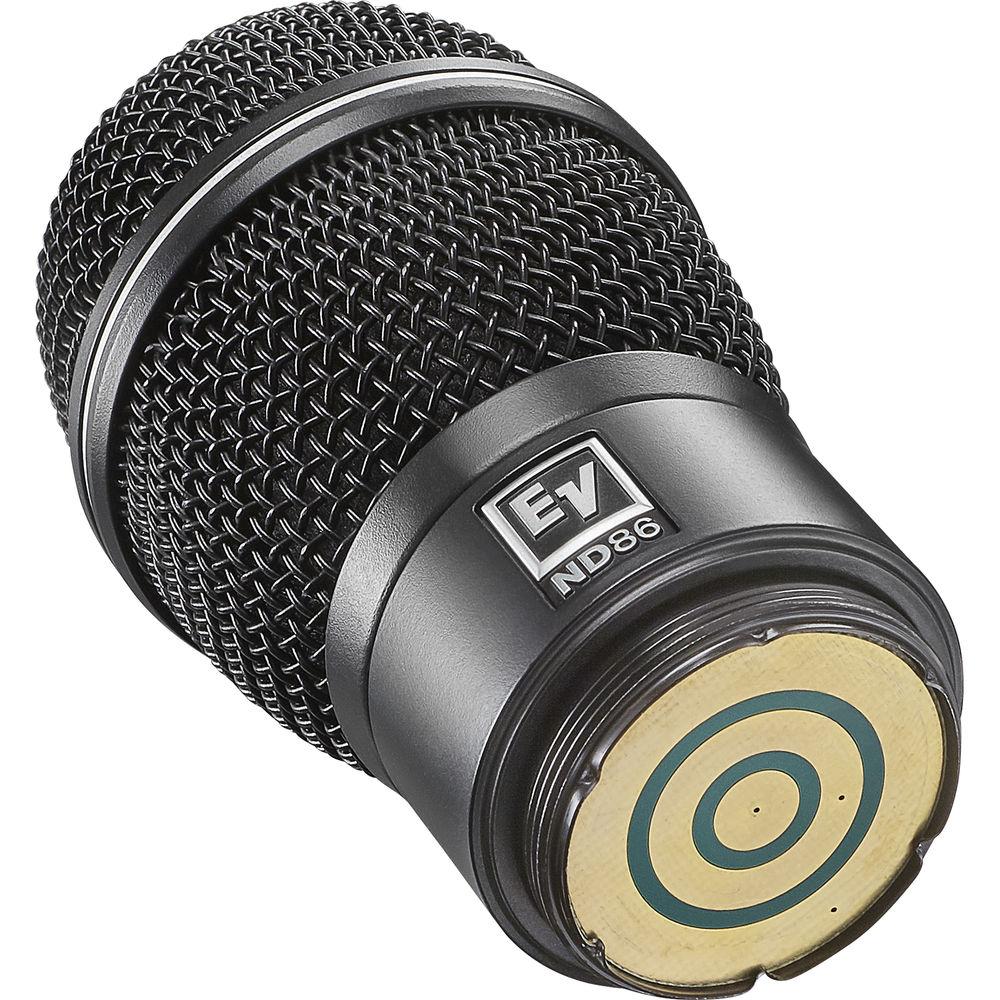

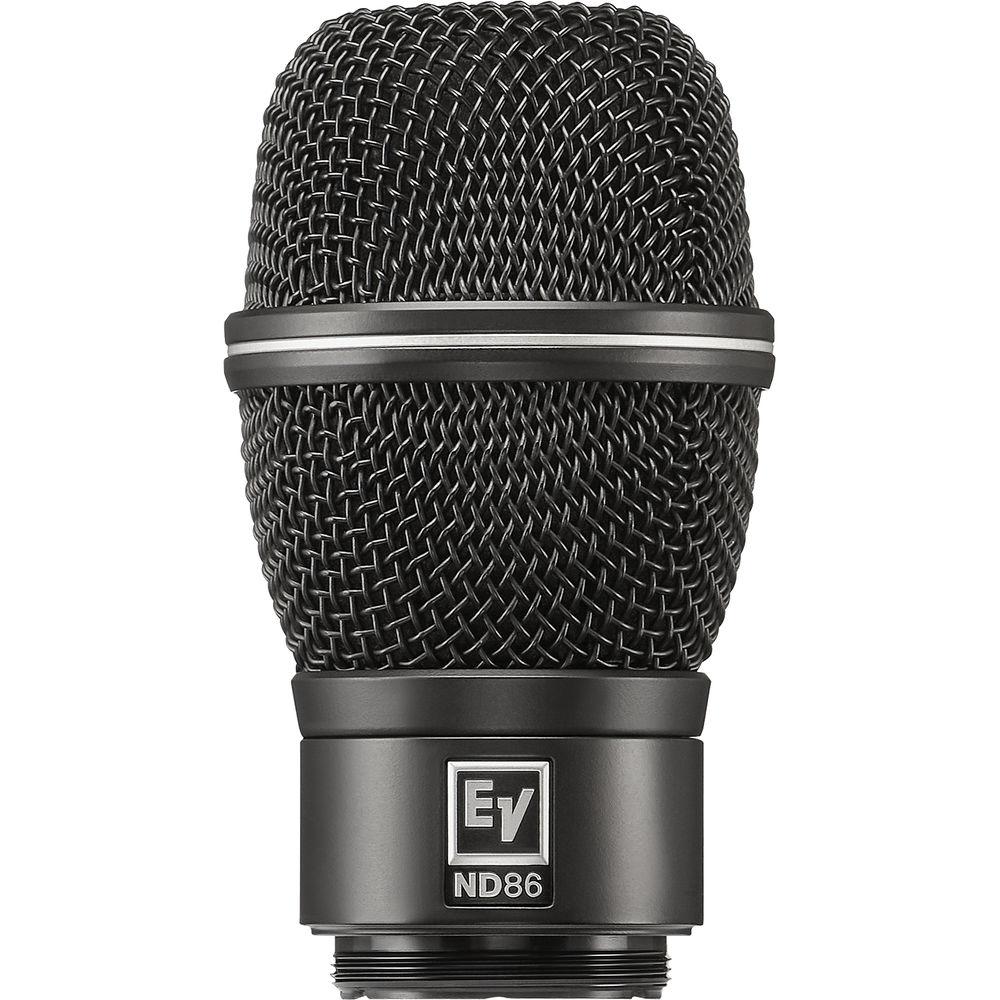

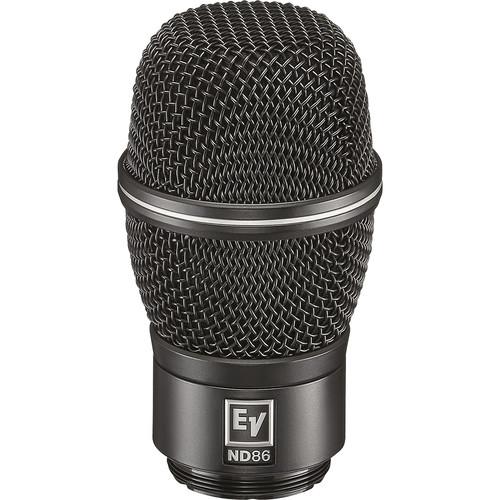

User Manual for Electro-Voice ND86-RC3 Wireless Head with ND86 Capsule Click to enlarge the picture
Contents of the user manual for the Electro-Voice ND86-RC3 Wireless Head with ND86
- Product category: Wireless Transmitters Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Transmitters
 |
User manual for the Electro-Voice ND86-RC3 Wireless Head with ND86 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The ND86-RC3 Wireless Head with ND86 Capsule from Electro-Voice is a robust, high performance, dynamic supercardioid thread-on vocal microphone head for wireless handheld transmitters. It can be used with Electro-Voice—and many other brands—wireless handheld transmitters (sold separately) that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention.Designed for excellent all-around voice applications, the ND86-RC3 capsule delivers crisp, clear, and balanced vocal presence as well as isolation from sound on the stage. It contains a large Mylar diaphragm that delivers a rich and detailed frequency response. It features an innovative capsule shockmount system consisting of a 4-point suspension around the circumference of the capsule and a tuned pneumatic pump at the capsule base that reduces handling noise.Furthermore, the Memraflex grille is made of a durable tight-mesh grille wire that withstands rough treatment. The capsule uses a humbucking coil that attenuates AC hum and electro-magnetic interference. You can use the ND86-RC3 Wireless Head with ND86 Capsule with confidence near speaker cabinets and EMF generating equipment racks. - Thread-on microphone head for Electro-Voice, and other brands, wireless handheld transmitters
- Excellent acoustic control in even the largest of venues: present, smooth, and detailed sound
- Large-diaphragm dynamic capsule creates a rich and detailed frequency response
- Shock-mounted capsule minimizes handling noise
- Memraflex grille resists denting
UPC: 800549873635 In the Box Electro-Voice ND86-RC3 Wireless Head with ND86 Capsule Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice ND86-RC3 Wireless Head with ND86 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.346.239 Specs | Encryption | None | | Audio I/O | None | | Frequency Response | 30 Hz to 17 kHz | | Form Factor | Handheld Capsule | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Range | 30 Hz to 17 kHz 70 Hz to 17 kHz (Far) | | Maximum SPL | 134.5 dB SPL RMS | | THD | 1% | | Impedance | 1000 Ohms | | Sensitivity | 5.6 mV/Pa at 1 kHz | | Operating Voltage | 4 to 8 V | | Length | 3.6" / 9.14 cm | | Diameter | 2.0" / 50.80 mm | | Weight | 6.5 oz / 184 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
