User Manual for Electro-Voice PA2400T Rackmount 2-Channel 400W Power Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Voice PA2400T Rackmount 2-Channel 400W Power
- Product category: 70-Volt Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice 70-Volt Amplifiers
|
User manual for the Electro-Voice PA2400T Rackmount 2-Channel 400W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

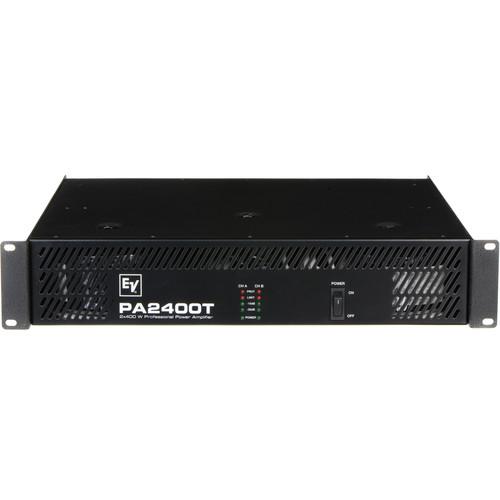

Product description The Electro-Voice PA2400T is a rackmount 400W 2-channel power amplifier with a high-performance output transformer ideal for 50V/70V/100V systems or 4-/8-Ohm setups in schools, houses of worship, retail spaces, offices, and more. This amplifier has a simple, easy-to-use interface with the power switch and indicator LEDs on the front panel, while the stepped level controls and switches for the selectable 50/70/300 Hz high-pass filter and dual/parallel/bridged mode are on the rear. Euroblock input and output connectors are utilized for quick and easy setup. Comprehensive protection circuitry protects your amplifier from damage caused by overheating, overloads, and short-circuit issues. The output has a delayed connection at power-up to prevent damage to your speakers. Variable-speed fans and a flow-through-chassis design direct airflow from front to rear, and keep the amplifier cool and running smoothly. Integrated rack ears allow direct mounting of the 2 RU enclosure in a standard 19" equipment rack. - Rugged rack-mountable 2 RU housing with integrated rack ears
- Choose to operate in dual mono, parallel, or bridged mono mode
- 400W rated output power with low noise and distortion
- Dual Euroblock Phoenix-type input connectors
- 12-pin Euroblock output connector for 50V/70V/100V or 4/8 Ohms
- Rear-panel volume control
- Selectable high-pass filter at 50/70/300 Hz
- Front-to-rear airflow for reliable operation
- Protection circuitry for overheating, audio limiting, delayed output connection at power-up, and peak current limiting
- Front-panel LEDs for power, signal, limit, and protect
- Voltage selector for international use
UPC: 800549444309 In the Box Electro-Voice PA2400T Rackmount 2-Channel 400W Power Amplifier (50V/70V/100V) Power Cable 4 x Attachable Feet Screwlock Connectors for All Inputs and Outputs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PA2400T Rackmount 2-Channel 400W Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.120.173 Specs | Load Impedance | 50/70/100 V or 4/8 Ohms | | Maximum Output Power | Mid-Band at 50/70/100 V or 4 Ohms: 430 W (1% THD, 1 kHz)
Mid-Band at 8 Ohms: 215 W
Single Channel at 50 V: 480 W
Single Channel at 70 V: 500 W
Single Channel at 100 V: 520 W
Single Channel at 4 Ohms: 520 W
Single Channel at 8 Ohms: 260 W
Bridged at 8 Ohms: 860 W | | Rated Output Power | At 50/70/100 V or 4 Ohms: 400 W (less than 0.2% THD, 20 Hz to 20 kHz, 6.25-Ohm load at 50 V, 12.25-Ohm load at 70 V, 25-Ohm load at 100 V)
At 8 Ohms: 200 W | | Maximum RMS Voltage Swing | At 50 V: 59 V (1% THD, 1 kHz)
At 70 V: 82 V (1% THD, 1 kHz)
At 100 V: 117 V (1% THD, 1 kHz)
| | Voltage Gain | At 50 V: 36.2 dB (1 kHz)
At 70 V: 39.1 dB (1 kHz)
At 100 V: 42.2 dB (1 kHz)
At 4/8 Ohms: 34.3 dB (1 kHz) | | Slew Rate | At 50 V: 34 V/
