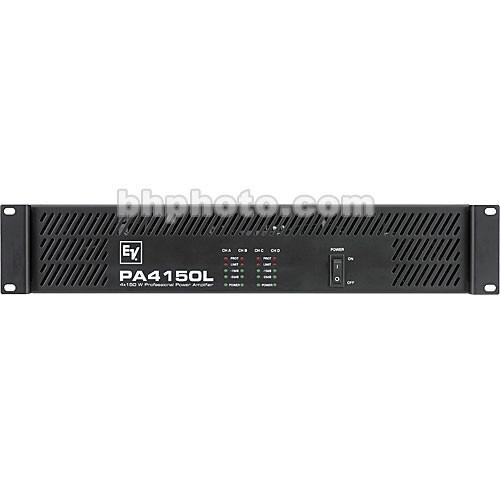

Product description The Electro-Voice PA4150L is a rackmount 150W 4-channel power amplifier offering versatile configurability for 4-/8-Ohm setups in schools, houses of worship, retail spaces, offices, and more. This amplifier has a simple, easy-to-use interface with the power switch and indicator LEDs on the front panel, while the stepped level controls and switches for the selectable 50/300 Hz high-pass filters and dual/parallel/bridged modes are on the rear. Euroblock input and output connectors are utilized for quick and easy setup.Comprehensive protection circuitry protects your amplifier from damage caused by overheating, overloads, and short-circuit issues. The output has a delayed connection at power-up to prevent damage to your speakers. Variable-speed fans and a flow-through-chassis design direct airflow from front to rear and keep the amplifier cool and running smoothly. Integrated rack ears allow direct mounting of the 2 RU enclosure in a standard 19" equipment rack. - Rugged rack-mountable 2 RU housing with integrated rack ears
- Four amplifier channels; choose to operate each pair in dual mono, parallel, or bridged mono mode
- 150W rated output power with low noise and distortion
- Four Euroblock Phoenix-type input connectors
- 4-pin Euroblock output connectors for connection to 4-/8-Ohm speakers
- Rear-panel volume controls
- Selectable high-pass filters at 50/300 Hz
- Front-to-rear airflow for reliable operation
- Protection circuitry for overheating, audio limiting, delayed output connection at power-up, and peak current limiting
- Front-panel LEDs for power, signal, limit, and protect
- Voltage selector for international use
UPC: 800549444330 In the Box Electro-Voice PA4150L Rackmount 4-Channel 150W Power Amplifier (4/8 Ohms) Power Cable 4 x Attachable Feet Screwlock Connectors for All Inputs and Outputs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PA4150L Rackmount 4-Channel 150W Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.120.176 Specs | Load Impedance | 4/8 Ohms | | Maximum Output Power | Mid-Band at 4 Ohms: 160 W (1% THD, 1 kHz)
Mid-Band at 8 Ohms: 100 W (1% THD, 1 kHz)
Single Channel at 4 Ohms: 200 W (dynamic headroom, IHF-A)
Single Channel at 8 Ohms: 120 W (dynamic headroom, IHF-A)
Bridged at 8 Ohms: 315 W (1% THD, 1 kHz) | | Rated Output Power | At 4 Ohms: 150 W (less than 0.2% THD, 20 Hz to 20 kHz)
At 8 Ohms: 75 W (less than 0.2% THD, 20 Hz to 20 kHz) | | Maximum RMS Voltage Swing | 32.1 V (1% THD, 1 kHz) | | Voltage Gain | 30 dB (1 kHz) | | Slew Rate | 16 V/
