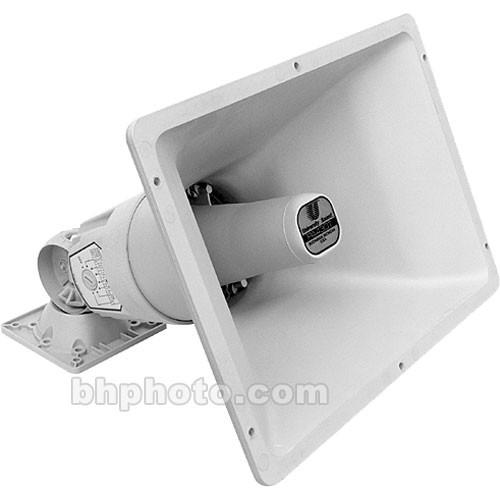

Product description The Electro-Voice PA430 is a 30-watt constant-directivity horn with an all-weather, moisture resistant ASA construction, designed for permanent indoor and outdoor P.A. and paging installations. - Paging and P.A. constant-directivity installation horn with 30-watt power handling
- 1.5" voice coil, ferrite magnet for long-term reliability in permanent installations
- Weather-, moisture-, UV-, and moisture/fungus-resistant construction
- Flexible mounting design for precise positioning and adjustment
UPC: 800549444811 In the Box Electro-Voice PA430 - 30-Watt Constant-Directivity Paging Projector P.A. or Installation Horn 12" Connector Cable 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PA430 - 30-Watt Constant-Directivity Paging Projector P.A. or Installation Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PA430 Specs | Frequency Response | 400 Hz - 6.5 kHz +/-5dB | | Maximum Power Handling | 30 Watts | | Impedance | 8 Ohms | | SPL | 107dB | | Beamwidth | -6dB @ 1.0kHz - 10kHz | | Horizontal Beamwidth | 60° (+20°, -20°) | | Vertical Beamwidth | 40° (+20°, -10°) | | Directivity | 15.2 @ 2kHz | | Construction | High-impact Acrylic-Styrene-Acrylonitrile(ASA), Nylon swivel base and rear housing | | Magnet | Weight:0.63 lb(0.28 kg)
Material: Strontium Ferrite | | Voice Coil | 1.5" (38mm) | | Dimensions (HxWxD) | 8.9 x 12.1 x 12.2" (226 x 307 x 310mm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 16.2 x 12.8 x 9.8" |
