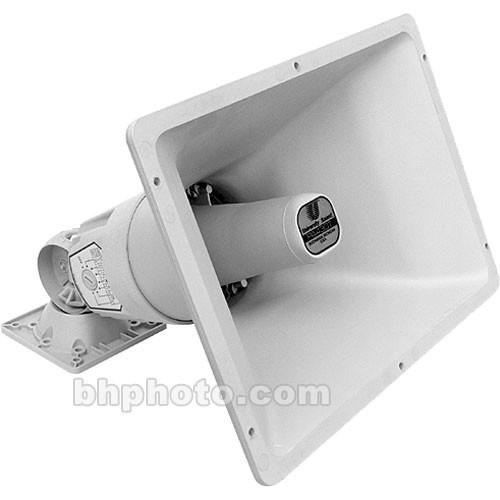

User Manual for Electro-Voice PA430T - 30-Watt Constant-Directivity Installation Horn with 25V 70.7V 100V Transformer Click to enlarge the picture
Contents of the user manual for the Electro-Voice PA430T - 30-Watt Constant-Directivity Installation
- Product category: Installed Speakers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Installed Speakers
|
User manual for the Electro-Voice PA430T - 30-Watt Constant-Directivity Installation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice PA430T is a 30-watt constant-directivity horn with an all-weather, moisture resistant ASA construction, designed for permanent indoor and outdoor P.A. and paging installations. The unit is equipped with a transformer, with connections for 25V, 70.7V and 100V distributed systems, and a screwdriver-operated power tap select switch. - Paging and P.A. constant-directivity installation horn with 30-watt power handling and 25/70.7/100V transformer
- Power taps include 1.9W, 3.7W, 7.5W, 15W, and 30W(70.7V and 100V only)
- 1.5" voice coil, ferrite magnet for long-term reliability in permanent installations
- Weather-, moisture-, UV-, and moisture/fungus-resistant construction
- Flexible mounting design for precise positioning and adjustment
UPC: 800549444828 In the Box Electro-Voice PA430T - 30-Watt Constant-Directivity Installation Horn with 25V/70.7V/100V Transformer 12" Connector Cable 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PA430T - 30-Watt Constant-Directivity Installation Horn with 25V 70.7V 100V Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PA430T Specs | Frequency Response | 400 Hz - 6.5 kHz +/-5dB | | Maximum Power Handling | 30 Watts | | Impedance | 8 Ohms | | SPL | 107dB | | Beamwidth | -6dB @ 1.0kHz - 10kHz | | Horizontal Beamwidth | 60° (+20°, -20°) | | Vertical Beamwidth | 40° (+20°, -10°) | | Directivity | 15.2 @ 2kHz | | Construction | High-impact Acrylic-Styrene-Acrylonitrile(ASA), Nylon swivel base and rear housing | | Magnet | Weight:0.63 lb(0.28 kg)
Material: Strontium Ferrite | | Voice Coil | 1.5" (38mm) | | Dimensions (HxWxD) | 8.9 x 12.1 x 12.2" (226 x 307 x 310mm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 16.4 x 12.4 x 9.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
