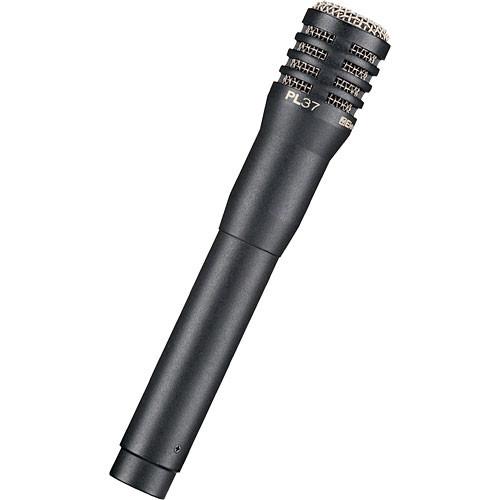

User Manual for Electro-Voice PL37 Cardioid Condenser Overhead Cymbal Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice PL37 Cardioid Condenser Overhead Cymbal
- Product category: Small Diaphragm Condenser Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Small Diaphragm Condenser
|
User manual for the Electro-Voice PL37 Cardioid Condenser Overhead Cymbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The PL37 Overhead Microphone from Electrovoice features a tight-cardioid polar pattern and contoured frequency response well suited for capturing drum cymbals and other high- and mid-frequency instruments. The cardioid polar pattern eliminates off-axis noise and feedback.The 50 Hz to 16 kHz frequency response, eliminates low-frequency noise and accentuates mid-range and high frequencies. The PL37 features a self-biased condenser element for crisp, detailed audio reproduction and is an ideal solution for recording and sound reinforcement alike. - Tight-Cardioid Polar Pattern
- The cardioid polar pattern eliminates off-axis noise and feedback.
- Contoured Frequency Response
- The 50 Hz to 16 kHz frequency response, eliminates low-frequency noise and accentuates mid-range and high frequencies.
- Self-Biased Condenser Element
- The PL37 features a self-biased condenser element for crisp, detailed audio reproduction and is an ideal solution for recording and sound reinforcement alike.
UPC: 701001084845 In the Box Electro-Voice PL37 Cardioid Condenser Overhead Cymbal Microphone Stand Adapter with Euro Thread Insert Soft Zippered Gig Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PL37 Cardioid Condenser Overhead Cymbal Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PL37 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 16 kHz | | Signal to Noise Ratio | 69 dB | | Equivalent Noise Level | 25 dB A-Weighted | | Maximum SPL | 132 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | 7 mV/Pa at 1 kHz | | Dynamic Range | 107 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4 mA | | Operating Voltage | 11 to 52 V | | Length | 6.4" / 16.26 cm | | Diameter | 1.14" / 28.96 mm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.6 x 5.6 x 3.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
