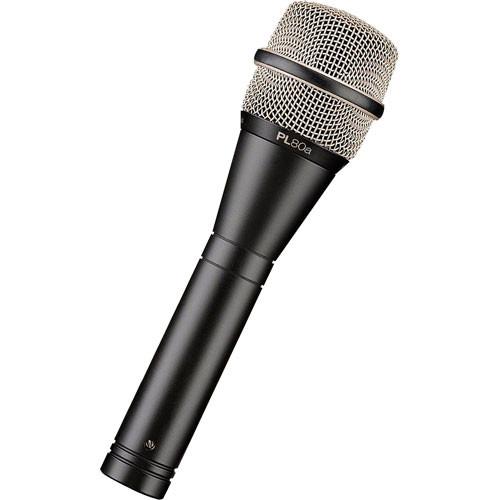

User Manual for Electro-Voice PL80a Handheld Supercardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice PL80a Handheld Supercardioid Dynamic Microphone
- Product category: Dynamic Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Dynamic Microphones
|
User manual for the Electro-Voice PL80a Handheld Supercardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Finished in black with a silver grille, the Electro-Voice PL80a is a PL Series handheld supercardioid dynamic microphone offering an EQ-friendly tone for optimal reproduction of vocals, speech, and instruments in concerts, public address, houses of worship, and live stage applications. Its dynamic capsule is shock-mounted to reduce handling noise. It delivers a frequency response of 80 Hz to 16 kHz with a gentle boost centered at approximately 5 kHz. Its neodymium magnet provides a high output and low noise floor without the need for external power. The supercardioid polar pattern consistently rejects sound at its off-axis points and yields high immunity to feedback. The XLR 3-pin output ensures compatibility with most microphone preamps, mixer inputs, and portable PA systems. The PL80a ships with a mic stand adapter and a soft, zippered gig bag. - Supercardioid polar pattern delivers tight directionality, high gain before feedback, and enhanced rejection of off-axis sound at points 120 degrees to the rear of the mic
- Neodymium magnet offers enhanced output and operational stability
- Shock-mounted capsule minimizes handling noise and impedes the transfer of vibration through the mic stand
- Rugged construction and fine mesh Memraflex grille provide tour-worthy durability
UPC: 701001084814 In the Box Electro-Voice PL80a Handheld Supercardioid Dynamic Microphone (Black with Silver Grille) Stand Adapter with Euro-Thread Insert Soft Zippered Gig Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PL80a Handheld Supercardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PL80A Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 80 Hz to 16 kHz | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | 2.2 mV/Pa at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 7.44" / 189 mm | | Diameter | 2.00" / 50.7 mm | | Weight | 11.75 oz / 333 g | | | | Package Weight | 1.26 lb | | Box Dimensions (LxWxH) | 9.5 x 5.0 x 3.0" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
