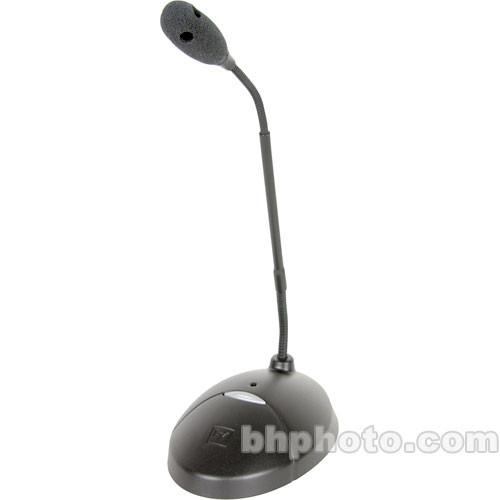

User Manual for Electro-Voice PolarChoice 5 Desktop Satellite Microphone - Miniature Multi-Pattern Gooseneck Podium Microphone for Telex and Electro-Voice Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Electro-Voice PolarChoice 5 Desktop Satellite Microphone
- Product category: Microphones for Wireless Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Microphones for Wireless
|
User manual for the Electro-Voice PolarChoice 5 Desktop Satellite Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice PolarChoice podium microphones provide the flexibility and sonic quality needed to capture speech in any application. The PolarChoice series gooseneck microphones feature a dual capsule design that provides four user switchable polar patterns. Omnidirectional, cardioid, super-cardioid and hyper-cardioid are all selectable and provide the flexibility to perform in highly ambient environments or in applications where a generous pick up area is desired.The PC 5 Satellite gooseneck microphone measures 5-inches (127mm) in length and features a desk top mount that accommodates Electro-Voice and Telex wireless belt pack transmitters, enabling completely wireless operation. The integrated desk stand features a multifunctional, programmable switch that provides On/Off, and mute options. The attached 10-foot microphone cable terminates to a standard 3-pin XLR male connection.The PolarChoice series gooseneck microphones are at home in houses-of-worship, auditoriums, board rooms, conference halls, etc. - Wireless Operation
- The microphone base features a compartment that reveals a TA4-female connection and accommodates Electro-Voice and Telex wireless belt-pack transmitters. The transmitters enable dependable wireless operation.
- Switchable Polar Patterns
- The PolarChoice series gooseneck microphones feature a dual capsule design capable of omnidirectional, cardioid, super-cardioid and hyper-cardioid polar patterns.
- Programmable Switch
- The On/Off switch can be programmed to operate as a Mute (cough) switch.
- Low-Frequency Roll-Off
- The low-frequency roll-off filter eliminates unwanted low-frequency noise due to vibration, wind, proximity effect, etc.
UPC: 701001018673 In the Box Electro-Voice PolarChoice 5 Desktop Satellite Microphone - Miniature Multi-Pattern Gooseneck Podium Microphone for Telex and Electro-Voice Wireless Transmitters Multiport Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PolarChoice 5 Desktop Satellite Microphone - Miniature Multi-Pattern Gooseneck Podium Microphone for Telex and Electro-Voice Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PCS5 Specs | Transducer | Dual Condenser, Back Electret | | Polar Pattern | Omnidirectional, Cardioid, Supercardioid, Hypercardioid | | Frequency Response | 50Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | < 32 dB SPL "A" weighted | | Maximum Input Sound Level | > 130dB SPL | | Power Requirements | 5 VDC, supplied by beltpack | | Output Impedance | 1kHz: 1000 ohms | | Output Connectors | TA4-female | | Pad | No | | Low Frequency Roll-Off | Low-Frequency Roll-Off | | Dimensions | Base: 2.2 x 4.6 x 6.9" (56 x 117 x 175mm) (HxWxD)
Gooseneck: 4.5" (114mm) | | Weight | 16.2 (458 g) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 20.5 x 6.0 x 5.0" |
