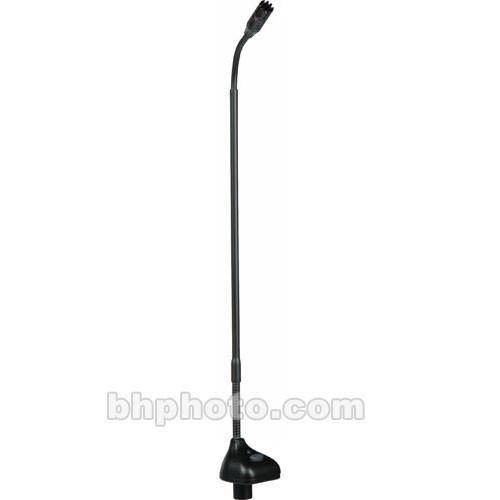

User Manual for Electro-Voice PolarChoice PC Plus-12 - Miniature Multi-Pattern Gooseneck Podium Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice PolarChoice PC Plus-12 - Miniature
- Product category: Gooseneck Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Gooseneck Microphones
|
User manual for the Electro-Voice PolarChoice PC Plus-12 - Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice PolarChoice podium microphones provide the flexibility and sonic quality needed to capture speech in any application. The PolarChoice series gooseneck microphones feature a dual capsule design that provides four user switchable polar patterns. Omnidirectional, cardioid, super-cardioid and hyper-cardioid are all selectable and provide the flexibility to perform in highly ambient environments or in applications where a generous pick up area is desired.The PC Plus-12 XLR mounted gooseneck microphone measures 12-inches (313.2mm) in length and features a standard 3-pin XLR male connection for quick connection to standard microphone inputs in mixers, amplifiers, podiums and desktop surfaces. The 3-pin XLR connection can be easily removed to accommodate flush mount installation whenever necessary. The PolarChoice series gooseneck microphones are at home in houses-of-worship, auditoriums, board rooms, conference halls, etc. - XLR Base / Flush Mount
- This PC Plus-12 gooseneck microphone features a 3-pin XLR male mount for quick connection to standard 3-pin XLR inputs.
- Switchable Polar Patterns
- The PolarChoice series gooseneck microphones feature a dual capsule design capable of omnidirectional, cardioid, super-cardioid and hyper-cardioid polar patterns.
- Low-Frequency Roll-Off
- The low-frequency roll-off filter eliminates unwanted low-frequency noise due to vibration, wind, proximity effect, etc.
UPC: 701001014361 In the Box Electro-Voice PolarChoice PC Plus-12 - Miniature Multi-Pattern Gooseneck Podium Microphone (Universal Base) (12") Windscreen Two-Piece Shock Mount with Shock Mount Adapter Flush Mount Parts Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PolarChoice PC Plus-12 - Miniature Multi-Pattern Gooseneck Podium Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PC Plus-12 Specs | Transducer | Dual Condenser, Back Electret | | Polar Pattern | Omnidirectional, Cardioid, Supercardioid, Hypercardioid | | Frequency Response | 50Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | < 26 dB SPL "A" weighted | | Maximum Input Sound Level | > 135dB SPL | | Power Requirements | Phantom, 12-52 VDC | | Output Impedance | 1kHz: 200 Ohms | | Output Connectors | 3-pin XLR Male | | Pad | No | | Low Frequency Roll-Off | Low-Frequency Roll-Off | | Dimensions | 12 x .58" (305 x 14.6mm) (Length x Head Diameter) | | Weight | 7.1 oz (201 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 27.0 x 3.4 x 3.0" |
