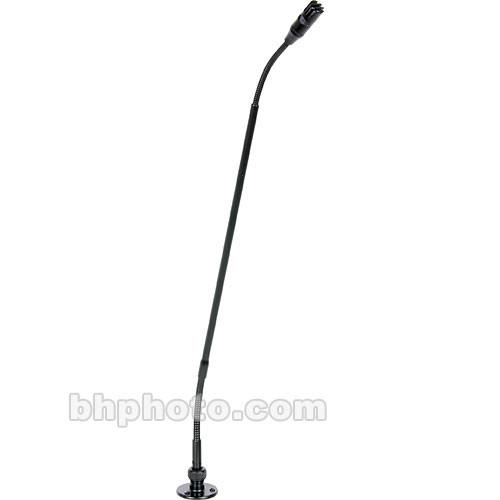

User Manual for Electro-Voice PolarChoice PC Plus-18 - Miniature Multi-Pattern Gooseneck Podium Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice PolarChoice PC Plus-18 - Miniature
- Product category: Gooseneck Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Gooseneck Microphones
|
User manual for the Electro-Voice PolarChoice PC Plus-18 - Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice PolarChoice podium microphones provide the flexibility and sonic quality needed to capture speech in any application. The PolarChoice series gooseneck microphones feature a dual capsule design that provides four user switchable polar patterns. Omnidirectional, cardioid, super-cardioid and hyper-cardioid are all selectable and provide the flexibility to perform in highly ambient environments or in applications where a generous pick up area is desired.The PC Plus-18 flush mounted gooseneck microphone measures 18-inches (457mm) in length and features a standard 5/8"-27 thread mount for adapting to standard microphone stands, the included mounting flange or the included shock mount and adapter. The external, cylindrical output stage / preamplifier is terminated with a standard 3-pin male XLR connection. The cable can be configured to exit at the bottom or side of the gooseneck enabling flexible installation into podiums.The PolarChoice series gooseneck microphones are at home in houses-of-worship, auditoriums, board rooms, conference halls, etc. - Flush Mount
- The PC Plus-18 gooseneck microphones feature a 5/8"-27 threaded mount for mounting onto standard microphone stands or included flange and shock mount hardware.
- Switchable Polar Patterns
- The PolarChoice series gooseneck microphones feature a dual capsule design capable of omnidirectional, cardioid, super-cardioid and hyper-cardioid polar patterns.
- Low-Frequency Roll-Off
- The low-frequency roll-off filter eliminates unwanted low-frequency noise due to vibration, wind, proximity effect, etc.
- Side or Bottom Cable Exit
- The attached cable can be easily configured for bottom or side exit.
- External Preamplifier
- The external cylindrical power supply / preamplifier provides the 3-pin XLR termination and provides phantom power to the capsule.
UPC: 701001014385 In the Box Electro-Voice PolarChoice PC Plus-18 - Miniature Multi-Pattern Gooseneck Podium Microphone (Flush Mount) (18") Windscreen Two-Piece Shock Mount with Shock Mount Adapter Mounting Clips for Electronics Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice PolarChoice PC Plus-18 - Miniature Multi-Pattern Gooseneck Podium Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice PC Plus-18 Specs | Transducer | Dual Condenser, Back Electret | | Polar Pattern | Omnidirectional, Cardioid, Supercardioid, Hypercardioid | | Frequency Response | 50Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | < 26 dB SPL "A" weighted | | Maximum Input Sound Level | > 135dB SPL | | Power Requirements | Phantom, 12-52 VDC | | Output Impedance | 1kHz: 200 Ohms | | Output Connectors | 3-pin XLR Male | | Pad | No | | Low Frequency Roll-Off | Low-Frequency Roll-Off | | Dimensions | 18 x .58" (457 x 14.6mm) (Length x Head Diameter) | | Weight | 7.1 oz (201 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 27.0 x 3.3 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
