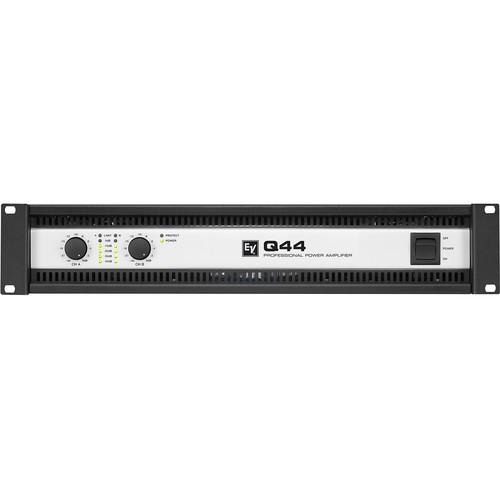

User Manual for Electro-Voice Q44-II 2 x 450W Professional Power Amplifier Click to enlarge the picture
Contents of the user manual for the Electro-Voice Q44-II 2 x 450W Professional
- Product category: Power Amplifiers Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Power Amplifiers
|
User manual for the Electro-Voice Q44-II 2 x 450W Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Provided by third party: Building on a legacy of power and performance, Q Series amps take Electro-Voice's unique amplifier philosophy to a high level of efficiency and value. The Q series achieves superb audio performance because it's designed for superior dynamic headroom and transient response, resulting in 30% greater output capability for short-duration signals. High-power Q Series models use sophisticated Class-H topology that dramatically reduces heat and cuts energy consumption by up to 50%, yielding racks that are easier to power and easier to cool. Smaller Q series models are based on the proven Class-AB designs of EV's reference-standard P series. All models incorporate dynamic limiting to prevent dangerous output clipping, as well as extensive protections against thermal damage and electrical malfunction. Combining Class-H innovation with the sonic excellence and robustness of its Precision series heritage, the compact, affordable Q series is the ideal amplifier line for all sizes of clubs, concerts, performance centers, and sports venues.
- Key Features
-
- Outstanding value and performance for club and mobile systems
- Dynamic headroom for all real-world applications
- Class-AB design
- XLR pass-though input connections
- Easy connection to bi-amped loudspeakers
- Switchable LPN filter for extra tonal fundamentals and "kick"
- Protective low-cut for systems without subwoofers
- Built-in dynamic limiters
- Three-stage front-to-rear fans
UPC: 800549164047 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice Q44-II 2 x 450W Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice Q44-II Specs | | | Audio Channels | Stereo | | Functions | Amplifier | | Audio Specifications | Amplifier - Response Bandwidth - 10 - 40000 Hz - SNR - 106 dB | | Amplifier Output Details | 270 Watt - 8 Ohm - at 1 kHz - THD 1.0% - 2 channels (main)
450 Watt - 4 Ohm - at 1 kHz - THD 1.0% - 2 channels (main)
650 Watt - 2 Ohm - at 1 kHz - THD 1.0% - 2 channels (main) | | Features | Thermal protection, cooling fan, short circuit protection, DC protection | | | | Connectors | Balanced audio input (XLR x 2) - rear
Balanced audio output (XLR x 2) - rear
2 x speakers output (Speakon) - rear | | | | Voltage Required | AC 120 V | | Power Consumption Operational | 550 Watt | | | | Width | 19 in | | Depth | 16.6 in | | Height | 3.5 in | | Weight | 27.78 lbs | | | | Package Weight | 39.55 lb | | Box Dimensions (LxWxH) | 25.5 x 22.0 x 7.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
