User Manual for Electro-Voice R300-E-C Headworn System Click to enlarge the picture
Contents of the user manual for the Electro-Voice R300-E-C Headworn System
- Product category: Wireless Systems Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Systems
 |
User manual for the Electro-Voice R300-E-C Headworn System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

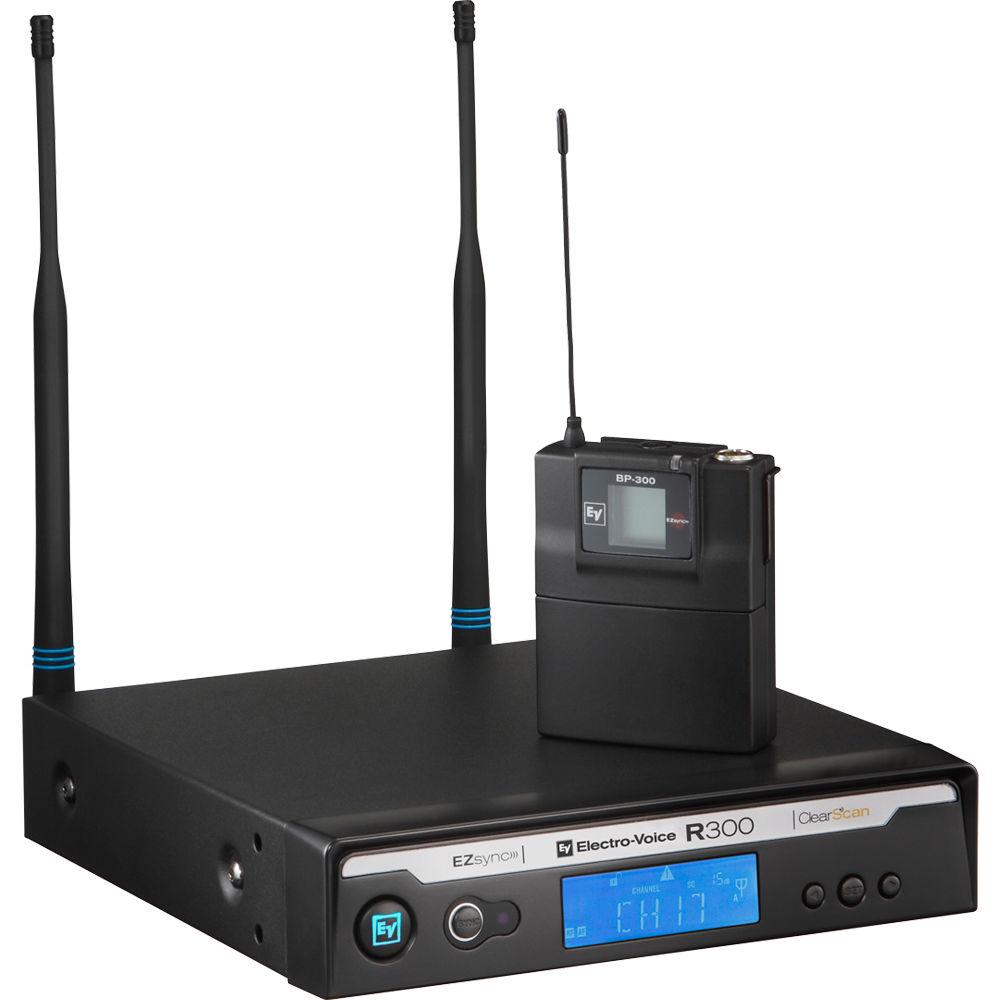

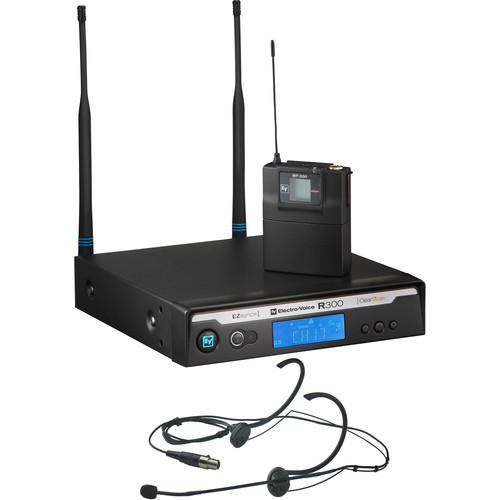

Product description The R300-E-C Headworn System from Electro-Voice includes R300 Wireless Microphone Receiver, BP-300 Wireless Beltpack Microphone Transmitter, and HM3 Omnidirectional Headworn Microphone. The Electro-Voice R300 Wireless Microphone Receiver operates in C band and features 32 frequency channels. The ClearScan feature provides single-touch frequency scanning for effortless searches of ideal operating frequencies. You can easily keep the transmitter and receiver in sync with the EZsync infrared channel transfer feature. The BP-300 Wireless Bodypack Microphone Transmitter is intended for use with the included Electro-Voice R300 true-antenna diversity receiver. The bodypack microphone transmitter features 32 user selectable frequency channels. Its TA4 connection is compatible with the ULM22 lavalier and HM-3 headworn microphones (HM-3 included). The BP-300 operates for up to 14 hours on a pair of AA alkaline batteries. The included Electro-Voice HM3 Omnidirectional Headworn Microphone provides hands-free speech and vocal operation with the Electro-Voice R300 wireless microphone system. - BP-300 Wireless Beltpack Microphone Transmitter - Band C (516-532 MHz) The band-C Electro-Voice BP-300 Wireless Bodypack Microphone Transmitter is intended for use with the Electro-Voice R300 true-antenna diversity receiver (not included). The bodypack microphone transmitter features 32 user selectable frequency channels and EZsync infrared channel syncing between the receiver and transmitter. Its TA4 connection is compatible with the ULM22 lavalier and HM-3 headworn microphones (sold separately).The BP-300 operates for up to 14 hours on a pair of AA alkaline batteries.
- For use with Electro-Voice R300 wireless microphone receiver (sold separately)
- Designed for club sound, performance & sports venues, and other applications
- EZsync - infrared channel transfer from receiver to transmitter for easy and error-free setup
- Rugged metal transmitters with backlit LCD display and battery gauge
- 14-hour battery life from two AA alkaline batteries
- 32 preset channels, with compatible groups of 8 channels for simultaneous use

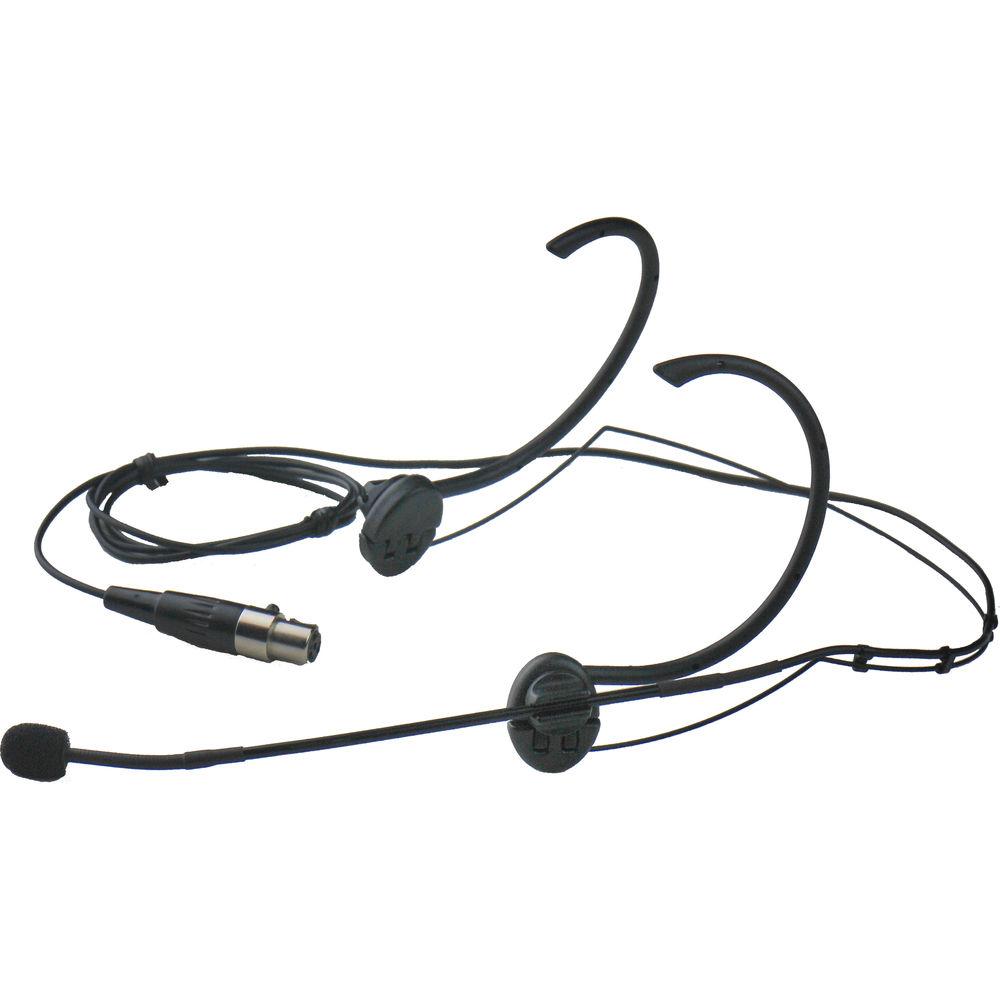

UPC: 800549780735 - HM3 Omnidirectional Headworn Microphone for R300 The Electro-Voice HM3 Omnidirectional Headworn Microphone provides hands-free speech and vocal operation with the Electro-Voice R300 wireless microphone system. The HM3 connects to the BP300 beltpack transmitter. UPC: 800549584821
- R300 Wireless Microphone System Receiver
In the Box Bundle Items R300 Wireless Microphone System Receiver berbutrsutafexuruzyffvsxw BP-300 Wireless Beltpack Microphone Transmitter - Band C (516-532 MHz) HM3 Omnidirectional Headworn Microphone for R300 Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice R300-E-C Headworn System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - R300 Wireless Microphone System Receiver
| | | Box Dimensions (LxWxH) | 15.7 x 12.0 x 2.7" | - BP-300 Wireless Beltpack Microphone Transmitter - Band C (516-532 MHz)
| Distortion | <1.0% (Typical 0.4%) | | Frequency Band | Band C (516-532 MHz) | | Dynamic Range | Greater than 95 dB | | Overall Frequency Response | 80 Hz - 18 kHz +/- 2 dB | | Signal-to-Noise Ratio | Greater than 100 dB | | # Of Channels | 32 Preset channels | | RF Sensitivity | Less than 1.0 uV | | Type of Input Connector | TA4 | | RF Output | 8 mW | | Battery Type/Approx. Life | Two AA Alkaline, 14 hours | | Mute Switch | On/Off, Mute | | | | Box Dimensions (LxWxH) | 11.5 x 4.9 x 2.9" | - HM3 Omnidirectional Headworn Microphone for R300
| | | Box Dimensions (LxWxH) | 4.7 x 3.9 x 0.6" |
