User Manual for Electro-Voice R300-HD Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Electro-Voice R300-HD Handheld Wireless Microphone System
- Product category: Wireless Systems Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Wireless Systems
 |
User manual for the Electro-Voice R300-HD Handheld Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|

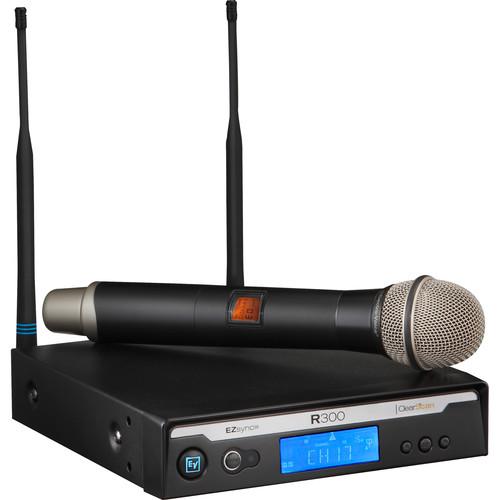

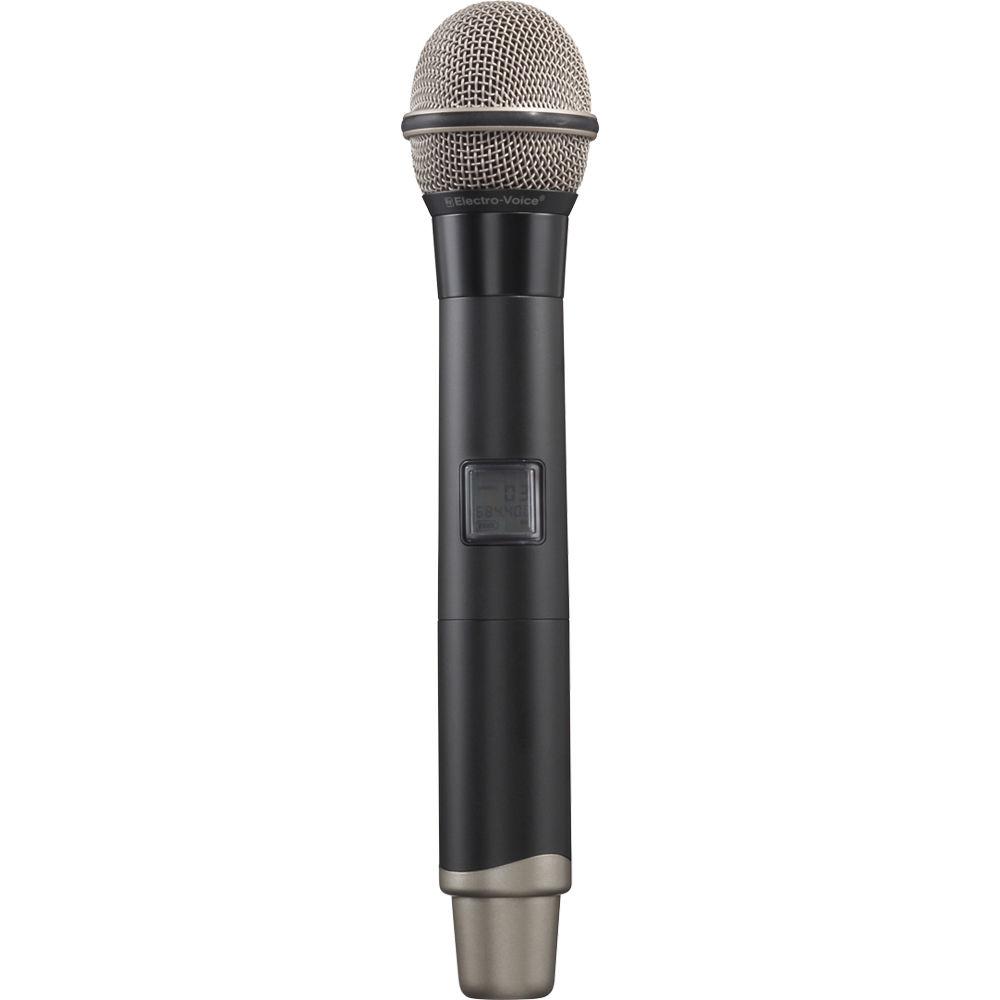

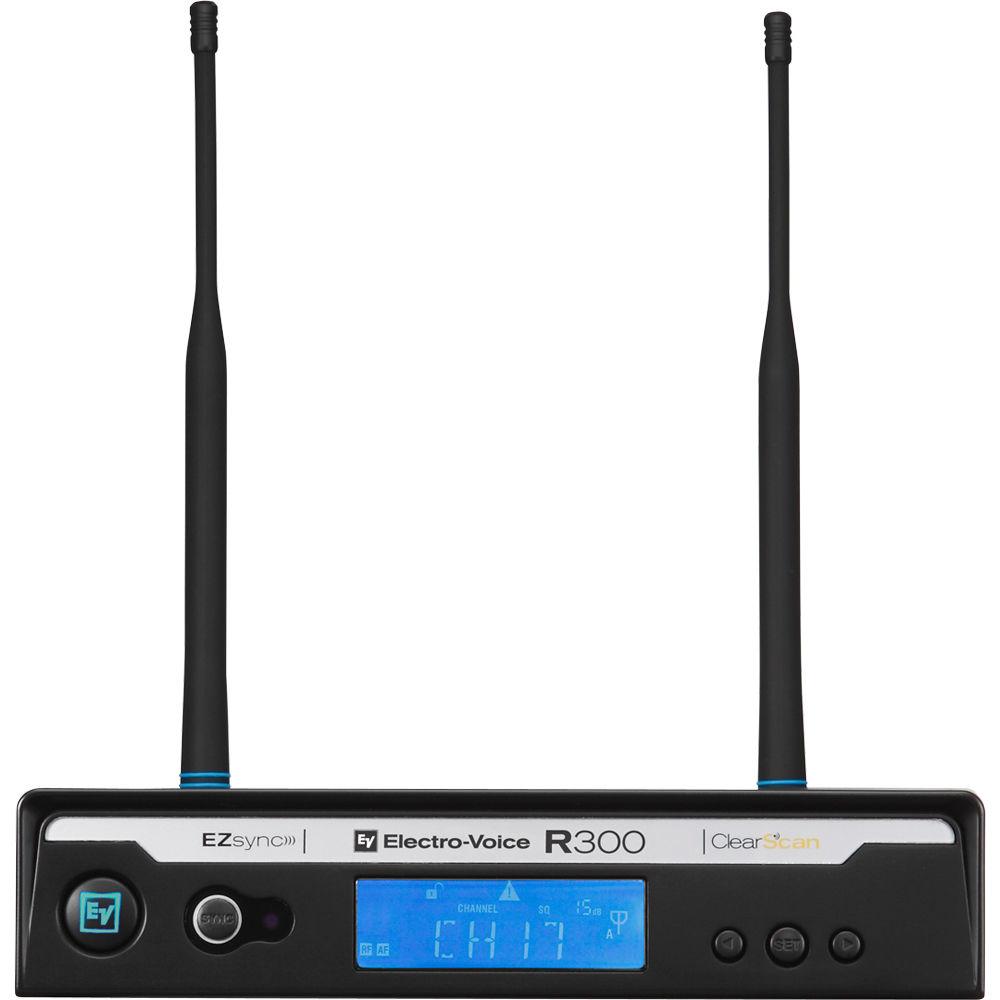

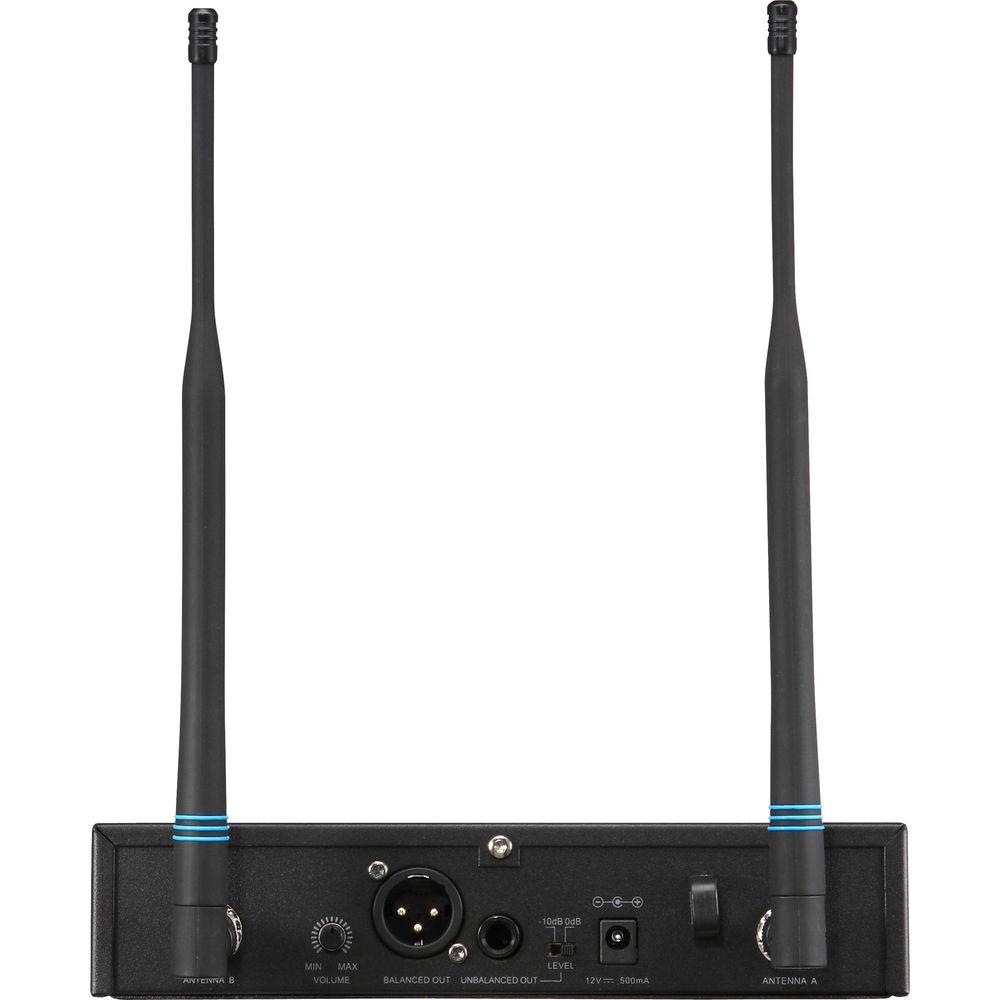

Product description The Electro-Voice R300-HD Handheld Wireless Microphone System is a cost-effective microphone system well suited for nightclubs, auditoriums, houses-of-worship, DJs and other applications. The R300-HD includes the R300 true-antenna diversity receiver and HT300 handheld microphone with PL22 cardioid, dynamic capsule. The system features 32 user selectable frequency channels and diversity reception for minimizing RF interference.The ClearScan feature provides single-touch frequency scanning for effortless searches of ideal operating frequencies. Easily keep the transmitter and receiver in sync with the EZsync infrared channel transfer feature. The R300 receiver features 1/4" phone and XLR outputs on the rear and the HT300 operates for up to 14 hours on a pair of AA alkaline batteries. - Designed for club sound, performance & sports venues, and other applications
- ClearScan - find the clearest channel available with the touch of one button
- EZsync - infrared channel transfer from receiver to transmitter for easy and error-free setup
- PL22 cardioid dynamic microphone element for crisp, clear vocals in any application
- Rugged metal transmitters with backlit LCD display and battery gauge
- 14-hour battery life from two AA alkaline batteries
- 32 preset channels, with compatible groups of 8 channels for simultaneous use
- Detachable half-wave receiver TNC antennas enable use with APD4+ antenna distribution system
- Metal receiver chassis with optional rack-mount ears and front-mount antenna cables
UPC: 800549780643 In the Box Electro-Voice R300-HD Handheld Wireless Microphone System (Band C: 516 to 532 MHz) R300 Receiver HT300 Handheld Transmitter & PL22 Capsule Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice R300-HD Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice F.01U.306.180 Specs | | | Frequency Band | C: 516 to 532 MHz | | Type of System | UHF Handheld | | Distortion | Less than 1.0, 0.4 typical % | | Dynamic Range | Greater than 95 dB | | Overall Frequency Response | 80 Hz - 18 kHz +/-2 dB | | Signal-to-Noise Ratio | Greater than 100 dB | | # Of Channels | 32 Preset channels | | RF Sensitivity | Less than 1.0 uV | | | | Type of Receiver | R300 | | Type of Outputs | 1/4 inch unbalanced, 3-pin XLR balanced | | Headphone Monitoring | No | | Power Requirements | 12 VDC, 500 mA (max) | | Diversity Circuitry | True Antenna | | Display | Back-lit LCD | | Antenna Type | Diversity | | | | Type of Transmitter | HT300 Handheld Transmitter | | Type of Input Connector | None | | Type of Microphone | PL22 Dynamic Capsule | | Polar Pattern | Cardioid | | RF Output | 8 mW | | Battery Type/Approx. Life | Two AA Alkaline, 14 hours | | Mute Switch | On/Off, Set, Up, Down, Sync | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 15.7 x 11.8 x 2.7" |
