Electro-Voice R300-L Lapel System with ULM18

Search your instruction manual in PDF to download

User Manual for Electro-Voice R300-L Lapel System with ULM18 Directional Microphone

Click to enlarge the picture
Electro-Voice R300-L Lapel System with ULM18 Directional Microphone Contents of the user manual for the Electro-Voice R300-L Lapel System with ULM18
  • Product category: Wireless Systems Electro-Voice
  • Brand: Electro-Voice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Electro-Voice Wireless Systems

Electro-Voice R300-L Lapel System with ULM18 Directional Microphone Electro-Voice R300-L Lapel System with ULM18 Directional Microphone
User manual for the Electro-Voice R300-L Lapel System with ULM18 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Electro-Voice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!



Product description

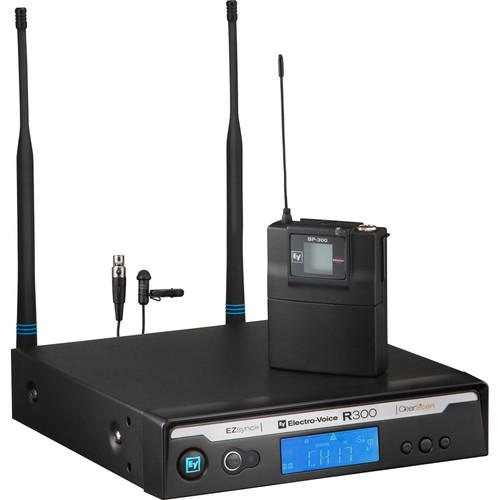

The R300-L Lapel System with ULM18 Directional Microphone (C-Band) from Electro-Voice is a UHF wireless bodypack system, suitable for applications where the convenience of a wireless lavalier microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. Included with the system, the ULM18 is a high-quality directional (cardioid) condenser lavalier microphone suitable for sound reinforcement or recording of voice, and allows users the convenience of a hands-free presentation or performance experience. The system supports a frequency band spread of 516 to 532 MHz.Useful for sound reinforcement applications, the ULM18 Microphone’s directional cardioid polar pattern reduces sound system feedback potential. The receiver's dual antenna diversity helps avoid signal dropouts, while its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with an optional rack mounting hardware.
    • ClearScan automatically finds the clearest channel
    • EZsync one-step channel setup
    • ULM18 Microphone directional lavalier microphone
    • 14-hour battery life from two AA alkaline
    • Rugged metal transmitter
    • Metal receiver chassis with optional rack mount
UPC: 800549780667 In the Box Electro-Voice R300-L Lapel System with ULM18 Directional Microphone (C-Band)

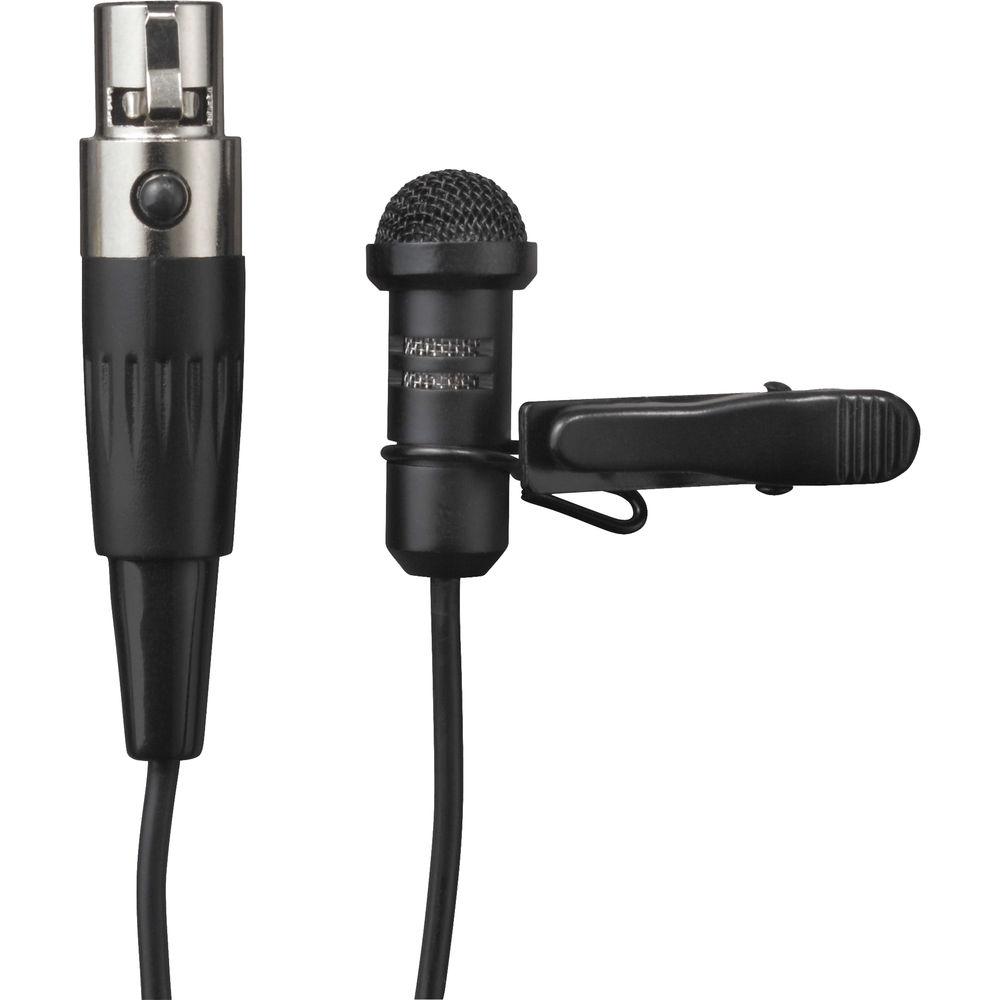

  • ULM18 Unidirectional Lavalier Microphone for R300
  • BP-300 Wireless Beltpack Microphone Transmitter - Band C (516-532 MHz)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Electro-Voice R300-L Lapel System with ULM18 Directional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Electro-Voice F.01U.306.182 Specs

    Antenna Flexible TNC 1/2 wave
    Audio Frequency Response 80 Hz to 18 kHz +/- 2 dB
    Output Balanced line level 10 to 100 mV
    Connector ¼" unbalanced, 3-pin XLR balanced
    Controls On/Off, set, up, down, sync
    Battery Life 14 hours with 2 x AA alkaline typical
    Distortion @ 1 kHz, 40 kHz deviation: Less than 1.0, 0.4 typical %
    Diversity True antenna
    Dynamic Range > 95 dB
    Element ULM18 directional microphone
    Number of Channels 32 per band, 8 simultaneous
    Operating Temperature Range 41 to 113°F (5 to 45°C)
    Power Requirement 12 to 16 VDC, 500 mA max
    Power Supply 12 VDC, 500 mA max
    Receiver Type Synthesized PLL
    RF Frequency Range 16 MHz
    RF Output 8 mW typical
    RF Sensitivity 12 dB SINAD: Less than 1.0 uV
    SNR > 100 dB
    Squelch Tone code plus amplitude
    Dimensions 1.72 x 7.8 x 8.0" / 43 x 206 x 210 mm (Receiver)
    3.3 x 2.6 x 0.89" / 84 x 66 x 23 mm (Bodypack)
    Weight Not specified by the manufacturer
    Package Weight 4.68 lb
    Box Dimensions (LxWxH) 15.7 x 11.9 x 2.7"
