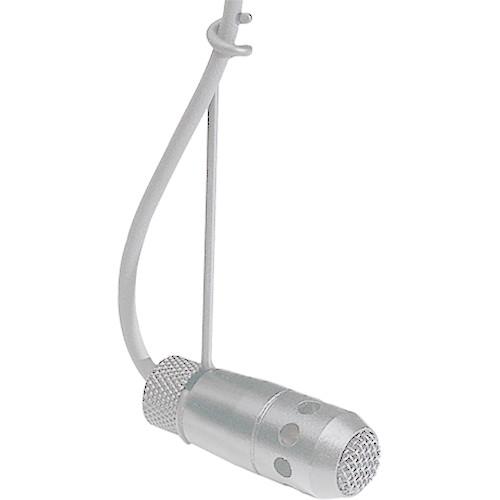

User Manual for Electro-Voice RE-90H - Hanging Choir Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE-90H - Hanging Choir Microphone
- Product category: Hanging Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Hanging Microphones
|
User manual for the Electro-Voice RE-90H - Hanging Choir Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice RE90 is a cardioid, electret condenser hanging microphone designed to capture audio for performances, houses of worship and anywhere a hanging microphone is required. The cardioid polar pattern is effective in minimizing signal at the off-axis sections of the microphone capsule. The pattern greatly reduces room noise, creating a higher tolerance for feed-back when placed near monitors and speakers.The RE90's flat, wide frequency response provides transparent, smooth signal reproduction of vocal and instrument signals. The sensitivity response enables detailed audio signal at close and distant proximities. The supplied steel wire hanger and holding nut enable horizontal and vertical adjustment for accurate microphone placement. The RE90 is powered via 9 to 52V phantom power source. - Cardioid Polar Pattern
- The cardioid polar pattern is effective in reduces signal at the off-axis sections of the capsule, minimizing ambient noise and feedback when using near monitors and speakers.
- Shielded Pre-Amplifier
- The preamplifier circuitry is shielded to prevent noise caused by electro-magnetic and electro-static activity.
- Wide Frequency and Sensitivity Response
- The wide frequency and sensitivity response of the RE90 enables accurate, smooth signal reproduction at close and distant proximities.
UPC: 701001013777 In the Box Electro-Voice RE-90H - Hanging Choir Microphone (White) 25-Foot (7.62m) Microphone Cable Steel Wire Hanger & Hoolding Nut 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE-90H - Hanging Choir Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE90H Specs | Transducer | Back Electret Condenser | | Polar Pattern | Cardioid | | Frequency Response | 75Hz to 15kHz | | Dynamic Range (Typical) | 95dB | | Signal-to-Noise Ratio | Equivalent Noise: 25dB SPL (A weighted) | | Maximum Input Sound Level | 120dB SPL (1% THD) | | Power Requirements | 9V to 52V DC Phantom Power | | Output Impedance | 200 ohms (1kHz) | | Output Connectors | 3-pin XLR Male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 1.45 x 0.4" (36.8 x 12.7mm) (Length x Diameter) | | Weight | 324 g (11.4 oz) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.842 x 5.197 x 2.677" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
