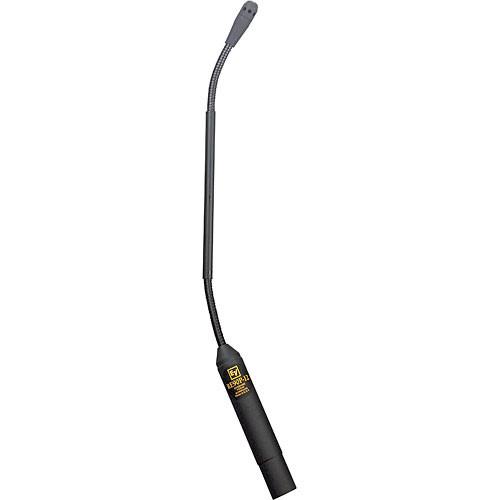

User Manual for Electro-Voice RE-90P12 - 12" Cardioid Gooseneck Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE-90P12 - 12" Cardioid Gooseneck
- Product category: Gooseneck Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Gooseneck Microphones
|
User manual for the Electro-Voice RE-90P12 - 12" Cardioid Gooseneck contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electrovoice RE90P-12 podium microphone is a phantom powered "back-electret" miniature condenser gooseneck microphone. The back-electret feature provides greater sensitivity, wider frequency response and superior immunity from handling noise than a diaphragm-electret microphone.
The RE90P-12 is mechanically designed for quick, easy mounting to a lectern, pulpit or podium equipped with a bulkhead female XLR-type 3-pin receptacle. For permanent installation, optional fixed (FMK flange-mount kit) and shock-mounted (CPSM shock-mount kit) accessories are also available.
The RE90P-12 was designed for sound reinforcement applications. The frequency response is tailored for full range sound reproduction with natural sound pick-up optimized for close-up use. The small diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone.
The electronics housing has a 3/4 inch diameter base terminated with an XLR-type 3-pin connector which allows the microphone to be plugged directly into an existing panel-mount XLR-type receptacle. The housing is machined steel for ruggedness and superior EMI/RFI attenuation.
The RE90P-12 gooseneck microphone was designed for sound reinforcement applications requiring high quality, wide response and a uniform polar pattern in a slender, adjustable gooseneck microphone. The RE90P-12 can be employed on lecterns, podiums, and on mixing consoles as a talk-back microphone or other applications which require a quick plug-in gooseneck microphone. - Acoustically designed for public address applications
- Reproduces sound naturally for either distant or close-up delivery
- Mounts quickly to any lecturn, pulpit or podium
- Quick-connect to female XLR-type, 3-pin receptacle
- Small Size - Unobtrusive for podium applications
- Frequency and cardioid polar response uniform across the range, for natural sound and high resistance to feedback
- All-metal construction substantially reduces noise from stray magnetic fields and RFI
- Low, 200-ohm output allows long cable runs
- Optional CPSM podium shock mount provides more than 15 dB of mechnical shock isolation at 200 Hz
NOTE: See SKU# "ELCPSM" UPC: 701001013784 In the Box Electro-Voice RE-90P12 - 12" Cardioid Gooseneck Condenser Microphone Windscreen Double Sided Tape Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE-90P12 - 12" Cardioid Gooseneck Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE90P-12 Specs | Transducer | Condenser, Back Electret | | Polar Pattern | Cardioid | | Frequency Response | 100 Hz - 15 kHz (5" or Greater)
70 Hz - 15 kHz (3" Distance) | | Dynamic Range (Typical) | 102 dB | | Signal-to-Noise Ratio | Not Specified by Manufacturer
Sensitivity, Open Circuit Voltage: 4.5 mV/pascal @ 1,000 Hz | | Maximum Input Sound Level | Not Specified by Manufacturer | | Power Requirements | 9-52v DC Phantom Power Supply | | Output Impedance | Measured at 1,000 Hz: (Works with all Low-Z Mic Inputs) | | Output Connectors | XLR-3M Type | | Case | No Case is Supplied | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Podiums, Lecturnes, Speech, etc. | | Dimensions | 21.95 x 0.75" (557.5 x 19mm) LxDiameter | | Weight | 8.6 oz. (244 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 29.25 x 2.5 x 1.75" |
