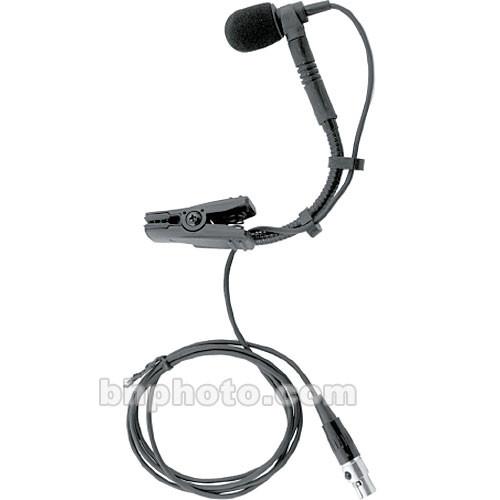

User Manual for Electro-Voice RE-920TX Cardioid Condenser Instrument Microphone with TA4-Female Connector Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE-920TX Cardioid Condenser Instrument Microphone
- Product category: Microphones for Wireless Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Microphones for Wireless
|
User manual for the Electro-Voice RE-920TX Cardioid Condenser Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description The Electro-Voice RE-920TX is a cardioid condenser instrument mounted microphone featuring a TA4-female connector, for use with Electro-Voice and Telex wireless belt-pack transmitters. The RE-920TX features a sensitivity and frequency response that excels in capturing brass and woodwind instruments. High sound pressure handling enables close positioning without distortion and noise due to signal overload. The RE-920TX features a miniature, unobtrusive cardioid capsule that minimizes off-axis noise while remaining inconspicuous. The adjustable gooseneck enables easy, stable positioning and soft nylon clips stabilize microphone cable, eliminating noise cause by abrupt movement and vibration. Foam windscreen is included and minimizes wind, sibilance and popping noise while protecting the element from moisture. - TA4-Female Connection for Wireless
- The RE-920TX instrument microphone is specifically designed for use with Electro-Voice and Telex wireless body-pack transmitters.
- High SPL Capability
- High headroom and SPL handling enable close capturing of brass and woodwind instruments without noise due to overload and distortion.
- Adjustable Gooseneck
- The quiet adjustable gooseneck enables quick and easy capsule positioning.
- Cable Stabilization
- Nylon clips are provided to stabilize the microphone cable, reducing noise caused by handling the instrument.
- Secure Mounting
- A rugged, secure mounting clip provides secure microphone mounting to the bells of brass and woodwind instruments.
- Cardioid Polar Pattern
- The cardioid polar pattern reduces off-axis noise and audio that can cause feed back and unwanted residual noise.
UPC: 701001030552 In the Box Electro-Voice RE-920TX Cardioid Condenser Instrument Microphone with TA4-Female Connector 2-Stage Windscreen Gig Bag 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE-920TX Cardioid Condenser Instrument Microphone with TA4-Female Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE920Tx Specs | Transducer | Self-Biased Condenser, Back Electret 2-Micron Thick, Gold Sputtered Diaphragm | | Polar Pattern | Cardioid | | Frequency Response | 80Hz to 18kHz | | Dynamic Range (Typical) | > 117dB | | Signal-to-Noise Ratio | 31dB SPL | | Maximum Input Sound Level | 148dB | | Power Requirements | 5 VDC | | Output Impedance | 1kHz, 1000 ohms | | Output Connectors | TA4-Female | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | .95 x .41" (10.5 x 24.1mm) (Length x Diameter) | | Weight | .81 oz (54 grams) mic only | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.9 x 5.3 x 2.7" |
