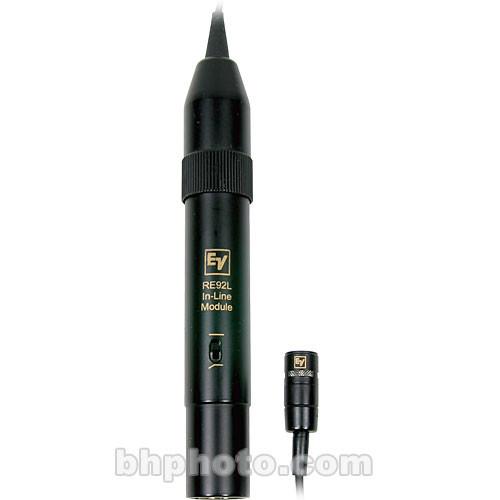

User Manual for Electro-Voice RE-92L - Miniature Cardioid Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Electro-Voice RE-92L - Miniature Cardioid Lavalier
- Product category: Lavalier Microphones Electro-Voice
- Brand: Electro-Voice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Electro-Voice Lavalier Microphones
|
User manual for the Electro-Voice RE-92L - Miniature Cardioid Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Electro-Voice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Electro-Voice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Electro-Voice product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More The Electro-Voice RE-92L is a professional miniature lavalier condenser microphone with a cardioid polar pattern. The low profile, unobtrusive design enables the microphone to be easily concealed in broadcast, video and performance scenarios. The condenser element features a cardioid polar pattern, which effectively rejects off-axis signal caused by ambiance or adjacent instruments, monitor speakers, talkers, etc.The RE-92's wide frequency response and high sensitivity result in warm, transparent signal reproduction with low noise and maximum gain. The attached power module features a low-frequency roll-off switch for minimizing low frequency noise and rumble. The module features a standard 3-pin XLR output for connection to standard microphone inputs. The RE-92 is more than suitable for use in performances, houses-of-worship, broadcasts, video shoots, and more. - Cardioid Polar Pattern
- The cardioid polar pattern effectively rejects off-axis audio and noise that can cause feedback.
- Low Profile Design
- The low-profile, miniature capsule is ideal for use on stage or on camera.
- Low Frequency Roll-Off
- The attached power module features a low frequency roll-off switch that eliminates low-frequency noise and rumble.
UPC: 701001018024 In the Box Electro-Voice RE-92L - Miniature Cardioid Lavalier Condenser Microphone Two Stage Windscreen Single Tie Clip Dual Tie Clip Belt Clip for Inline Module 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Electro-Voice RE-92L - Miniature Cardioid Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersElectro-Voice RE-92L Specs | Transducer | Self-Biased Condenser, bacl electret | | Polar Pattern | Cardioid | | Frequency Response | 40Hz to 20KHz | | Dynamic Range (Typical) | > 105dB | | Signal-to-Noise Ratio | 64dB | | Maximum Input Sound Level | not specified by manufacturer | | Power Requirements | 12 to 52 Volt Phantom Power | | Output Impedance | 1KHz: 250 ohms | | Output Connectors | 3-pin XLR from power module | | Pad | No | | Low Frequency Roll-Off | Yes | | Dimensions | Microphone: 0.948 x 0.412" (24.1 x 10.5mm) (Length x Diameter)
Inline Module: 5.350 x 0.875" (22.2 x 135.9mm) (Length x Diameter) | | Weight | 5.6 oz (160g) with inline module | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.9 x 5.1 x 2.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
